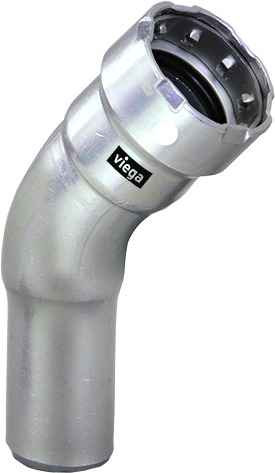

95850 Viega MegaPress 45° street elbow Smart Connect technology 304 stainless steel, 1-1/4'' x 1-1/4''
Manufacturer Resources
Product Specs
- Connection Type:
- P x FTG
- Material Type:
- 304 Stainless Steel
- Product Dimension:
- 1-1/4'' x 1-1/4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Street Elbows
- Product Type:
- 45° Street Elbow
- Product Length:
- 5.461"
- Product Height:
- 2.205"
- Product Weight:
- 1.003 lbs
- Product Width:
- 3.768"
- Product Material:
- 304 stainless steel
Viega 95850 – Frequently Asked Questions
1) What does P x FTG mean on the Viega 95850 MegaPress 45 degree elbow?
P x FTG means one end is a press socket and the other is a fitting (street) end. The press end slips over 1-1/4 inch pipe and is crimped with a press tool; the FTG end is sized like pipe OD so it inserts directly into another 1-1/4 inch press socket or fitting. That is what makes it a street elbow, and it lets you change direction 45 degrees without adding a short nipple between two fittings.
2) Is the Viega 95850 a stainless fitting or carbon steel, and what pipe should it go on?
It is 304 stainless steel, so it belongs on 1-1/4 inch stainless steel pipe runs. MegaPress carbon steel fittings and stainless fittings are separate lines; mixing a carbon fitting onto stainless pipe is not the intent of this part. Match the fitting body to the pipe material you are pressing.
3) Will the Viega 95850 work for a threaded connection?
No. Neither end is threaded. The 95850 has a press socket on one side and a fitting-end spigot on the other, so it cannot take an NPT male or female mate directly. To get to thread you need a MegaPress press-by-thread adapter or a press x FNPT/MNPT fitting in 1-1/4 inch, then land this elbow on that.
4) Do I need a special press jaw for a 1-1/4 inch MegaPress stainless fitting?
Yes. MegaPress fittings press with MegaPress jaws or rings sized to the fitting, and 1-1/4 inch is typically pressed with a ring and actuator rather than a small standard jaw. The 95850 is a 1-1/4 inch press connection, so set up your tool with the 1-1/4 inch MegaPress jaw or ring set before you get to the ceiling.
5) What is Smart Connect on this Viega elbow and what does it do for the installer?
Smart Connect is the sealing-element feature that lets an unpressed joint leak a small amount during pressure test, so an inspector or installer can spot a connection that was missed before the system is put into service. On a 45 degree street elbow buried in a rack of pipe, that is the practical value: you find the one joint you skipped at test, not after.
6) How much room do I need to fit the Viega 95850 45 degree elbow in a tight chase?
Plan around a fitting envelope of 5.461 x 3.768 x 2.205 inches. On top of the fitting itself you need clearance for the press ring and actuator to come in square on the socket, which is usually the real constraint in a chase or next to a joist, not the elbow body. It weighs 1.003 lbs, so no additional support is needed for the fitting alone.
7) Is the Viega MegaPress 95850 made in the USA?
It is made in Germany. For procurement packages with domestic-content requirements, that country of origin is what you would report for this fitting.
