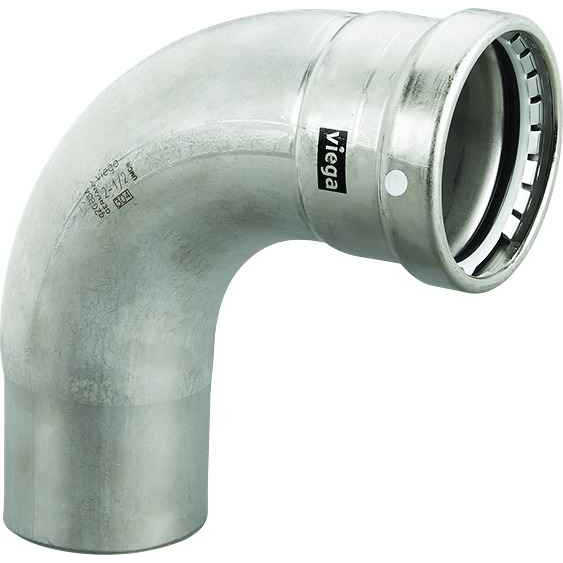

98395 Viega MegaPress 90° street elbow Smart Connect technology 316 stainless steel, 3'' x 3''
Manufacturer Resources
Product Specs
- Connection Type:
- FTG x P
- Country Of Origin:
- Made in Germany
- Material Type:
- 316 Stainless Steel
- Product Dimension:
- 3'' x 3''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Elbows
- Product Type:
- Elbow
- Product Length:
- 8.902"
- Product Height:
- 2.894"
- Product Weight:
- 4.479 lbs
- Product Width:
- 8.839"
- Product Material:
- 316 stainless steel
Viega 98395 – Frequently Asked Questions
1) What size pipe does the Viega 98395 90 degree street elbow take?
3 inch by 3 inch. Both ends are 3 inch, one as a press socket and one as a fitting end that inserts into another MegaPress socket.
2) How much clearance do I need to install the Viega 98395 3 inch press elbow?
The fitting itself measures 8.902 inches long, 8.839 inches wide and 2.894 inches high, so plan the pocket around that before you add room to get the press jaw and actuator around the socket. In a tight chase or close to a wall, measure the jaw swing as well as the fitting.
3) What is Smart Connect on a Viega MegaPress fitting?
Smart Connect is Viega's unpressed-connection feature: if a joint is left unpressed during a pressure test, it leaks noticeably so you can find it before the system is closed up. On a 3 inch line that is the difference between catching a missed press on the test and chasing it after drywall.
4) Do I need a street elbow or a regular 90 for my 3 inch press run?
Use the street version (FTG x P, like the Viega 98395) when you are coming straight off another fitting's press socket and want the turn right there. If you are joining two lengths of pipe, a standard press by press 90 is the one you want instead, since a street elbow's fitting end will not accept pipe.
