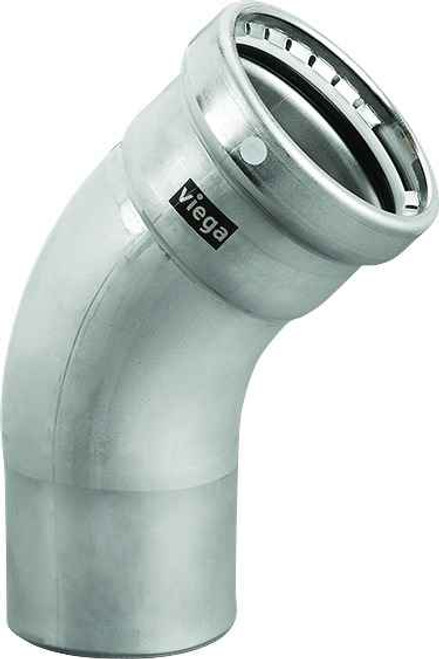

90550 Viega MegaPress 45° street elbow Smart Connect technology 316 stainless steel, 3'' x 3''
Manufacturer Resources
Product Specs
- Connection Type:
- P x FTG
- Material Type:
- 316 Stainless Steel
- Product Dimension:
- 3'' x 3''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Street Elbows
- Product Type:
- 45° Street Elbow
- Product Length:
- 8.843"
- Product Height:
- 4.181"
- Product Weight:
- 3.284 lbs
- Product Width:
- 6.37"
- Product Material:
- 316 stainless steel
Viega 90550 – Frequently Asked Questions
1) What does P x FTG mean on the Viega 90550 MegaPress 45 degree elbow?
P x FTG means one end is a press socket that accepts 3 inch pipe, and the other end is a fitting-end (street) that is sized to slip into another 3 inch press socket or fitting. That is what makes it a street elbow: you get a 45 degree change of direction without adding a separate coupling. Both sides are 3 inch, so you are not changing size through the turn.
2) Is the Viega 90550 press elbow stainless or carbon steel, and what pipe should it go on?
It is 316 stainless steel, the MegaPress stainless version of the fitting rather than the carbon steel one. Match it to stainless pipe systems; if your run is black iron or carbon steel schedule pipe, you want the carbon steel MegaPress elbow instead, not this one.
3) What is Smart Connect on the Viega MegaPress 90550 elbow and why does it matter on a punch list?
Smart Connect is Viega's unpressed-connection feature built into the sealing element. An un-pressed joint will weep during pressure testing instead of holding, so the inspector or the installer finds the missed press before the ceiling closes up. On a 3 inch stainless run with a lot of fittings, that is the difference between finding one bad joint at test and chasing it after drywall.
4) How much space does a 3 inch MegaPress 45 degree street elbow take up in a tight ceiling?
Plan on roughly 8.843 by 6.37 by 4.181 inches overall for the 90550, and remember a press tool with a 3 inch jaw or ring needs swing clearance around the socket on top of that. In a crowded chase, press the 3 inch socket end on the bench or on the ground where you can and bring the street end up to the existing fitting.
5) Do I need anything besides the Viega 90550 elbow to make the joint?
The fitting ships with its sealing element in place, so no separate gasket or solder is bought. You do need a press tool with the correct 3 inch MegaPress jaw or ring, a deburring tool and a depth mark on the pipe. There is no thread on either end, so no dope or tape.
