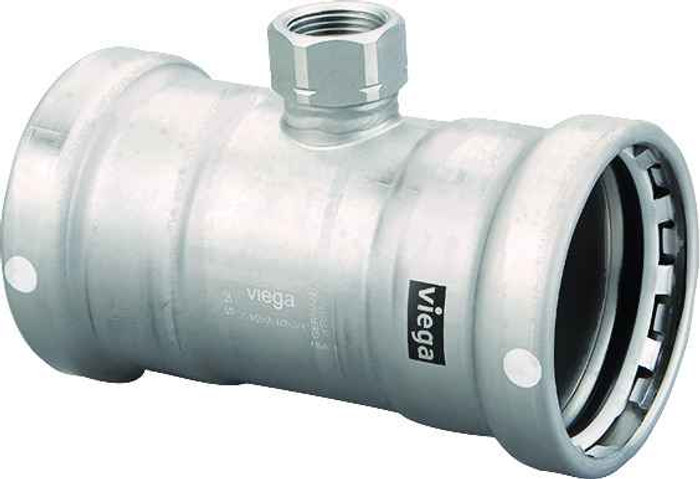

98420 Viega MegaPress tee Smart Connect technology 316 stainless steel, 2-1/2'' x 2-1/2'' x 3/4''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x FPT
- Material Type:
- 316 Stainless Steel
- Product Dimension:
- 2-1/2'' x 2-1/2'' x 3/4''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 6.299"
- Product Height:
- 3.543"
- Product Weight:
- 2.314 lbs
- Product Width:
- 4.331"
- Product Material:
- 316 stainless steel
Viega 98420 – Frequently Asked Questions
1) What are the three connections on the Viega MegaPress 98420 tee?
The 98420 is a reducing tee sized 2-1/2 inch x 2-1/2 inch x 3/4 inch, with press connections on the two 2-1/2 inch run ends and a female pipe thread (FPT) on the 3/4 inch branch. So the run presses onto pipe and the branch takes a male-threaded fitting, nipple, gauge, sensor or drain.
2) Is the Viega 98420 MegaPress tee stainless or carbon steel?
It is 316 stainless steel, the higher-chromium/molybdenum grade used where corrosion resistance matters. That puts it in the MegaPressS family rather than the carbon steel MegaPress line, so it should be matched with stainless fittings and the correct stainless jaws, not mixed with carbon steel press fittings on the same system.
3) What does Smart Connect mean on this Viega press tee, and why does it matter at inspection?
Smart Connect is a feature in the sealing element that lets an unpressed connection leak visibly during pressure testing, so an installer finds a missed joint before the system is closed in. On a 2-1/2 inch tee with two press ends, that is two joints per fitting you want confirmed, and the 3/4 inch FPT branch is a convenient point to tie in a test gauge.
4) What is the exact part number and weight for the Viega 2-1/2 x 2-1/2 x 3/4 stainless press tee?
Viega part number 98420, a MegaPress 316 stainless tee weighing 2.314 lbs, made in Germany. Order by 98420 to get the press x press x FPT configuration rather than an all-press tee of the same nominal sizes.
