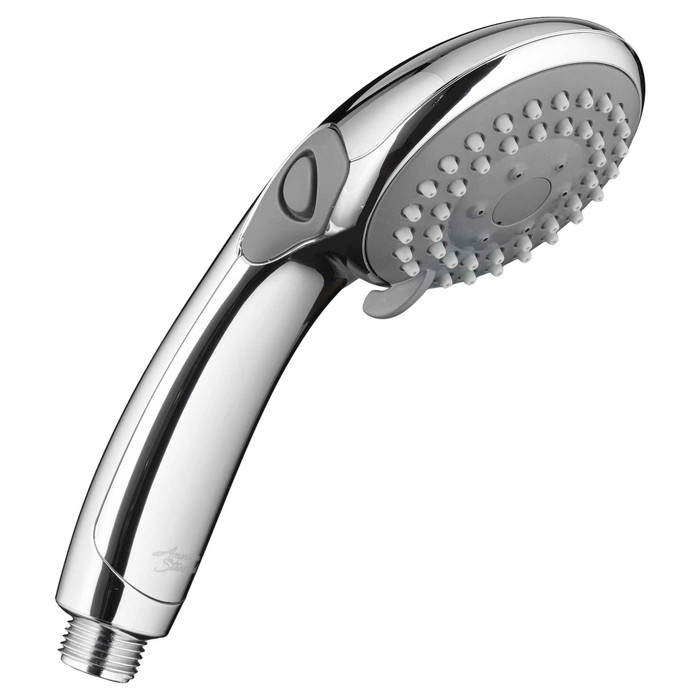

American Standard 1.5 gpm/5.7 Lpf 3-Function Hand Shower With Pause Feature - AMS-1660766

American Standard 1.5 gpm/5.7 Lpf 3-Function Hand Shower With Pause Feature - AMS-1660766

(No reviews yet) Write a Review

Model: 1660766.002

In Stock (leaves warehouse same day if ordered before 3pm ET)

$101.99
$58.39
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
1.5 gpm/5.7 Lpf 3-Function Hand Shower With Pause Feature
  • Pause feature: Non-positive shut-off button on handle reduces flow to a trickle to meet ADA requirement
  • Pressure-compensating flow control device
  • Easy clean spray nozzles: Allows for easy cleaning of lime and calcium build up
  • Includes check valve
  • 1.5 gpm/5.7 Lpm maximum flow rate

Manufacturer Resources

Product Specs

Product Type:
Hand Shower
Product Group:
Washroom/Bath
Product Subgroup:
Handshowers
Department:
Plumbing

American Standard 1660766.002 – Frequently Asked Questions

1) Does the American Standard 1660766 hand shower meet the 1.5 gpm low-flow requirement for a water-conserving spec?
Maximum flow rate on the 1660766 hand shower is 1.5 gpm (5.7 Lpm), and it uses a pressure-compensating flow control device so the rate holds up rather than surging on high-pressure lines. That matters for multi-family and hospitality retrofits where every fixture on the floor has to land at or under 1.5 gpm.
2) What does the pause button on this American Standard hand shower actually do, and does it shut the water off?
It is a non-positive shut-off button on the handle. Press it and flow drops to a trickle, it does not fully close the water. That is deliberate: the trickle keeps the mixed temperature stable and it is what satisfies the ADA requirement for a pause control. Plan on the valve still being the real on/off.
3) Can I use this hand shower on an ADA accessible shower or tub in a hotel or care facility?
The pause control on the 1660766 is specifically the non-positive shut-off that meets the ADA requirement, which is the piece most handhelds miss. The rest of the accessible assembly, hose length, slide bar height, and mounting range, comes from the bracket and hose you pair it with, not from the wand.
4) Do I need to add a separate check valve or vacuum breaker with this hand shower?
A check valve is built into the 1660766 hand shower, so there is no separate backflow check to buy for the handheld itself. Anything else on the opening (tub spout diverter, supply elbow, hose) still follows whatever your local plumbing code calls for.
5) What finishes does the American Standard 1660766 hand shower come in for matching the rest of a bathroom?
Two finishes: polished chrome, ordered as 1660766.002, and brushed nickel, ordered as 1660766.295. If you are standardizing a building, order by that suffix, it is the only thing separating the two part numbers.
6) How many spray settings does this American Standard handheld have, and are the nozzles cleanable in hard water?
Three spray functions plus the pause. The nozzles are the easy-clean type, so lime and calcium scale wipes off the face with a thumb instead of requiring a soak or a nozzle replacement. That is the practical reason to pick it for well water or hard municipal water properties where maintenance is rubbing out clogged sprays every few months.
7) Is this American Standard part a complete hand shower kit or just the wand?
The 1660766 is the hand shower itself, the handheld wand with the three spray functions, the pause button, the flow control and the check valve. Hose, wall bracket or slide bar, and the supply elbow or diverter are separate items, so confirm what is already on the wall before you order.
