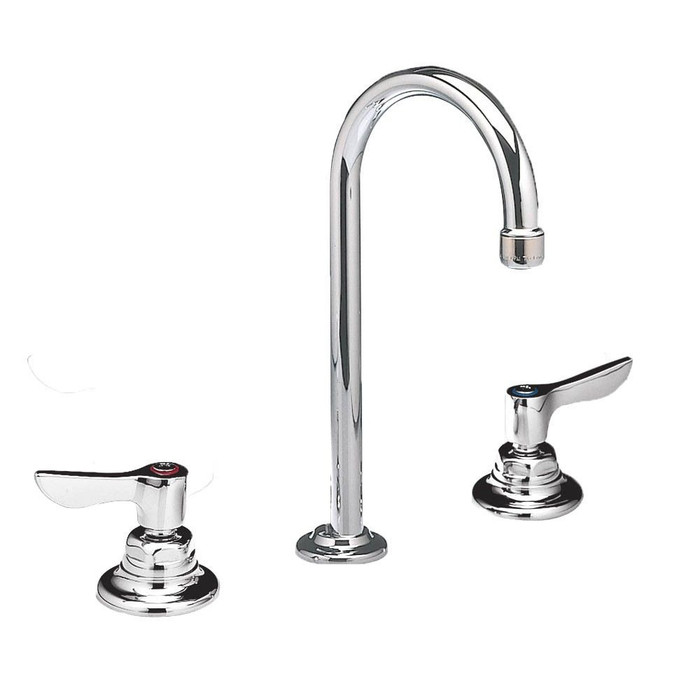

Monterrey 8-Inch Widespread Gooseneck Faucet With Lever Handles 0.5 gpm/1.9 Lpm
- Field-convertible rigid/swivel gooseneck spout with 5" (127 mm) reach
- Cast brass valve bodies with 8" (203 mm) rigid copper connections
- 1/2" (13 mm) male threaded inlet shanks with brass coupling nuts
- Washerless ceramic disc valves assure drip-free performance
- Vandal-resistant lever handles with red and blue indicators
- 0.5 gpm/1.9 Lpm pressure-compensating VR multi-laminar spray
Manufacturer Resources
Spec Sheet
Product Specs
- Product Type:
- Gooseneck Faucet
- Product Group:
- Washroom/Bath Accessories
- Product Subgroup:
- Parts and Accessories
- Department:
- Plumbing
- Parts and Accessories Type:
- Faucet
- Application:
- Faucet
- Product Color:
- Chrome
- Country of Origin:
- Mexico
American Standard 6540145.002 – Frequently Asked Questions
1) Will the American Standard Monterrey 6540145 gooseneck faucet fit a standard 8-inch widespread three-hole sink?
Yes. The Monterrey gooseneck is an 8 inch widespread faucet, built with cast brass valve bodies joined by 8 inch (203 mm) rigid copper connections, so it drops into the usual three-hole 8 inch center-to-center deck prep with the spout in the middle hole and a handle in each outer hole.
2) What supply connections do I need for the Monterrey widespread gooseneck faucet?
The shanks are 1/2 inch (13 mm) male threaded inlets and brass coupling nuts are supplied. You connect your supply stops to those shanks; risers, stops and the drain assembly are separate items.
3) How far does the gooseneck spout reach over the bowl, and does it swivel?
Reach is 5 inches (127 mm). The gooseneck is field-convertible, so the installer can set it up rigid or as a swivel spout depending on whether the sink needs the spout to move aside.
4) Is 0.5 gpm enough flow for a commercial restroom lavatory?
For handwashing, yes. The Monterrey delivers 0.5 gpm/1.9 Lpm through a pressure-compensating vandal-resistant multi-laminar spray, which holds the same flow as building pressure varies and gives a soft, non-splashing stream at the bowl. It is a lavatory handwash faucet, not a fill faucet, so if you need to fill buckets or mop sinks pick a higher flow fitting instead.
5) Will these handles hold up in a public restroom, and can users tell hot from cold?
The lever handles are vandal-resistant and carry red and blue indicators for hot and cold, which is what you want in a school, park or transit restroom where the fitting gets abused and users are unfamiliar with it.
6) Why do the Monterrey faucets keep dripping less than the old compression fittings we are replacing?
This one uses washerless ceramic disc valve cartridges rather than rubber washers and seats, so there is no washer to wear out and cause the steady drip that compression stems develop. For a property manager standardizing across a building, that is the main maintenance difference.
7) What finish does the American Standard 6540145 Monterrey faucet come in?
Chrome, ordered as part number 6540145.002. That is the single finish offered on this model, which keeps it consistent with typical commercial lavatory trim and grab bars already in most facilities.
8) Are the levers on this faucet suitable where users cannot grip a knob?
The Monterrey uses lever handles rather than knobs or cross handles, so they can be operated with a closed fist, forearm or elbow. That is the handle style specifiers generally call for on public lavatories.
