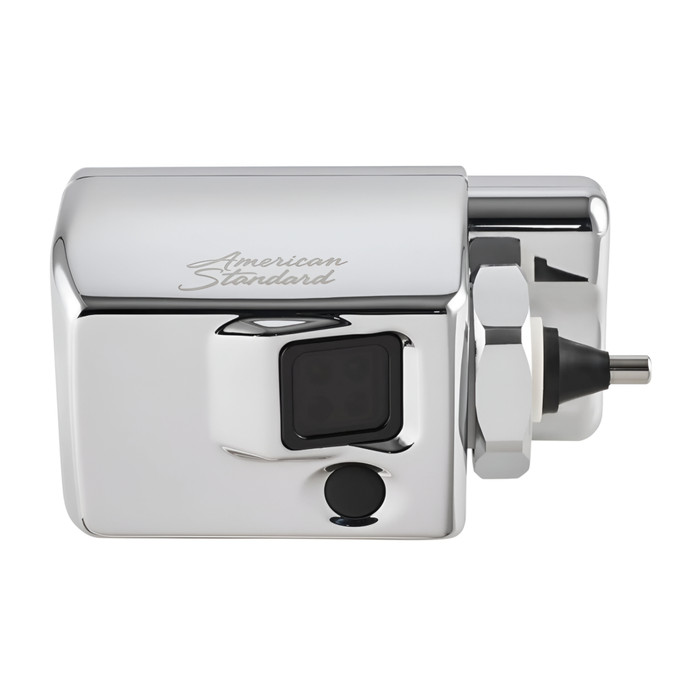

Sensor-Operated Side-Mount Retrofit for Diaphragm Flush Valve's
- Includes 4 C-sized alkaline batteries
- For American Standard, Sloan & Zurn diaphragm flush valves
- Easily retrofit manual valves to automatic operation to limit the spread of germs
- Installs easily without needing to shut off water
Manufacturer Resources
Spec Sheet
Product Specs
- Product Group:
- Washroom/Bath Accessories
- Product Subgroup:
- Parts and Accessories
- Product Type:
- Side Mount Retrofit
- Department:
- Plumbing
- Parts and Accessories Type:
- Mounting Hardware
- Application:
- Toilet
- Product Color:
- Chrome
- Country of Origin:
- Taiwan
American Standard SMGODIA.002 – Frequently Asked Questions
1) Will this American Standard sensor retrofit work on Sloan or Zurn flush valves, or only American Standard?
The SMGODIA side-mount retrofit is made to fit American Standard, Sloan and Zurn diaphragm flush valves, so you are not limited to American Standard valves. The one thing that matters is the valve type: it is for diaphragm valves. If the valve on the wall is a piston type, this is not the right retrofit.
2) Do I have to shut off the water to install a sensor retrofit on an existing flushometer?
No. The SMGODIA mounts to the side of the existing diaphragm flushometer and installs without shutting off the water supply, which is why it suits occupied restrooms where you cannot take a whole bank of fixtures out of service. The manual valve stays in place and becomes automatic.
3) Is this sensor flush kit hardwired or battery powered?
Battery powered, and the batteries come with it: four C-size alkaline cells are included in the box. No transformer, no conduit run, no electrician, which is the usual reason facilities pick a side-mount retrofit over a hardwired sensor valve.
4) Can I use this on a urinal, or is it for toilets only?
The application for this side-mount retrofit is listed as toilet, so specify it for water closet flushometers. For urinals, look for a sensor retrofit rated for urinal flush valves instead.
5) Should I buy a sensor retrofit kit or just replace the whole flushometer with a sensor valve?
A side-mount retrofit like the SMGODIA keeps the existing diaphragm flushometer and adds automatic operation to it, so the rough-in, the supply stop and the vacuum breaker all stay untouched and the work is quick enough to do restroom by restroom. Replacing the valve outright makes sense when the existing body is worn out or is a piston valve this kit does not cover. If the valve is sound and you only want hands-free flushing to cut touch points, the retrofit is the smaller job.
6) Is this a complete kit or do I need extra mounting hardware?
It ships as a mounting-hardware kit with the four C batteries included, so the sensor assembly and its mounting parts come together. What you supply is the existing diaphragm flushometer it bolts to.
7) What finish does the American Standard SMGODIA retrofit come in?
Chrome only, ordered as SMGODIA.002. That matches the polished chrome finish on most commercial flushometers, so a mixed look is unlikely when you standardize a building on it.
