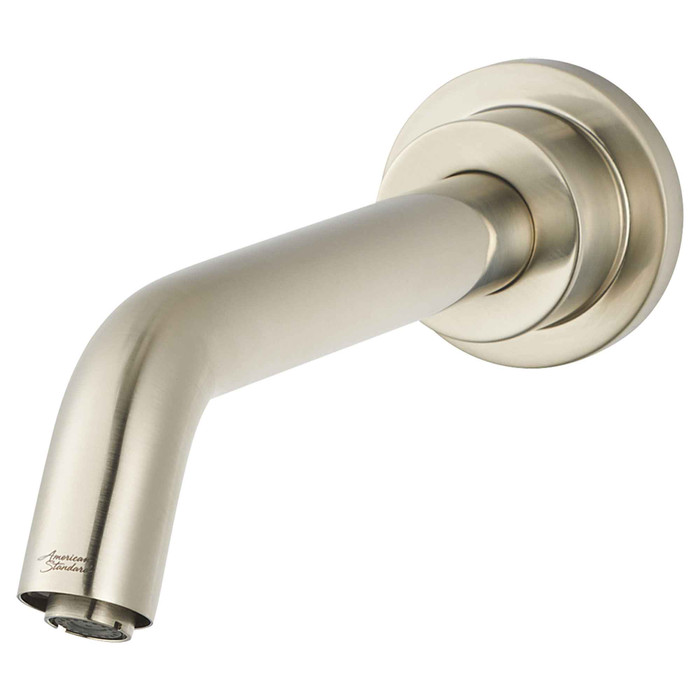

American Standard Serin Touchless Wall-Mount Trim, Base Model, 0.5 gpm/1.9 Lpm - AMS-T06B315

American Standard Serin Touchless Wall-Mount Trim, Base Model, 0.5 gpm/1.9 Lpm - AMS-T06B315

(No reviews yet) Write a Review

Model: T06B315.002

In Stock (leaves warehouse same day if ordered before 3pm ET)

$345.37
$331.51
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Serin Touchless Wall-Mount Trim, Base Model, 0.5 gpm/1.9 Lpm
  • SIMPLIFIED MODULAR PLATFORM: Choose faucet style, control box with solenoid or thermostatic mixing valve, and choice of power supply to create the precise combination for every installation and make ordering easy. Each component is sold separately.
  • DEPENDABLE ACTIVATION: Sensor located in the tip of the spout detects hand motion to turn water on and off
  • EASY REACH ADJUSTMENT: Can be adjusted from 6-in. to 9-in. from wall to outlet
  • AUTO PURGE: Faucet can be programmed to open at a pre-determined time after last use to purge the faucet and water lines of stagnant water
  • AUTO SHUT-OFF: Safety timer turns faucet off after 55 seconds to avoid overflow and water waste
  • COMPATIBILITY CHOICES: Choose solenoid or mixing valve control box, and 5 power options

Manufacturer Resources

Product Specs

Product Group:
Commercial
Product Subgroup:
Faucets
Product Type:
Wall-Mount Trim
Department:
Plumbing

American Standard T06B315.002 – Frequently Asked Questions

1) Does the American Standard Serin touchless wall-mount trim come with everything needed to run water, or do I have to order more parts?
The trim is only the spout and sensor half of the faucet. Serin touchless is a modular platform: you order the faucet style, then a control box (solenoid or thermostatic mixing valve), then a power supply, and each of those is a separate line item. Ordering the T06B315 alone leaves you without the valve and power to operate it.
2) How far does the Serin touchless wall-mount spout reach out from the wall?
Reach is adjustable from 6 inches to 9 inches, wall to outlet. That adjustment is how you dial in the stream over the basin when the rough-in sits further back or the lavatory is deeper than planned, so you are not locked to one projection at install.
3) Can I get temperature control with this, or is it cold water only?
Temperature handling lives in the control box, not the trim. Pair the spout with the solenoid control box if the temperature is set elsewhere (a separate mixing valve or a single tempered supply), or with the thermostatic mixing valve control box if you want the faucet assembly to blend hot and cold itself. Same spout either way.
4) What flow rate does this touchless wall-mount lav faucet trim run at?
0.5 gpm (1.9 Lpm). That is the low-flow rate commonly specified for commercial restroom lavatories where water use is being held down across a lot of fixtures.
5) Where is the sensor on the Serin touchless wall-mount faucet, and does it need a separate sensor plate?
The sensor sits in the tip of the spout and reads hand motion to start and stop the water. There is no separate wall sensor eye to mount or align, which keeps the wall penetration to the spout itself.
6) Will this faucet stay running if someone leaves something in front of the sensor?
No. A safety timer shuts the faucet off after 55 seconds of continuous run, which is there to stop overflow and wasted water in a public restroom where a basin gets blocked or an object is left under the spout.
7) We have restrooms that sit unused for weeks. Can this faucet flush its own lines?
Yes, it has an auto purge function. You program it to open a set interval after the last use so the faucet and the supply lines clear out stagnant water. That is the feature schools, hotels and seasonal buildings ask about when wings go offline between terms or seasons.
8) Does the Serin touchless faucet have to be hardwired?
Power is a separate choice on the order, with five power options offered on the Serin touchless platform. The spout trim itself does not dictate it, so you can spec the power supply that suits the building, whether that is line power at the restroom or a battery-based option where there is no circuit at the lav.
9) What finishes does the American Standard Serin touchless wall-mount trim come in?
Two: polished chrome (T06B315.002) and brushed nickel (T06B315.295). For a facility standardizing restrooms, chrome is the usual match to existing commercial lav trim and brushed nickel is the option when the rest of the package is already nickel.
