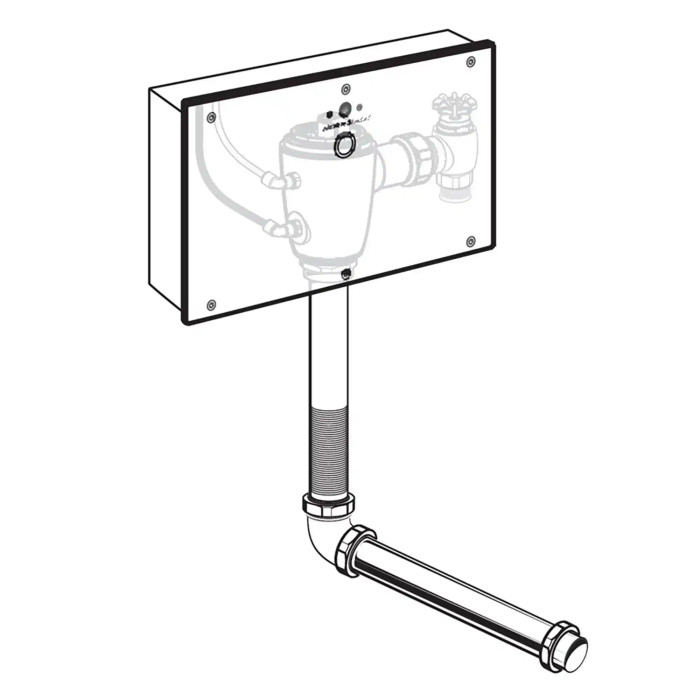

American Standard Ultima Selectronic Concealed Toilet Flush Valve with Wall Box, Base Model, Piston-Type, 1.6 gpf/6.0 Lpf - AMS-606B362

American Standard Ultima Selectronic Concealed Toilet Flush Valve with Wall Box, Base Model, Piston-Type, 1.6 gpf/6.0 Lpf - AMS-606B362

(No reviews yet) Write a Review

Model: 606B362.007
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$882.66
$832.66
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Ultima Selectronic Concealed Toilet Flush Valve with Wall Box, Base Model, Piston-Type, 1.6 gpf/6.0 Lpf
  • For flushometer bowls with 1-1/2" (38 mm) back spud
  • POWER KIT MUST BE PURCHASED SEPARATELY
  • FOR INSTALLATIONS WITH FRONT ACCESS
  • Includes Wall Box with Vandal-Resistant Brushed S.S. Cover
  • Touchless operation limits the spread of germs
  • Exclusive DynaClean self-cleaning wiper spring technology
  • Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
  • Fully mechanical manual override can operate without power
  • Proprietary brass alloy resists dezincification
  • 1.6 gpf/6.0 Lpf

Manufacturer Resources

Product Specs

Product Type:
Flush Valve
Product Group:
Commercial
Product Subgroup:
Parts and Accessories
Family:
SELECTRONIC
Luxury/Non Luxury:
Non Luxury
Residential Commercial:
Commercial
Product Length:
19.875
Product Height:
8.31
Product Weight:
20.018
Product Width:
16
Department:
Plumbing
Parts and Accessories Type:
Flush Valve
Application:
Toilet

American Standard 606B362.007 – Frequently Asked Questions

1) Will the American Standard Ultima 606B362 flush valve work with my toilet's spud?
It's built for flushometer bowls with a 1-1/2 inch (38 mm) back spud. If your bowl has a top spud, or a different spud size, this valve won't connect without changing the fixture.
2) Does the Ultima Selectronic 606B362 come with a power supply?
No. The power kit is sold separately and has to be ordered on its own, so budget for it as a second line item. The valve itself is the concealed Selectronic body with the wall box and vandal-resistant brushed stainless cover.
3) Can this concealed flush valve be serviced from behind the wall?
No. The 606B362 is specified for installations with front access, meaning service happens through the wall box cover on the room side. If your chase layout only allows rear access, this isn't the right configuration.
4) What happens if the power fails on the Ultima Selectronic flush valve?
There's a fully mechanical manual override that flushes the valve without power. For a facility that can't afford a dead fixture during an outage, that's the feature that matters.
5) Is the 606B362 a 1.6 gpf valve, and will it match the other flushometers in my building?
It flushes 1.6 gpf / 6.0 Lpf, the standard commercial water closet volume. If your existing bowls are rated 1.6 gpf, this drops into the same flush volume; if you've standardized on 1.28 gpf high-efficiency bowls, specify a matching valve instead.
6) Why choose a piston-type sensor flush valve over a diaphragm one for high-traffic restrooms?
This Ultima unit is piston-type and uses DynaClean, a wiper spring that cleans the refill orifice on every flush to help prevent run-on. Run-on from a fouled orifice is the usual maintenance call on flushometers, so the self-cleaning action is the argument for the piston design here. The body is a proprietary brass alloy that resists dezincification, which matters on aggressive water.
7) Is the Ultima 606B362 suitable for a school or airport restroom where vandalism is a concern?
It's a commercial-duty unit with the working valve concealed in the wall and only a vandal-resistant brushed stainless cover exposed. Touchless sensor operation means nothing to grab or twist on the face.
8) What is the manufacturer part number for the American Standard Ultima concealed toilet flush valve with wall box?
The base model concealed Selectronic toilet flush valve with wall box is American Standard 606B362.007. It's part of the Selectronic family and ships without an applied finish on the valve body, with the brushed stainless cover on the wall box.
