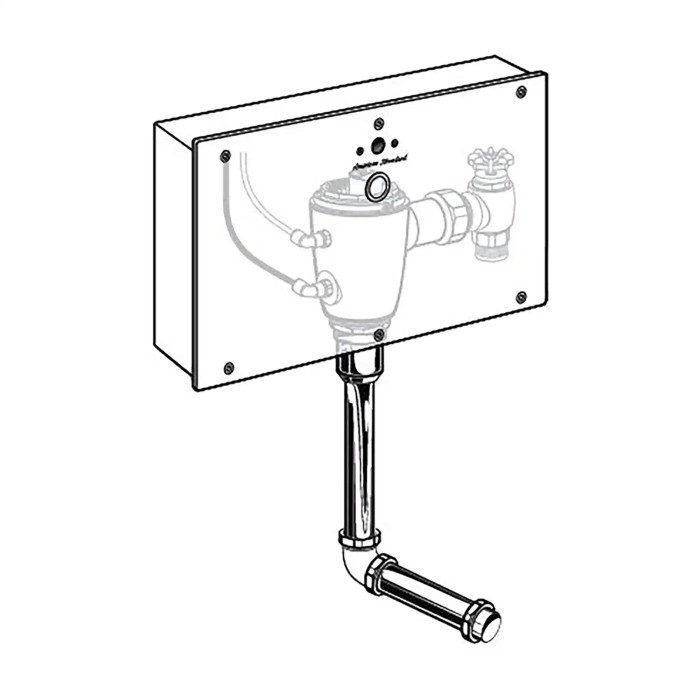

American Standard Ultima Selectronic Concealed Urinal Flush Valve with Wall Box, Base Model, Piston-Type, 0.125 gpf/0.5 Lpf - AMS-606B501

American Standard Ultima Selectronic Concealed Urinal Flush Valve with Wall Box, Base Model, Piston-Type, 0.125 gpf/0.5 Lpf - AMS-606B501

(No reviews yet) Write a Review

Model: 606B501.007
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$882.66
$832.66
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Ultima Selectronic Concealed Urinal Flush Valve with Wall Box, Base Model, Piston-Type, 0.125 gpf/0.5 Lpf
  • For urinals with 3/4" (19 mm) back spud
  • POWER KIT MUST BE PURCHASED SEPARATELY
  • FOR INSTALLATIONS WITH FRONT ACCESS
  • Includes Wall Box with Vandal-Resistant Brushed S.S. Cover
  • Touchless operation limits the spread of germs
  • Exclusive DynaClean self-cleaning wiper spring technology
  • Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
  • Fully mechanical manual override can operate without power
  • Proprietary brass alloy resists dezincification
  • 0.125 gpf/0.5 Lpf

Manufacturer Resources

Product Specs

Product Type:
Urinal Flush
Product Group:
Commercial
Product Subgroup:
Parts and Accessories
Family:
SELECTRONIC
Luxury/Non Luxury:
Non Luxury
Residential Commercial:
Commercial
Product Length:
19.875
Product Height:
8.31
Product Weight:
18.517
Product Width:
16
Department:
Plumbing
Parts and Accessories Type:
Flush Valve
Application:
Toilet

American Standard 606B501.007 – Frequently Asked Questions

1) Will the American Standard Ultima Selectronic concealed urinal flush valve work with my urinal's spud?
It's built for urinals with a 3/4 inch (19 mm) back spud. If your fixture has a top spud or a different spud size, this valve won't mate up and you need a different configuration.
2) Does the 606B501 urinal flush valve come with a power supply?
No. The power kit is sold separately and has to be ordered with it, so budget a second line item. The valve itself ships with the wall box and a vandal-resistant brushed stainless steel cover.
3) Can this concealed urinal valve be serviced from behind the wall, or do I need front access?
Front access only. The 606B501 is specified for installations with front access, so the chase behind the fixture is not a service path. If your rough-in only allows rear access, this isn't the right valve for that opening.
4) Does the urinal still flush if the power goes out?
Yes. There's a fully mechanical manual override that operates without power, so a building outage or a dead battery doesn't take the fixture out of service. That matters in schools and stadiums where the restroom has to keep working.
5) What flush volume is this American Standard Selectronic urinal valve, and will it meet a high-efficiency water spec?
It flushes at 0.125 gpf (0.5 Lpf), which is the pint-per-flush rate. Confirm your urinal fixture is rated for 0.125 gpf; pairing a pint valve with a fixture designed for a higher volume can leave the trap under-scoured.
6) Why do concealed sensor urinal valves run on after flushing, and does this one address it?
Run-on usually comes from debris in the refill orifice holding the valve open. This piston-type Ultima uses DynaClean, an integral wiper spring that scrubs the refill orifice on every flush to keep that from happening. For an MRO crew chasing repeat run-on callbacks, that's the feature doing the work.
7) Will this flush valve hold up in hard or aggressive water?
The body is a proprietary brass alloy that resists dezincification, which is the failure mode that eats standard brass in aggressive water and leaves a porous, leaking casting. Paired with the vandal-resistant stainless cover, it's aimed at high-traffic commercial restrooms.
8) Is the AMS-606B501 a commercial valve or will it suit a residential half bath?
This is a commercial-duty piece from the American Standard Selectronic family, intended for commercial restrooms, not residential fixtures. Ordering reference is MPN 606B501.007.
