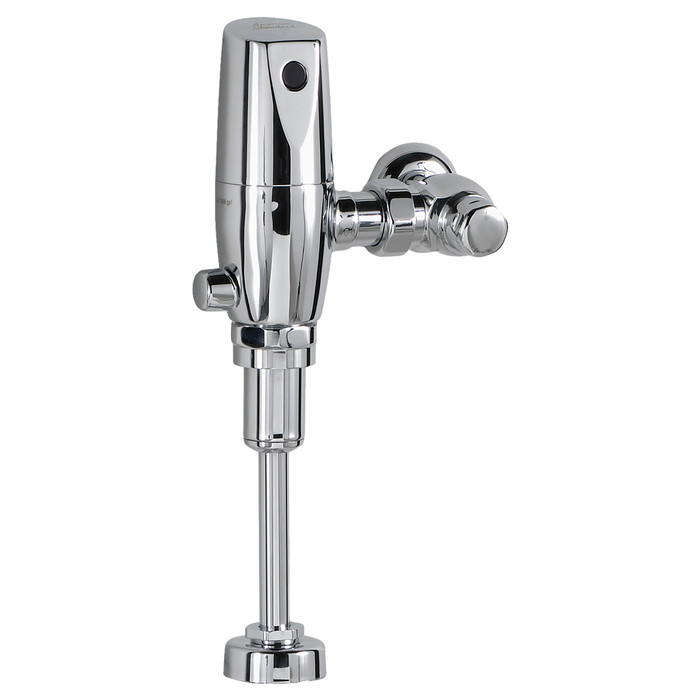

American Standard Ultima Selectronic Touchless Urinal Flush Valve, Piston-Type, Battery, 0.125 gpf/0.5 Lpf - AMS-6063013

American Standard Ultima Selectronic Touchless Urinal Flush Valve, Piston-Type, Battery, 0.125 gpf/0.5 Lpf - AMS-6063013

(No reviews yet) Write a Review

Model: 6063013.002

In Stock (leaves warehouse same day if ordered before 3pm ET)

$515.51
$465.51
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Ultima Selectronic Touchless Urinal Flush Valve, Piston-Type, Battery, 0.125 gpf/0.5 Lpf
  • For urinals with 3/4-inch (19 mm) exposed top spud
  • 8-year CR-P2 lithium battery installed in valve
  • Touchless operation limits the spread of germs
  • Exclusive DynaClean self-cleaning wiper spring technology
  • Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
  • Fully mechanical manual override can operate without power
  • Fail-Safe operation: Valve automatically closes upon loss of power or water pressure
  • Pressure Compensation feature ensures accurate flush volume regardless of inlet water pressure
  • Proprietary brass alloy resists dezincification
  • 11-1/2" (292 mm) rough-in

Manufacturer Resources

Spec Sheet

Product Specs

Product Type:
Flush Valve
Product Group:
Commercial
Product Subgroup:
Parts and Accessories
Department:
Plumbing
Parts and Accessories Type:
Flush Valve
Application:
Toilet
Country of Origin:
Mexico

American Standard 6063013.002 – Frequently Asked Questions

1) Is the Ultima Selectronic urinal valve hardwired or does it run on a battery?
Battery powered. A CR-P2 lithium battery rated for 8 years comes installed in the valve, so there's no transformer, no conduit, and no electrician needed for a retrofit. That's the usual reason property managers pick this over a hardwired sensor valve in an occupied building.
2) What happens if the battery dies or the water shuts off on this touchless urinal valve?
Two things cover you. The valve has fail-safe operation, meaning it closes automatically if power or water pressure is lost, so it won't stick open and flood the room. And there's a fully mechanical manual override that flushes without any power at all, so maintenance can keep the fixture in service until the battery is changed.
3) Is 0.125 gpf enough to clear a standard urinal, or do I need a 0.5 gpf valve?
The 6063013 is a 0.125 gpf / 0.5 Lpf pint flush valve, and it should only go on a urinal the manufacturer rates for 1/8 gallon. Older 1.0 gpf and 0.5 gpf urinals generally have larger traps and washdown patterns that won't clear reliably on a pint. Match the valve flush volume to the fixture rating, not to the water savings you want.
4) Will flush volume drop off if my building has low or fluctuating water pressure?
No. Pressure compensation is built in, so the valve delivers the same flush volume regardless of inlet water pressure. That matters in high-rises and older buildings where pressure varies floor to floor and pint-flush urinals are the first to show short flushes.
5) Do these sensor urinal valves run on constantly? What stops a piston valve from leaking through?
Run-on with a piston valve almost always traces to a fouled refill orifice. This one uses DynaClean, an integral wiper spring that scrubs the refill orifice on every flush to keep it clear. The body is a proprietary brass alloy that resists dezincification, which is the other common failure mode in hard or aggressive water.
6) Can I use this valve on a water closet instead of a urinal?
No. The 6063013 is a urinal flush valve at 0.125 gpf with an 11-1/2 inch rough-in. A water closet needs a closet flush valve with the higher flush volume and the longer rough-in that fits a toilet spud. Use the urinal version only on urinals with a 3/4 inch top spud.
