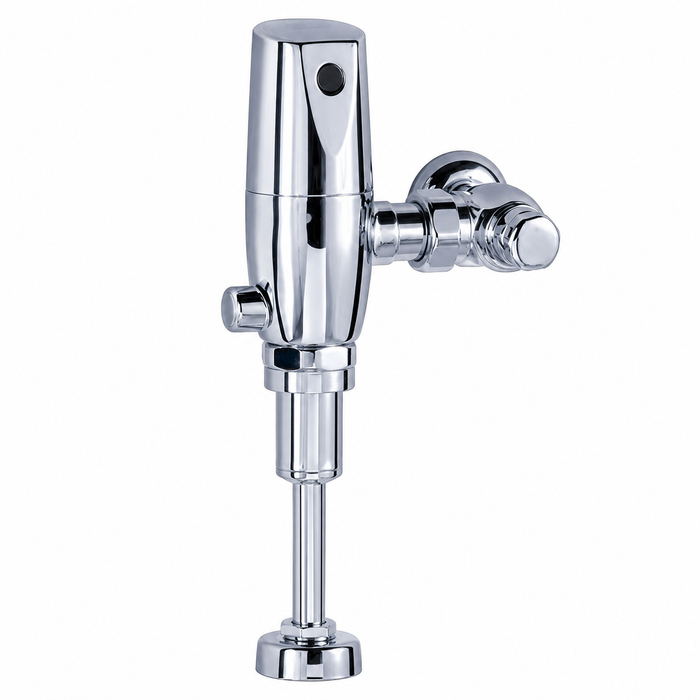

American Standard Ultima Selectronic Touchless Urinal Flush Valve, Piston-Type, PWRX, 0.125 gpf/0.5 Lpf - AMS-6064013

American Standard Ultima Selectronic Touchless Urinal Flush Valve, Piston-Type, PWRX, 0.125 gpf/0.5 Lpf - AMS-6064013

(No reviews yet) Write a Review

Model: 6064013.002
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$593.50
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Ultima Selectronic Touchless Urinal Flush Valve, Piston-Type, PWRX, 0.125 gpf/0.5 Lpf
  • For urinals with 3/4-inch (19 mm) exposed top spud
  • 10-Year PWRX Battery installed in valve
  • Touchless operation limits the spread of germs
  • Exclusive DynaClean self-cleaning wiper spring technology
  • Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
  • Fully mechanical manual override can operate without power
  • Fail-Safe operation: Valve automatically closes upon loss of power or water pressure
  • Pressure Compensation feature ensures accurate flush volume regardless of inlet water pressure
  • Proprietary brass alloy resists dezincification
  • 11-1/2" (292 mm) rough-in

Manufacturer Resources

Product Specs

Product Type:
Flush Valve
Product Group:
Commercial
Product Subgroup:
Parts and Accessories
Department:
Plumbing
Parts and Accessories Type:
Flush Valve
Application:
Toilet

American Standard 6064013.002 – Frequently Asked Questions

1) Is the Ultima Selectronic urinal valve a water closet valve or a urinal valve? What's the flush volume?
Urinal only, at 0.125 gpf (0.5 Lpf). That is a pint-per-flush rate and it is far too little water to clear a water closet, so don't substitute it on a toilet. For a toilet you need a closet valve in the 1.28 or 1.6 gpf range.
2) Does this touchless urinal valve need to be wired, or does it run on batteries?
No wiring, no transformer, no junction box. The PWRX battery comes installed in the valve and is rated for 10 years, so it drops into a restroom with no power at the fixture. That makes it practical for retrofitting an existing manual urinal where running low voltage to the wall isn't an option.
3) What happens if the battery dies or the water is shut off mid-day?
Two things protect you. The valve is fail-safe, meaning it closes automatically on loss of power or loss of water pressure, so you don't get a stuck-open flush flooding the floor. And there's a fully mechanical manual override that works with no power at all, so maintenance or a user can still flush the urinal until the battery is dealt with.
4) Our urinal valves keep running on after the flush. Will this one stop that?
Run-on in a piston flush valve usually traces to a clogged refill orifice. This is a piston-type valve with DynaClean, an integral wiper spring that scrubs the refill orifice on every flush specifically to prevent run-on. If you're pulling valves off the wall repeatedly for that reason, that feature is the reason to go to this one.
5) Will flush volume drift if our building water pressure is high or low?
No. Pressure compensation is built in, so the valve delivers the same 0.125 gpf whether it sits on a low-pressure branch or a high-pressure riser. That matters on a multi-story building where a top-floor and ground-floor urinal see very different static pressure but both have to meet the same flush rate.
6) What finish and part number do I order for the Ultima Selectronic urinal valve?
Chrome, ordered as American Standard 6064013.002. It's the single configuration, so there is no finish or handing decision to make. Note the body is a proprietary brass alloy chosen to resist dezincification, which is the failure mode you see in valves on aggressive or softened water supplies.
7) Is this the right valve for a high-traffic public restroom where hygiene complaints are the issue?
It's aimed squarely at that. Touchless sensor actuation means nobody has to contact the handle, which limits germ transfer in schools, stadiums, healthcare and office restrooms. Combined with the 10-year installed battery and the self-cleaning wiper spring, the maintenance touches per fixture are low, which is what drives the spec in facilities standardizing a whole building on one valve.
