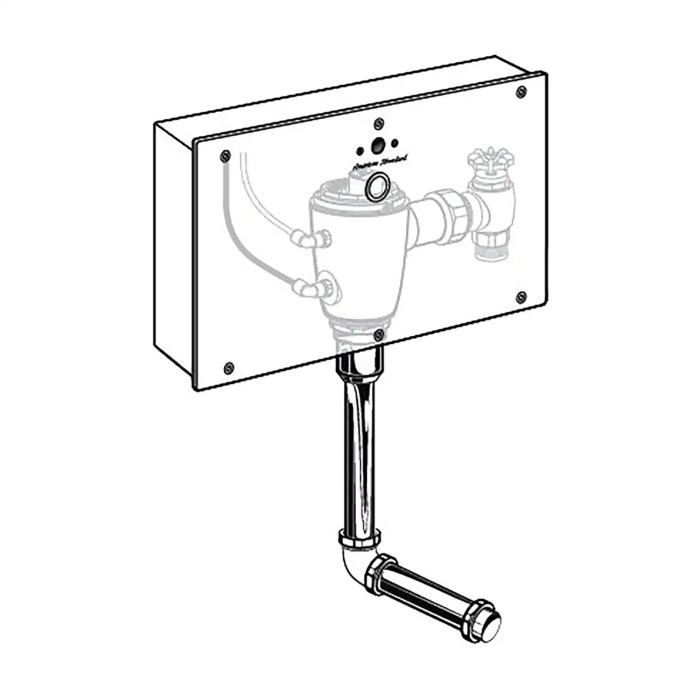

American Standard Ultima Selectronic Concealed Urinal Flush Valve with Wall Box, Base Model, Piston-Type, 0.5 gpf/1.9 Lpf - AMS-606B505

American Standard Ultima Selectronic Concealed Urinal Flush Valve with Wall Box, Base Model, Piston-Type, 0.5 gpf/1.9 Lpf - AMS-606B505

(No reviews yet) Write a Review

Model: 606B505.007
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$882.66
$832.66
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Ultima Selectronic Concealed Urinal Flush Valve with Wall Box, Base Model, Piston-Type, 0.5 gpf/1.9 Lpf
  • For urinals with 3/4" (19 mm) back spud
  • POWER KIT MUST BE PURCHASED SEPARATELY
  • FOR INSTALLATIONS WITH FRONT ACCESS
  • Includes Wall Box with Vandal-Resistant Brushed S.S. Cover
  • Touchless operation limits the spread of germs
  • Exclusive DynaClean self-cleaning wiper spring technology
  • Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
  • Fully mechanical manual override can operate without power
  • Proprietary brass alloy resists dezincification
  • 0.5 gpf/1.9 Lpf

Manufacturer Resources

Product Specs

Product Type:
Flush Valve
Product Group:
Commercial
Product Subgroup:
Parts and Accessories
Family:
SELECTRONIC
Luxury/Non Luxury:
Non Luxury
Residential Commercial:
Commercial
Product Length:
19.875
Product Height:
8.31
Product Weight:
18.517
Product Width:
16
Department:
Plumbing
Parts and Accessories Type:
Flush Valve
Application:
Toilet

American Standard 606B505.007 – Frequently Asked Questions

1) Will the American Standard Ultima Selectronic 606B505 flush valve work on a urinal with a top spud?
No. The 606B505 concealed urinal flush valve is built for urinals with a 3/4 inch (19 mm) back spud. A top spud urinal needs a different valve and a different rough-in, so this one will not line up.
2) Does the Ultima 606B505 urinal flush valve come with the power supply?
No, and this is the single most common ordering miss on it. The power kit is sold separately and has to be added to the order. The valve itself ships with the wall box and a vandal-resistant brushed stainless cover.
3) Can I service this concealed urinal flush valve if there is no chase behind the wall?
Yes. The 606B505 is specified for front access installations, so the valve is reached through the wall box opening in the finished wall rather than from a rear chase. That matters in retrofits and in single-wall restroom layouts where there is nothing behind the fixture.
4) What happens to this touchless urinal valve when the power goes out?
It still flushes. The Ultima Selectronic concealed urinal valve has a fully mechanical manual override that works without power, so a dead transformer or a building outage does not take the fixture out of service.
5) Does the 606B505 meet a 0.5 gpf urinal spec?
It flushes at 0.5 gpf (1.9 Lpf), which is the standard commercial urinal flush rate called out on most spec sheets. If the drawing calls for a 0.125 gpf pint or 0.25 gpf high-efficiency urinal, this is not the valve.
6) Why do concealed urinal flush valves run on, and does this one address it?
Run-on usually comes from debris fouling the refill orifice. This piston-type valve uses American Standard's DynaClean wiper spring, which scrubs that orifice on every flush. The body is a proprietary brass alloy that resists dezincification, which is the other long-term failure mode in hard or aggressive water.
7) Is the Ultima 606B505 a base model or does it have added features?
Base model. It is the entry configuration of the Selectronic concealed urinal valve family, piston-type, sold as a commercial-grade assembly for institutional and MRO restroom work. If you want to standardize a building on one valve, this is the plain version to spec.
8) What is the exact part number to order this American Standard concealed urinal valve?
Order it as American Standard 606B505.007. There is one configuration, with no finish option to select, since the exposed part is the brushed stainless wall box cover.
