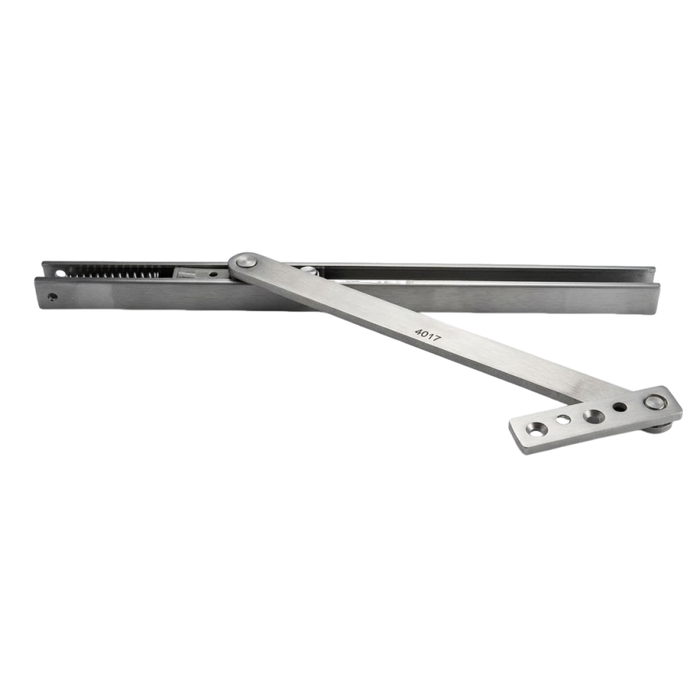

ABH 4000RA Series Concealed Mount Medium Duty Overhead Door Holder & Stop with Adjustable Opening Control

ABH 4000RA Series Concealed Mount Medium Duty Overhead Door Holder & Stop with Adjustable Opening Control

(No reviews yet) Write a Review

Model: ABH-4011RA-US26
$316.00
$310.53
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$316.00
$310.53
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

ABH 4000RA Series Concealed Mount Medium Duty Overhead Door Holder & Stop with Adjustable Opening Control

Professional Concealed Mount Door Control Solution

The ABH 4000RA Series delivers professional-grade door control with concealed mounting for clean aesthetics and medium duty performance. This versatile overhead holder and stop features an internal channel slide system that allows field-adjustable opening degrees from 85° to 110° in 5° increments. Designed for 1-3/4" to 2-1/4" thick doors, this non-handed unit provides stop, hold-open, and friction functions for both interior and exterior applications on frequent traffic and heavy weight doors.

Professional Features & Benefits

  • Adjustable Opening Control: Internal channel slide allows field adjustment from 85° to 110° opening in 5° increments for precise door positioning.
  • Shock Absorbing Design: Integrated spring provides 3° to 5° cushion before dead-stop to protect door and frame from impact damage.
  • Door Thickness Compatibility: Standard fasteners with sex bolts accommodate 1-3/4" to 2-1/4" thick doors with options available for other thicknesses.
  • Multi-Function Operation: Provides stop, hold-open, and friction functions in a single concealed unit for versatile door control.
  • Heavy-Duty Construction: Medium duty rating suitable for frequent traffic and heavy weight doors in demanding commercial applications.
  • Fire Door Compatibility: UL Listed as Miscellaneous Fire Door Accessories for wood fire doors up to 90 minutes and metal fire doors up to 3 hours (stop function only).
  • Universal Installation: Non-handed design simplifies inventory and installation for both interior and exterior applications.
  • BAA Qualified: Meets Buy American Act requirements for qualifying projects and government installations.

Technical Specifications

  • BAA Qualified: Yes
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Keyed: N/A
  • Keyed Function: N/A
  • PDF:4000RA Adjustable Series Holders & Stops, Concealed Mount, Medium Duty: https://zensupply.com/content/pdf/abh/0002302_4000ra_04_compressed.pdf
  • PDF:4000RA Series Concealed Mount, Medium Duty, Adjustable Cut Sheet: https://zensupply.com/content/pdf/abh/0002281_4000ra_cut_sheet.pdf
  • PDF:Overhead Holders/Stops - Lead Lining: https://zensupply.com/content/pdf/abh/0002593_lead_lining_option_00.pdf
  • Product Category: Door Controls
  • Product Group: Door Controls
  • Product Model: 4000RA
  • Product Subgroup: Overhead Stops and Holders
  • Product Type: Overhead Stops and Holders - Surface Mount
  • Series: 4000RA Series
  • Subcategory: Door Stops & Holders

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose ABH Quality?

ABH 4000RA Series door holders deliver professional-grade reliability with UL Listed fire door compatibility and medium duty construction rated for frequent traffic applications. BAA qualified for government projects with shock absorbing spring design that provides 3° to 5° cushion protection. Engineered for demanding commercial applications where dependable door control and concealed aesthetics are essential.

Product Specs

Product Group:
Door Controls
Series:
4000RA Series
Product Subgroup:
Overhead Stops and Holders
Product Type:
Overhead Stops and Holders - Surface Mount
Subcategory:
Door Stops & Holders
Commercial/Residential:
Commercial
Keyed:
N/A
Keyed Function:
N/A
BAA Qualified:
Yes
Product Model:
4000RA
Product Category:
Door Controls
Department:
Door Hardware

ABH ABH-4011RA-US26 – Frequently Asked Questions

1) Will the ABH 4000RA overhead holder work on a 2-inch thick door?
Yes. The 4000RA concealed mount holder and stop ships with standard fasteners and sex bolts covering 1-3/4 inch through 2-1/4 inch doors, so a 2 inch leaf is squarely in range. Thicker or thinner doors than that band need an option specified rather than the standard fastener pack.
2) Can I set how far the door opens with the ABH 4000RA, or is the stop angle fixed?
It adjusts in the field. An internal channel slide sets the stop point anywhere from 85 degrees to 110 degrees in 5 degree steps, so one unit covers a corridor door that has to clear a wall at 90 and a door that needs the full swing. A spring built into the unit gives 3 to 5 degrees of cushion before the dead stop, which is what keeps the frame from taking the hit on a wind-loaded exterior door.
3) Do I need to order the ABH 4000RA left hand or right hand?
Handing is not a factor. The 4000RA is non-handed, so the same unit goes on a left or right swinging door, interior or exterior. For a property manager stocking spares across a building, that means one part number per opening size and finish instead of two.
4) How do I pick the right size ABH 4000RA for my door?
Size off the door frame opening width, not the door height. The 4000RA is built in five ranges: 18 to 24 inches, 24-1/16 to 30 inches (27 to 32 inches), 30-1/16 to 36 inches (32-1/16 to 38-1/2 inches), 36-1/16 to 42 inches (38-9/16 to 45 inches), and 42-1/16 to 48 inches. Measure the clear frame opening and order the range it falls in; a unit sized for a 36 inch opening will not track correctly on a 42 inch leaf.
5) Can the ABH 4000RA be used on a fire rated door?
Yes, with one limit that matters. The 4000RA is UL Listed as a Miscellaneous Fire Door Accessory for wood fire doors up to 90 minutes and metal fire doors up to 3 hours, but that listing covers the stop function only. If the opening is fire rated, order it as a stop. A hold open unit on a rated door defeats the closing the rating depends on.
6) What is the difference between the stop, hold open and friction versions of the ABH 4000RA?
Three functions, and you pick one at order time. Stop arrests the door at the set angle and lets it close normally, which is the version for a rated opening or anywhere a closer has to do its job. Hold open catches and holds the door at the stop point until someone releases it, for loading doors and moving days. Friction gives adjustable drag so the door stays roughly where you leave it anywhere in the swing rather than latching open at one fixed point.
7) What is the closest heavy duty alternative to the ABH 4000RA adjustable overhead stop?
The ABH 4000RA is a medium duty adjustable overhead holder and stop with field-adjustable opening from 85 degrees to 110 degrees in 5 degree increments. If the opening needs a heavy duty unit, the Norton Rixson 9ADJ Checkmate is a heavy duty Grade 1 adjustable surface mount stop and holder with a 110 degree opening. Both give you an adjustable stop point; the 9ADJ carries a heavy duty rating and a Grade 1 designation, while the 4000RA is rated medium duty for frequent traffic and heavy weight doors.
8) Is there a simpler non-adjustable overhead stop if I do not need to set the opening degree?
The ABH 4000RA earns its keep when the opening angle has to be dialed in, since the internal channel slide adjusts from 85 degrees to 110 degrees in 5 degree increments. Where a fixed stop point is acceptable, the Sargent 1540 is a medium duty Grade 1 surface mount door stop and holder with a 110 degree opening, and the Glynn-Johnson 450 Series is a light to medium duty surface overhead holder and stop. Both sit at a comparable duty level to the 4000RA without the field-adjustable opening.
9) Which overhead stop should I specify on a fire rated door assembly?
The ABH 4000RA is UL Listed as a Miscellaneous Fire Door Accessory for wood fire doors up to 90 minutes and metal fire doors up to 3 hours, with the stop function only on rated openings, so a fire door should be ordered as a stop rather than a hold open. It is also BAA qualified, which matters on government work. Among the alternatives, the Norton Rixson 10 Series Checkmate surface stop and holder with slide track arm is heavy duty and Grade 1, and the Sargent 590 is heavy duty and Grade 1 in bronze.
10) Are surface mount overhead stops like the Glynn-Johnson 450 or Sargent 1540 a direct swap for the ABH 4000RA?
They are not an interchangeable swap. The ABH 4000RA is a concealed mount unit whose channel is let into the door, while the Glynn-Johnson 450 Series and the Sargent 1540 are surface overhead holders and stops that mount on the face of the door and frame. Duty level lines up closely, with the 450 Series light to medium duty and the 1540 medium duty against the medium duty 4000RA, but the door and frame preparation is different, so replacing one with the other means new prep rather than reusing the existing holes.
11) Should I use a concealed overhead stop or a surface mounted one?
Concealed, like the 4000RA, mortises into the top of the door and the frame soffit so almost nothing shows when the door is closed. That takes door and frame prep, so it is the choice on new openings or when appearance drives the job. Surface mounted units screw onto the face of the door and the frame head with no mortising, which is what you want on a retrofit where you are not cutting an existing door. ZenSupply carries surface options including the Glynn-Johnson 450 Series in medium duty and the Norton Rixson 9ADJ Series in heavy duty with a 110 degree opening.
12) Is a medium duty overhead stop enough, or do I need heavy duty?
The 4000RA is rated medium duty for frequent traffic and heavy weight doors, which covers most commercial interior corridors, offices, classrooms and retail back-of-house. Where the door takes abuse beyond that (exterior doors in wind, dock and industrial openings, high-abuse public entrances), step up to a heavy duty unit. ZenSupply carries the Glynn-Johnson 90 Series and the Norton Rixson 7 Series Checkmate in heavy duty, and the Rixson 7 and 9ADJ are Grade 1.
13) Does the ABH 4000RA meet Buy American requirements for a government job?
Yes, the 4000RA is BAA qualified, so it clears Buy American Act requirements on federal and other qualifying public projects. That is the answer a municipal or GSA spec writer needs before it goes on the hardware schedule.
14) Is an overhead stop a substitute for a door closer?
No. The 4000RA controls how far the door opens and, in the hold open version, keeps it there. It does not close the door or control closing speed. On a rated opening you still need a self-closing device, and the overhead stop works alongside it to keep the door from swinging past its arc into a wall or overextending the closer arm.
15) I only need the door to stay put where it is pushed, not to latch open. Which units offer a friction function?
The ABH 4000RA is offered in stop, hold open, and friction functions across the series, so a friction unit can be ordered directly. The DORMA 701F is a standard duty surface applied friction stop covering a 21 inch to 27 inch door opening. The ABH 4000RA covers door frame openings from 18 inches through 48 inches across the series, so it reaches wider leaves than the 701F does at that size.
16) If I am standardizing overhead stops across a whole building, how does the ABH 4000RA compare to the Norton Rixson 9ADJ on flexibility?
Both are adjustable units. The ABH 4000RA is non-handed and adjusts from 85 degrees to 110 degrees in 5 degree increments, comes in stop, hold open, and friction functions, fits door frame openings from 18 inches through 48 inches, and is offered in fourteen finishes including satin stainless steel, oil rubbed bronze, and painted white. The Norton Rixson 9ADJ Checkmate is a heavy duty Grade 1 adjustable surface mount stop and holder with a 110 degree opening. For a mixed building where some openings need a lower stop angle, the 4000RA's 5 degree increments let one part number cover several conditions.
17) What is the difference between the Norton Rixson 7 Series and the ABH 4000RA for a hold open application?
Both can hold a door open. The ABH 4000RA is offered in a hold open function and is a medium duty concealed mount unit with a spring that gives 3 to 5 degrees of cushion before the dead stop. The Norton Rixson 7 Series Checkmate is an industrial duty surface door stop and holder with hold open function, rated heavy duty and Grade 1. The 4000RA hides its channel in the door edge; the 7 Series mounts on the surface.
18) Can I get an ABH 4000RA that matches the other door hardware in the building?
Fourteen finishes are made, so matching existing openings is usually straightforward: Bright Brass, Bright Bronze, Bright Chrome, Bright Stainless Steel, Oil Rubbed Bronze, Satin Brass, Satin Bronze, Satin Stainless Steel, plus painted Aluminum, Black, Brass, Bronze, Dark Bronze and White. Satin Stainless and Painted Aluminum are the usual pairings with commercial aluminum storefront and standard institutional trim; Oil Rubbed Bronze and Satin Bronze read with darker architectural hardware.
19) Can an overhead door stop be used on a lead lined door for an X-ray room?
ABH publishes a lead lining option for its overhead holders and stops, so a shielded opening in an imaging suite or dental room can be handled rather than ruled out. Specify the lead lining option with the order; the standard unit is not prepped for it.
