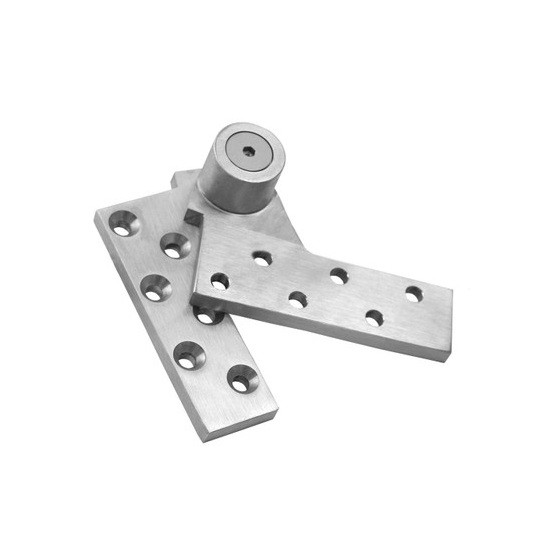

ABH EX0180 Extended Pin Top Pivot with 3/4" Offset - Heavy Duty Fire Rated

ABH EX0180 Extended Pin Top Pivot with 3/4" Offset - Heavy Duty Fire Rated

(No reviews yet) Write a Review

Model: EX0180-RH-US26
$409.00
$401.92
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$409.00
$401.92
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

ABH Extended Pin Top Pivot with 3/4" Offset - Heavy Duty Fire Rated

Professional Offset Pivot Solution for Commercial Door Applications

The ABH Extended Pin Top Pivot delivers heavy-duty performance with a 3/4" offset configuration designed for commercial door installations. This fire-rated pivot features an extended pin design and stainless steel construction for demanding applications. BAA qualified and rated for 3-hour fire applications, this top pivot provides reliable operation for offset hung doors in commercial environments.

Professional Features & Benefits

  • Extended Pin Design: Extended pin configuration provides enhanced stability and alignment for smooth door operation throughout the full range of motion.
  • 3/4" Offset Configuration: Precise 3/4" offset dimension accommodates specific door and frame requirements for proper clearance and operation.
  • Heavy-Duty Construction: Stainless steel substrate provides exceptional durability and corrosion resistance for long-term commercial performance.
  • Fire-Rated Performance: 3-hour fire rating ensures compliance with fire safety codes and building requirements for fire-rated door assemblies.
  • BAA Qualified: Buy American Act qualification meets federal procurement requirements for government and institutional projects.
  • Commercial-Grade Durability: Heavy duty rating designed for high-traffic commercial applications with consistent performance under demanding conditions.
  • Top Pivot Function: Engineered specifically as a top pivot component for offset hung door configurations requiring precise alignment and support.

Technical Specifications

  • Application: Standard Door
  • BAA Qualified: Yes
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Duty Level: Heavy Duty
  • Electronic: No
  • Fire Rated Time: 3 hours
  • Fire Rating: Yes
  • Hang Type: Offset Hung
  • Keyed: N/A
  • Keyed Function: N/A
  • Mounting Method: Offset
  • Pivot Type: Top
  • Product Attribute: Pivots
  • Product Category: Door Hinges and Pivots
  • Product Group: Door Hinges and Pivots
  • Product Model: EX0180
  • Product Subgroup: Pivots and Pivot Sets
  • Product Substrate: Stainless Steel
  • Product Type: Pivot Sets - Offset
  • Subcategory: Pivot Sets

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Government and Municipal Buildings
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Fire-Rated Door Assemblies

Why Choose ABH Quality?

ABH pivot hardware delivers professional-grade reliability with stainless steel construction rated for heavy-duty commercial applications. The 3-hour fire rating and BAA qualification ensure compliance with demanding building codes and federal requirements. Engineered for commercial environments where dependable door operation and fire safety compliance are essential.

Product Specs

Product Group:
Door Hinges and Pivots
Product Subgroup:
Pivots and Pivot Sets
Product Type:
Pivot Sets - Offset
Subcategory:
Pivot Sets
Commercial/Residential:
Commercial
Hang Type:
Offset Hung
Keyed:
N/A
Keyed Function:
N/A
BAA Qualified:
Yes
Duty Level:
Heavy Duty
Fire Rated Time:
3 hours
Electronic:
No
Pivot Type:
Top
Mounting Method:
Offset
Application:
Standard Door
Product Attribute:
Pivots
Product Model:
EX0180
Fire Rating:
Yes
Product Category:
Door Hinges and Pivots
Product Substrate:
Stainless Steel
Department:
Door Hardware

ABH EX0180-RH-US26 – Frequently Asked Questions

1) Is the ABH EX0180 top pivot handed, and how do I pick left or right?
Handing matters. The EX0180 extended pin top pivot is ordered as either Left Hand or Right Hand, and there is no universal or field-reversible version. Determine the door's hand from the side the door swings toward you and the location of the hinge edge, then order to match. Every finish is offered in both hands.
2) Will the EX0180 work on a center hung door?
No. The EX0180 is built for offset hung doors with a 3/4 inch offset, meaning the pivot point sits off the door's centerline near the hinge edge. A center hung door pivots on the door's centerline and needs a center hung top pivot instead. Swapping one for the other changes the swing geometry and the frame prep, so the offset unit will not drop into a center hung opening.
3) Is the EX0180 a complete pivot set or do I need a bottom pivot too?
It is the top pivot only. The EX0180 is a top pivot for an offset hung door, so a complete hanging requires a matching offset bottom pivot (and an intermediate pivot on tall or heavy doors). Order the bottom component in the same 3/4 inch offset and the same hand so the pivot centers line up.
4) I need a pivot for a fire rated door assembly - which options work?
The ABH EX0180 top pivot carries a fire rating with a 3 hour rated time, and the BEST A3 offset hung pivot set is also fire rated. Both are offset hung, so either suits a fire rated opening hung on pivots rather than butt hinges. If your specification calls out a specific rated duration, the EX0180 is the one stating 3 hours.
5) Which offset pivot meets Buy American Act requirements for a federal job?
The ABH EX0180 extended pin top pivot is BAA qualified, which is the deciding factor on government and institutional work where domestic sourcing is written into the procurement. It is also stainless steel and heavy duty rated. Choose it over an unqualified offset pivot when the contract carries a Buy American clause.
6) Is a stainless steel pivot worth it for an exterior or wash-down opening?
The EX0180 uses a stainless steel substrate, which is what you want on exterior entrances, pool and locker areas, kitchens and coastal buildings where a plated steel pivot will rust at the pin. It is also rated heavy duty, so it suits high traffic openings.
7) What finishes does the ABH EX0180 top pivot come in for matching existing door hardware?
Fourteen finishes, in both hands: Bright Brass, Satin Brass, Bright Bronze, Satin Bronze, Oil Rubbed Bronze, Bright Chrome, Bright Stainless Steel, Satin Stainless Steel, and painted Aluminum, Brass, Bronze, Dark Bronze, Black and White. Property managers standardizing a building can match the painted options to a frame color or the satin stainless to existing 630 hardware.
8) What else can I use if I need a 3/4 inch offset pivot set rather than just the top pivot?
The Calibre Door Closers PV1000 is a 3/4 inch offset flush pivot set, so it matches the same 3/4 inch offset geometry as the ABH EX0180 but is sold as a set. The BEST A3 System offset hung pivot set is another offset hung option and is fire rated. Which one fits depends on the frame prep already in the opening, since flush and extended pin top pivots are prepped differently.
9) Do I need to order a separate bottom pivot, or does a set like the BEST A3 cover it?
The ABH EX0180 is a top pivot, so a bottom pivot or floor closer is ordered separately to complete an offset hung opening. The BEST A3 and the Calibre PV1000 are both supplied as pivot sets, which is the simpler route when you are hanging a new door and have no existing hardware to match at the sill.
10) What does the extended pin on this ABH top pivot actually do for me?
The longer pin gives more engagement into the door's top pivot prep, which keeps the door aligned through the full swing and resists racking on a heavy leaf. It matters most on wide or heavy commercial doors where a short pin lets the top of the door wander and the door starts dragging the frame.
11) Does this pivot take a cylinder or need any wiring?
Neither. The EX0180 is purely mechanical, with no electronic option and no keyed function. If your opening needs power transfer for an electrified lock or exit device, that has to come from a separate transfer hinge, door loop or power transfer device.
12) Is the EX0180 meant for a standard door or a special application like a balanced or lead-lined door?
Standard doors. The EX0180 is listed for standard door applications in commercial settings, offset hung. Balanced doors, oversized doors and other special leaves use dedicated pivot hardware with different load geometry.
