ABH L019 Intermediate Lead-Lin...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$436.00
$428.45

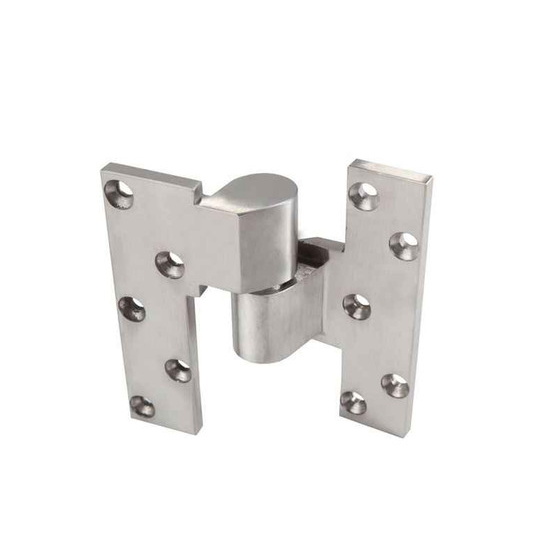

ABH ABH L019 Intermediate Lead-Line Pivot - 3/4" Offset ABH-L019

ABH L019 Intermediate Lead-Line Pivot with 3/4" Offset for Fire Rated Doors

(No reviews yet) Write a Review

Model: L019-RH-US26
$436.00
$428.45
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$436.00
$428.45
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

ABH L019 Intermediate Lead-Line Pivot with 3/4" Offset for Fire Rated Doors

Heavy-Duty Intermediate Pivot for Lead-Lined Door Applications

The ABH L019 Intermediate Lead-Line Pivot provides essential support for tall lead-lined doors with 3/4" offset configuration. Engineered specifically for 1-3/4" lead-lined doors, this heavy-duty pivot features stainless steel construction with needle bearings for smooth operation. UL Listed for 3-hour fire rated doors, the L019 helps maintain proper door alignment in demanding commercial applications where radiation shielding and fire protection are critical.

Professional Features & Benefits

  • Lead-Lined Door Compatibility: Specifically designed for 1-3/4" lead-lined doors with 3/4" offset pivot sets for specialized applications.
  • Height-Based Installation Guidelines: Doors 60" tall require one intermediate pivot, with additional pivots needed for each additional 30" in door height for proper support.
  • Heavy-Duty Construction: Stainless steel base material with heavy duty stainless steel needle bearings for long-lasting performance in demanding environments.
  • Fire Rating Compliance: UL Listed for use on 3-hour fire rated doors as standard, meeting critical safety requirements.
  • Professional Installation: Mortises into side jamb and hinge edge of door with handed configuration (specify LH or RH) for precise fit.
  • Door Alignment Support: Helps maintain proper door alignment throughout operation, essential for heavy lead-lined door applications.
  • Commercial-Grade Durability: Heavy duty rating with average weight of 6 lbs per unit, built for commercial applications.

Technical Specifications

  • Application: Lead-Lined
  • BAA Qualified: Yes
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Duty Level: Heavy Duty
  • Electronic: No
  • Fire Rated Time: 3 hours
  • Fire Rating: Yes
  • Hang Type: Offset Hung
  • Keyed: N/A
  • Keyed Function: N/A
  • Mounting Method: Offset
  • Pivot Type: Intermediate
  • Product Attribute: Pivots
  • Product Category: Door Hinges and Pivots
  • Product Group: Door Hinges and Pivots
  • Product Model: EX0180
  • Product Subgroup: Pivots and Pivot Sets
  • Product Substrate: Stainless Steel
  • Product Type: Pivot Sets - Offset
  • Subcategory: Pivot Sets

Professional Applications

  • Healthcare Facilities with Radiation Shielding Requirements
  • Medical Imaging Centers
  • Nuclear Medicine Departments
  • Research Laboratories
  • Industrial Facilities with Lead-Lined Doors
  • Government and Security Installations
  • Fire-Rated Lead-Lined Door Systems

Why Choose ABH Quality?

ABH L019 pivots deliver professional-grade reliability with heavy-duty stainless steel construction and needle bearing technology rated for demanding commercial applications. UL Listed for 3-hour fire rated doors, these pivots provide the specialized support required for lead-lined door systems. Engineered for commercial applications where radiation protection and fire safety are essential.

Product Specs

Product Group:
Door Hinges and Pivots
Product Subgroup:
Pivots and Pivot Sets
Product Type:
Pivot Sets - Offset
Subcategory:
Pivot Sets
Commercial/Residential:
Commercial
Hang Type:
Offset Hung
Keyed:
N/A
Keyed Function:
N/A
BAA Qualified:
Yes
Duty Level:
Heavy Duty
Fire Rated Time:
3 hours
Electronic:
No
Pivot Type:
Intermediate
Mounting Method:
Offset
Application:
Lead-Lined
Product Attribute:
Pivots
Product Model:
EX0180
Fire Rating:
Yes
Product Category:
Door Hinges and Pivots
Product Substrate:
Stainless Steel
Department:
Door Hardware

ABH L019-RH-US26 – Frequently Asked Questions

1) Do I have to specify handing when ordering the L019 intermediate pivot?
Yes, it is a handed part. Order left hand or right hand to match the door; there is no reversible or universal version, and a wrong-hand pivot will not mortise correctly into the jamb and hinge edge. Both hands are offered in all 14 finishes.
2) Can I use this pivot on a 3-hour fire rated opening?
Yes. The L019 is UL Listed as standard for use on 3-hour fire rated doors, which is the rating most lead-lined imaging and nuclear medicine openings are built to. Keep in mind the opening's rating depends on the whole assembly being listed, not the pivot alone.
3) Is this a complete pivot set or just the intermediate pivot?
The L019 is the intermediate pivot only. An offset hung lead-lined door still needs a top pivot and a bottom pivot (or a floor closer with an offset spindle) to hang, and the L019 is added between them for support. Work out the full arrangement before ordering so you do not end up with intermediates and nothing to hang the leaf on.
4) Can the Calibre PV1000 pivot set replace the ABH L019 one for one?
Not as a direct swap in every case. The PV1000 is a complete 3/4 inch offset flush pivot set, meaning a top and bottom assembly for hanging the door. The ABH L019 is an intermediate pivot - a mid-height support that mortises into the jamb and the hinge edge to carry tall or heavy door leaves, added in addition to the top and bottom pivots. If you are ordering intermediate support for a tall lead-lined leaf, the L019 is the item; a full pivot set is a different line item on the order.
5) Is the ABH L019 pivot Buy American compliant for a government or VA hospital job?
Yes, the L019 is BAA qualified, which is what a federal or VA project specification typically calls for. It is a commercial-grade, heavy duty item, so it also lines up with institutional MRO standardization on lead-lined openings.
6) What is the L019 pivot made of, and will it hold up on a high-traffic radiology door?
Stainless steel base material with heavy duty stainless steel needle bearings. The needle bearing is the reason it keeps turning smoothly under the weight of a lead-lined leaf instead of galling, and stainless suits wipe-down clinical environments. It is rated heavy duty for commercial use.
7) For a hospital standardizing pivot hardware across both lead-lined imaging doors and ordinary offset hung doors, how do the ABH L019 and BEST A3 divide up?
Use the ABH L019 where the leaf is lead-lined: it is a heavy duty stainless steel intermediate pivot with stainless needle bearings, UL Listed for 3-hour fire rated openings, supplied handed left or right and in offset hung configuration. Use the BEST A3 System offset hung pivot set on the general fire rated offset hung openings, since it is a fire rated set built for the same hang type. Both keep the facility on offset hung geometry, so door prep and swing behavior stay consistent across the building.
8) What finishes does the ABH L019 intermediate pivot come in?
Fourteen: painted aluminum, painted brass, painted bronze, painted black, painted dark bronze, painted white, satin bronze, oil rubbed bronze, bright chrome, bright brass, bright stainless steel, satin stainless steel, satin brass, and bright bronze. On an intermediate pivot most of the hardware buries in the mortise, so the usual reason to pick a specific finish is matching the exposed top and bottom pivots on the same leaf. Painted white or painted aluminum is the common choice on lead-lined hospital doors.
9) Is the ABH L019 an electrified pivot for power transfer through the door?
No. The L019 is a mechanical pivot with no electrical function, so it will not carry power to an electrified lock or exit device. If the lead-lined leaf needs power at the edge, that has to come from a separate power transfer device.
