Accentra 6160ED 36" Grade 1 Co...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,897.00
$1,115.88

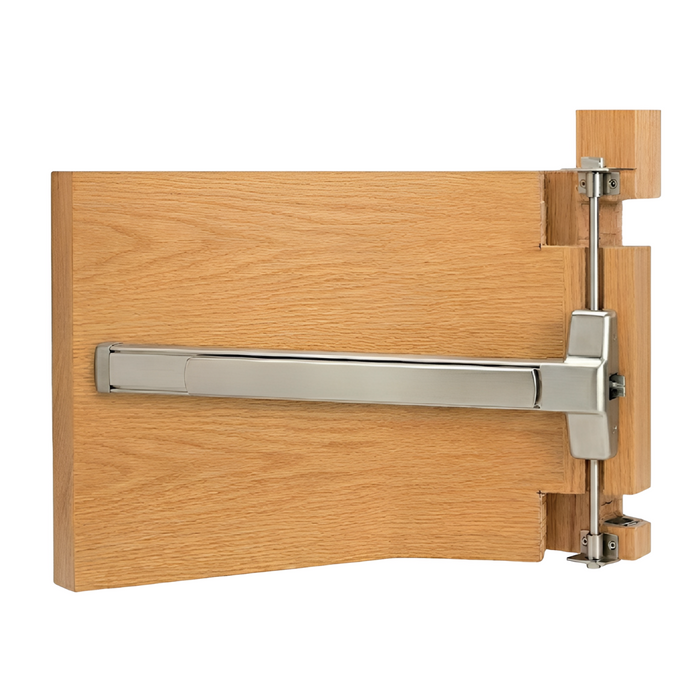

Accentra 6160ED 36" Grade 1 Concealed Vertical Rod Exit Bar, Wood Door, Wide Stile Pushpad

Accentra 6160ED 36" Grade 1 Concealed Vertical Rod Exit Bar, Wood Door, Wide Stile Pushpad

(No reviews yet) Write a Review

Model: 6160ED 36-7 630
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,897.00
$1,115.88
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Accentra 6160ED 36" Grade 1 Concealed Vertical Rod Exit Bar, Wood Door, Wide Stile Pushpad

Product Overview

Elevate your architectural openings with the sophisticated security of the Accentra 6160ED Concealed Vertical Rod (CVR) Exit Device. Combining top-tier ANSI/BHMA Grade 1 durability with sleek aesthetics, this heavy-duty crash bar is designed specifically for standard wide stile wood doors. By concealing the vertical locking rods within the core of the door, it provides a clean, streamlined appearance while offering superior two-point locking security (top and bottom) against tampering and unauthorized entry. Backed by the legacy of ASSA ABLOY Accentra (formerly Yale), the 6160ED is the ideal choice for high-traffic commercial, institutional, and educational facilities where both form and function are paramount.

Key Features & Benefits

  • Concealed Aesthetics: Rods and latches are entirely hidden within the wood door, providing a sophisticated, hardware-light appearance ideal for modern architectural designs.

  • Two-Point Locking Security: Deadlocking latches engage at both the top of the door frame and the floor/threshold, offering significantly higher resistance to prying or forced entry compared to single-point devices.

  • Grade 1 Performance: Certified to meet or exceed ANSI/BHMA A156.3, Grade 1 standards, guaranteeing millions of cycles of reliable operation in demanding environments.

  • Wide Stile Pushpad: Features a robust, full-width pushpad that accommodates standard wood door stile widths, providing a solid feel and intuitive operation during egress.

  • Quiet & Smooth: Precision engineering ensures the device operates smoothly and quietly, reducing the acoustic footprint of busy hallways and entrances.

  • Vandal Resistant: The concealed design removes external catch points and visible rods that could be tampered with or damaged by carts or traffic.

  • Non-Handed Design: Simplified field reversibility reduces stocking requirements and simplifies installation logistics (handed configurations available upon request).

  • 10-Year Limited Warranty: Your investment is protected by a decade of warranted performance from ASSA ABLOY.

Technical Specifications

  • Device Type: Concealed Vertical Rod (CVR) Exit Device

  • Device Length: 36" (Suitable for standard 3-foot wide doors; can be field-cut).

  • Stile Requirement: Wide Stile (Minimum 4-1/2" stile required for standard application on wood doors).

  • Door Type: Specifically engineered for Wood Doors (Requires proper internal door preparation/routing).

  • Grade: ANSI/BHMA A156.3, Grade 1 Certified.

  • Listing: UL/cUL listed for Panic Hardware.

  • Dogging: Standard Hex-key dogging (non-fire rated devices). Cylinder dogging optional.

  • Rods: Internal rods are concealed within the door core.

  • Latches: Top Latch engages header strike; Bottom Latch engages threshold/floor strike.

  • Finishes: available in a full range of architectural finishes (please specify at checkout).

Ideal Applications

  • Institutional Buildings (Schools, Universities)

  • Healthcare Facilities (Hospitals, Medical Centers)

  • Commercial Office Buildings with wood interior/exterior doors

  • Government and Public Buildings

  • Theaters and Auditoriums

Recommended Complementary Products (Sold Separately)

  • Exterior Trim: Complete the operational loop with a wide selection of mechanical or electronic outer trim (levers, pulls, knob sets).

  • Cylinders: Standard or Interchangeable Core cylinders are required for locking functions and cylinder dogging.

  • Door Preparation: Note that CVR installation on wood doors requires specialized machinery or professional routing services.

Manufacturer Resources

Product Specs

Series:
6100ED Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Vertical Rod
Stile Width:
Wide Stile
Device Type:
Concealed Vertical Rod Device
Application:
Wood Doors Only
Features:
Designed for Wide Stile and Flush Doors; Bottom Deadbolt for Secure Latching; Fully Adjustable Roller Strike; 1/2" O.D. Telescoping Tubular Rods
Product Function:
Exit Only
Product Size:
36"
Fire Rating:
No
Product Category:
Exit Devices
Department:
Door Hardware
Product Type:
Surface Vertical Rod Devices

Accentra 6160ED 36-7 630 – Frequently Asked Questions

1) Will the Accentra 6160ED work on a hollow metal door, or is it wood only?
Wood doors only. The 6160ED is a concealed vertical rod device built specifically for wood door construction, and the rods and latches ride inside the door core, so it needs the door routed for that internal prep. On a hollow metal opening you want a device made for metal doors instead, not this one.
2) What is the minimum stile width for the 6160ED exit device?
It's a wide stile device, and standard application on a wood door calls for a minimum 4-1/2 inch stile. If your door has a narrower lock stile, such as an aluminum storefront, this pushpad won't land on it and you need a narrow stile device.
3) Can I use the Accentra 6160ED on a fire rated door?
No. The 6160ED is a non fire rated device, so it can't go on a labeled fire door assembly. It is UL/cUL listed as panic hardware for egress on non rated openings. For a labeled opening you need a fire exit hardware version, which also drops the hex dogging since fire devices can't be dogged.
4) My doors are 8 feet tall. Do I order a different 6160ED?
Yes, you pick the door height when ordering. The 6160ED 36 inch device comes configured for 7 foot, 8 foot, and 9 foot doors, which sets the length of the concealed rods. The 36 inch figure is the pushpad device length for a standard 3 foot wide door, not the door height, so those are two separate decisions.
5) Does the 6160ED lock from the outside, or do I need to buy trim separately?
As supplied it's exit only, meaning the pushpad releases the door from the inside and there's no outside operation built in. If you need a lever, knob, or keyed pull on the outside, that trim is ordered separately, and a cylinder is required for any locking function as well as for cylinder dogging if you choose that over the standard hex key dogging.
6) Do I need a floor strike for a concealed vertical rod exit device?
Yes, two points latch. The top latch engages a strike in the header and the bottom latch engages a strike at the threshold or floor, which is what gives the two point security against prying. The bottom is a deadbolt style latch with a fully adjustable roller strike, so you have some field adjustment for undercut and floor conditions.
7) Is the 6160ED handed, and can I stock one for both left and right doors?
Non handed as supplied, with field reversibility, so one device covers left and right hand openings. That's useful if you're buying for a building with mixed handing and want a single part on the shelf. Handed configurations are available on request if a job spec calls for one.
8) Concealed vertical rod versus surface vertical rod on a wood door, which should I use?
Concealed, like the 6160ED, hides the rods and latches inside the door core, so there's nothing on the face to be caught by carts or vandalized and the opening looks clean. The tradeoff is prep: the door has to be routed internally, which takes specialized machinery or professional routing, and service means getting back inside the door. A surface rod device mounts on the face of the door, installs with far less prep and is easier to retrofit to an existing wood door, but the rods are exposed. If the doors are already hung and unprepped, surface rods are the easier path.
9) Can I hold the 6160ED unlocked during business hours?
Yes. Standard hex key dogging lets you hold the pushpad depressed and the latches retracted so the door pushes freely during open hours, then you key it back to latching at close. Cylinder dogging is an option if you'd rather do it with a key than an Allen wrench, and that needs a cylinder ordered separately. Dogging is available because this is a non fire rated device.
10) Will a 36 inch exit device fit a door narrower than 3 feet?
The 36 inch 6160ED is sized for a standard 3 foot wide door and the device can be field cut for a narrower leaf. On a pair of doors, each leaf carrying a concealed vertical rod device latches independently at head and threshold, so you don't need a center mullion between them.
11) Will the Accentra 6160ED match the other exit devices in my building for grade and finish?
The 6160ED is certified to ANSI/BHMA A156.3 Grade 1, the heavy duty commercial tier, so it standardizes against other Grade 1 devices on your other openings. Finish offered is 630 satin stainless steel, which is the common commercial stainless look and pairs with most 630 closers, pulls, and hinges already on institutional and healthcare doors.
