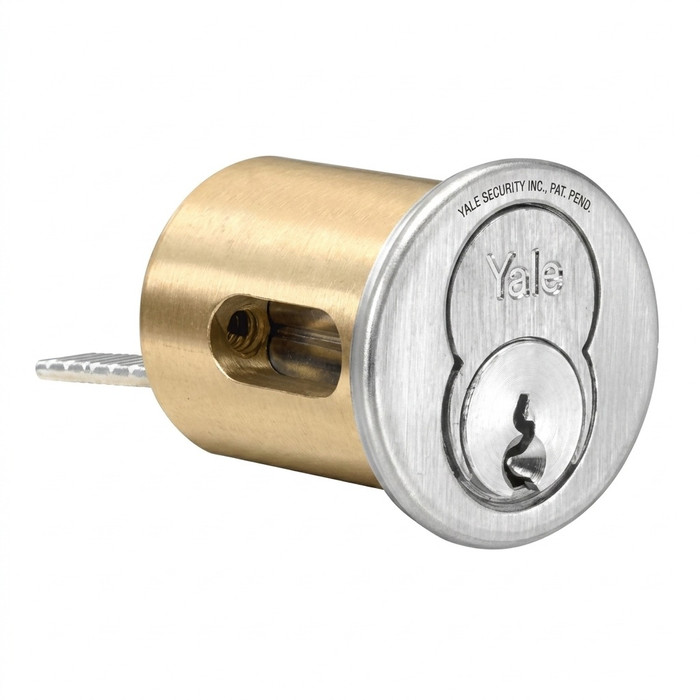

Yale LFIC Rim Cylinder w/Core, 6 or 7-Pin, PARA Keyway

Accentra 1193 Large Format Interchangeable Core Rim Cylinder with PARA Keyway

(No reviews yet) Write a Review

Model: 1193 6 PARA 626 KA
$220.78
$129.08
Selected Model is
Selected Finish is
Selected Keyed Option is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$220.78
$129.08
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Accentra 1193 Large Format Interchangeable Core Rim Cylinder with PARA Keyway

Professional LFIC Cylinder Solution for Commercial Applications

The Accentra 1193 Large Format Interchangeable Core (LFIC) Rim Cylinder delivers professional-grade security for commercial door hardware applications. This cylinder features PARA keyway configuration and accommodates both 6-pin and 7-pin core options for flexible keying requirements. Available in keyed different or keyed alike configurations to meet specific access control needs.

Professional Features & Benefits

  • Large Format Interchangeable Core Design: LFIC construction allows for quick core changes without removing the cylinder from the door for enhanced security management.
  • Flexible Pin Configuration: Accommodates both 6-pin and 7-pin cores to meet varying security levels and keying system requirements.
  • PARA Keyway System: Compatible with PARA keyway standards for integration with existing keying systems and master key hierarchies.
  • Keying Options: Available in keyed different or keyed alike configurations to support diverse access control strategies.
  • Rim Cylinder Configuration: Designed specifically for rim-mounted applications on commercial doors and exit devices.
  • Commercial-Grade Construction: Engineered for demanding commercial environments where reliable access control is essential.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Cylindrical Locks
  • Product Group: Parts and Accessories
  • Product Subgroup: Cylinders
  • Product Type: Cylinder Housing

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness and rim cylinder mounting location.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door surfaces.
  3. Prepare door by drilling required holes per manufacturer specifications for rim cylinder installation.
  4. Install mounting hardware and secure the cylinder to door per manufacturer torque specifications.
  5. Insert appropriate LFIC core (6-pin or 7-pin) and verify proper engagement with cylinder mechanism.
  6. Test cylinder operation with appropriate keys to verify proper function and core retention. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Accentra Quality?

Accentra cylinder products deliver professional-grade reliability with Large Format Interchangeable Core technology designed for commercial security applications. The flexible pin configuration and PARA keyway compatibility provide versatile integration options for comprehensive access control systems. Engineered for demanding commercial applications where dependable security performance is essential.

Manufacturer Resources

Cylinders and Keying Catalog

Product Specs

Product Type:
Cylinder Housing
Commercial/Residential:
Commercial
Product Group:
Parts and Accessories
Product Subgroup:
Cylinders
Product Category:
Cylindrical Locks
Department:
Door Hardware

Accentra 1193 6 PARA 626 KA – Frequently Asked Questions

1) Will the Accentra 1193 rim cylinder work with my existing Yale/Accentra PARA master key system?
The 1193 is cut for the PARA keyway, so it drops into an existing PARA keying system and master key hierarchy. If the building is keyed on a different Accentra keyway, this housing is the wrong one to order. Keyed different and keyed alike are both offered, so you can pull single-tenant doors off the master or group a set of doors on one key.
2) Should I order the 6-pin or the 7-pin version of the Accentra 1193?
Match whatever pin stack the rest of the facility already runs. The 1193 housing accepts both 6-pin and 7-pin large format interchangeable cores, so the choice is driven by your existing system: 7-pin gives more master key levels and change key combinations for a larger hierarchy, 6-pin is the common commercial stack. Mixing stacks on one system means keys will not cross, so pick the one your keying schedule is built on.
3) Can I use this cylinder on an exit device?
Yes, that is the main use. A rim cylinder mounts through the door from the outside face and drives the exit device's rim mechanism with a tailpiece, which is why the 1193 is built in rim configuration rather than mortise. It is not a mortise cylinder and will not thread into a mortise lock case.
4) I need an interchangeable core housing for a mortise lock, not a rim device. Is the 1193 the right part?
No. The 1193 is a rim cylinder and only fits rim applications. For a mortise prep, look at a large format IC mortise housing such as the Kaba Ilco S26506 Mortise LFIC convertible housing. If your system runs small format cores rather than large format, the Kaba Ilco R2800 Series is a small format IC convertible housing.
5) What is the difference between the Accentra 1193 rim cylinder and the Kaba Ilco S26506 large format IC housing?
Both accept a large format interchangeable core, but they mount differently. The Accentra 1193 is a rim cylinder, designed for rim-mounted applications on commercial doors and exit devices, and comes with a PARA keyway in 6-pin or 7-pin core configurations. The Kaba Ilco S26506 is a mortise function LFIC convertible housing sized for Schlage format cores, so it threads into a mortise lock body or mortise cylinder prep rather than sitting behind a rim device. If the door is prepped for a rim exit device, the 1193 is the rim-side part; if the opening uses a mortise lock, the S26506 is the mortise-side housing.
6) What does large format interchangeable core actually get me over a standard keyed cylinder?
Rekeying speed. With the 1193 LFIC housing, a control key pulls the core straight out of the cylinder and a new core drops in, so you re-key a door without removing the cylinder from the door or taking the exit device apart. For a property manager handling tenant turnover or a lost master, that is a minutes-per-door job instead of a locksmith visit with a pinning kit.
7) Is the core included or do I have to buy it separately?
The 1193 is supplied as an LFIC rim cylinder with core, in the PARA keyway, keyed alike or keyed different as you specify at order. You are not buying a bare housing that needs a core sourced separately.
8) What is the difference between keyed alike and keyed different when I order several of these?
Keyed different means every cylinder ships on its own unique key, which is what you want for individual tenant or office doors. Keyed alike means the group you order all operate on one common key, useful for a run of stairwell, storage, or mechanical room doors a single staff key should open. Both are offered across all seven finishes and both pin counts on the 1193.
9) I need an LFIC cylinder that can be converted to a conventional cylinder - is the Accentra 1193 that part?
The Accentra 1193 is a large format interchangeable core rim cylinder with a PARA keyway, sold in 6-pin and 7-pin core configurations and keyed alike or keyed different. If your requirement is specifically a convertible housing, the Kaba Ilco S26506 is described as a large format IC core convertible housing in the Schlage size, and the Kaba Ilco R2800 series is the small format equivalent. Choose the 1193 when you want a rim cylinder running on PARA, and the Ilco convertible housings when the job calls for a convertible construction.
10) What finishes does the Accentra 1193 rim cylinder come in, and can I match the rest of my exit device hardware?
Seven finishes: 605 bright brass, 606 satin brass, 612 satin bronze, 643E aged bronze, 619 satin nickel, 625 bright chrome, and 626 satin chrome. For most commercial openings the exit devices are 626 satin chrome, so that is the usual match. All seven are available in both 6-pin and 7-pin, keyed alike or keyed different.
