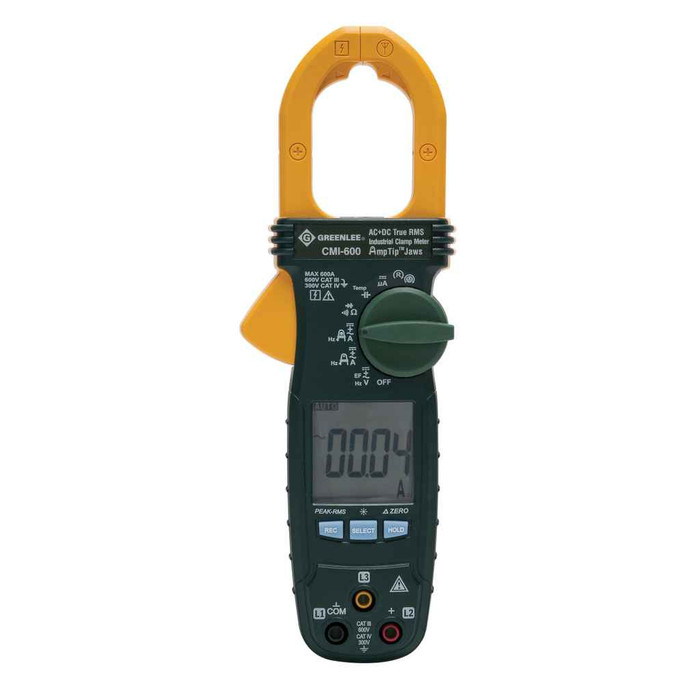

Greenlee 52066375 AC/DC Clampmeter

Greenlee 52066375 AC/DC Clampmeter

(No reviews yet) Write a Review

Model: 52066375
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$565.30
$515.30
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
AC/DC Clampmeter

52066375 - spec sheet

Manufacturer Resources

Spec Sheet

Product Specs

Amperage Measurement:
60, 600 Amps AC+DC
Country Of Origin:
TW
Display:
LCD, 6000 Count
Jaw Opening:
1.18'' (30 mm)
Measurement Category:
CAT III 600V, CAT IV 300V
Packaged Weight:
1.495
Product Height:
2.8 IN
Product Length:
11.9 IN
Product Width:
5.5 IN
Replacement Part:
02714 test leads and clips, TC-10 carrying case
Resistance Measurement:
600, 6k, 60k Ohms
Standards:
CAT III, C/US UL Listed, CE
True Power:
AC+DC True RMS
Voltage Measurement:
600 Volts AC+DC
Volume:
183.26 CI
Product Type:
Meter Socket
Department:
Electrical
Product Subgroup:
Tools & Testing

Greenlee 52066375 – Frequently Asked Questions

1) Will the Greenlee 52066375 clamp meter read DC amps, or just AC?
Both. The 52066375 measures AC and DC current on 60 A and 600 A ranges, and it does it as AC+DC true RMS, so distorted waveforms on a VFD or electronic ballast circuit read accurately instead of averaging low. Voltage is also AC+DC to 600 V.
2) How big a conductor will the jaw of the Greenlee 52066375 fit around?
The jaw opens 1.18 inches (30 mm). That clears typical branch-circuit and feeder conductors and most single large cables up through roughly that diameter, but it will not go around a bundled multi-conductor run or a bus bar wider than 30 mm. For anything larger you need a larger-jaw or flexible-coil clamp.
3) Can this clamp meter measure current on a variable frequency drive output?
Within limits. On the high current ranges the 52066375 is specified from 50 to 400 Hz, so drive output frequencies inside that band read correctly. Voltage and AmpTip current measurement is specified at 50/60 Hz only, so use the clamp jaw rather than AmpTip for off-line-frequency work. True RMS on AC+DC helps with the non-sinusoidal waveform.
4) Is the Greenlee 52066375 UL listed for facility and institutional use?
Yes. It carries C/US UL Listing plus CE marking and is built to CAT III. That covers the usual requirement for listed test instruments in institutional and MRO tool programs. Country of origin is Taiwan.
5) What comes in the box with the 52066375, or do I need to buy leads separately?
Leads are included. The kit ships with test leads and clips, a carrying case, and two 1.5V AAA batteries, so it is ready to use out of the box. Replacements are available as the 02714 test leads and clips and the TC-10 carrying case.
6) Can I use the Greenlee 52066375 to troubleshoot low-current control circuits, not just feeders?
Yes. It has a 60 A range in addition to the 600 A range, plus AmpTip measurement for small currents, so control and signal circuits are in reach without swapping meters. It also reads resistance at 600, 6k and 60k Ohms for continuity and coil checks on contactors and solenoids.
7) How fine a reading does the display give on the Greenlee 52066375?
It uses a 6000 count LCD. On the 60 A range that means resolution down to hundredths of an amp, which is enough to see small load changes rather than a rounded whole number, and it reads to 600.0 on the higher range.
8) Is the 52066375 clampmeter light enough to carry on the belt all day?
Packaged weight is 1.495 pounds for the meter, leads and case together, and the packed kit measures 11.9 by 5.5 by 2.8 inches. It travels in its own carrying case rather than on a belt clip, so it is a bag or van tool.
