ACSI 1550K-MDO Electric Motor ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$740.00
$441.89

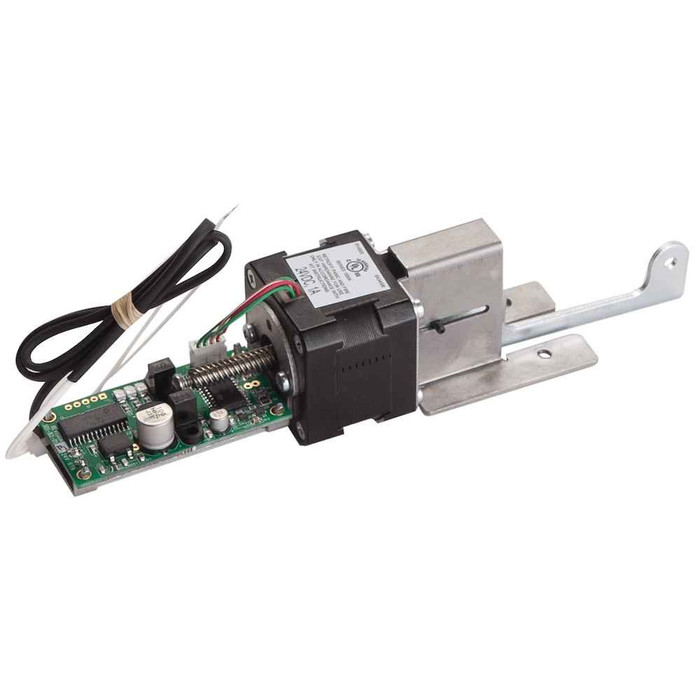

ACSI 1550K-MDO Electric Motor Latch Retraction Modification Kit for Falcon 1690 and 1790 — circuit board, motor assembly, and mounting hardware shown

ACSI 1550K-MDO Electric Motor Latch Retraction Modification/Kit for Falcon 1690, 1790

(No reviews yet) Write a Review

Model: 1550K-MDO
From the 1500 Series Collection

In Stock (leaves warehouse same day if ordered before 3pm ET)

$740.00
$441.89
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

ACSI 1550K-MDO Electric Motor Latch Retraction Modification Kit for Falcon 1690, 1790

The ACSI 1550K-MDO is an electric motor latch retraction modification kit from the 1550K Series, engineered for retrofit into Falcon 1690 and 1790 series exit devices. The kit enables both motorized latch retraction and dogging functions, supporting access-controlled doors on commercial egress systems. UL Listed for panic and fire-rated exit hardware; suitable for field or factory installation.

Key Features

  • Simultaneous electronic latch retraction and dogging (push bar depressed)
  • UL Listed for panic and fire-rated exit hardware
  • 24VDC operation
  • Interfaces with fire alarm and life-safety systems
  • Compatible with Falcon 1690 and 1790 exit devices

ACSI 1550K Series Reference

  • 1550K-MDV / MDV22 - Von Duprin 33A/35A/98/99, 22
  • 1550K-MDC - Corbin Russwin ED4000 / 5000, Yale 7000
  • 1550K-MDD / MDT / MDS / MDP / MDF / MDH / MDX / MDO - Dorma, Hager, Sargent, Precision, Falcon, Design Hardware, Dorex
  • 1550K-VD - Solenoid kit for Von Duprin 33/35, 98/99

Product Specs

Subcategory:
Electric Motor Latch Retraction
Series:
1500 Series
Collection:
1500 Series
Product Type:
Electric Motor Latch Retraction Kits
Compatibility:
Falcon 1690 Series, 1790 Series
Warranty:
1 Year
Product Group:
Electronic Access Controls
Product Subgroup:
Parts and Accessories
Commercial/Residential:
Commercial
Electronic:
Yes
Lock Function:
Part/Component
Parts and Accessories Type:
Replacement Parts
Product Attribute:
Parts and Accessories
Tags:
1550k mdo, 1550k, electronic latch retraction
Product Function:
Part/Component
Electrical Configuration:
Motorized Latch Retraction
Product Category:
Electronic Access Controls
Department:
Door Hardware

ACSI 1550K-MDO – Frequently Asked Questions

1) Will the ACSI 1550K-MDO fit a Falcon 25 or 24 series exit device, or only the 1690 and 1790?
The 1550K-MDO is built for Falcon 1690 Series and 1790 Series exit devices only. If the device on your door is a different Falcon family, this kit is not the one. ACSI builds the 1550K around the host device, so the suffix has to match the brand and series you are retrofitting: MDV covers Von Duprin 33A/35A/98/99 and 22, MDC covers Corbin Russwin ED4000/ED5000 and Yale 7000. Confirm the model stamped on the device before you order the suffix.
2) What voltage does the ACSI 1550K-MDO latch retraction kit run on?
24VDC. That is the supply you need to size at the power supply and pull to the door, typically through a door loop or transfer hinge. The retraction is motorized rather than solenoid driven, so plan the circuit for a motor load on the 24VDC side.
3) Can I use the ACSI 1550K-MDO on a fire rated door?
The kit is UL Listed for panic and fire rated exit hardware, so it is suitable for a fire door opening. It also interfaces with the fire alarm and life safety system, which is what lets the latches drop back in on alarm as a fire door has to.
4) Does the 1550K-MDO give me electric dogging as well as latch retraction on a Falcon 1690?
Both, at the same time. The kit does electronic latch retraction and dogging simultaneously with the push bar depressed, so you can hold the opening in a push/pull state during business hours off a schedule or a card reader, then let it relatch after hours. That is the difference between this and a plain electric strike approach, where the device still latches every time the door closes.
5) Do I have to buy a new Falcon exit device, or can the existing one be converted to electric latch retraction?
The existing device gets converted. The ACSI 1550K-MDO is a modification kit that retrofits into a Falcon 1690 or 1790 already on the door, and it can be installed in the field or done at the factory. For a property manager or contractor with devices already hung and working, that keeps the door, the frame prep and the trim as they are, and the work becomes electrical rather than hardware replacement.
6) Is the ACSI 1550K-MDO a motor kit or a solenoid kit?
Motor. The MDO is electric motor latch retraction, which is the quieter and lower-current-draw approach compared with a solenoid pull. ACSI's solenoid version in the same family is the 1550K-VD, and that one is built for Von Duprin 33/35 and 98/99, not Falcon.
7) What is the ACSI part number for motorized latch retraction on Sargent or Precision exit devices?
All of those sit in the same 1550K family, split out by suffix: the MDD, MDT, MDS, MDP, MDF, MDH, MDX and MDO kits cover Dorma, Hager, Sargent, Precision, Falcon, Design Hardware and Dorex. MDO is the Falcon 1690/1790 kit. If you are standardizing motorized latch retraction across a building with mixed exit device brands, you order the matching suffix per device rather than one universal kit.
8) What actually comes in the ACSI 1550K-MDO kit?
The 1550K-MDO ships as a modification package: the control board, the motor assembly and the mounting hardware that goes into the Falcon device. It is a component kit, not a complete exit device, so the host 1690 or 1790 and the 24VDC power supply and access control interface are separate.
9) Is the ACSI 1550K-MDO suitable for a residential door?
No. The 1550K-MDO is commercial hardware, made to modify Falcon 1690 and 1790 panic devices on code-required egress openings. There is no residential application for it, and it only has a job to do where a listed exit device is already installed.
How fast can I get the ACSI 1550K-MDO delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the ACSI 1550K-MDO come with a warranty?
Absolutely. The ACSI 1550K-MDO is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the ACSI 1550K-MDO?
You can call, text, or email our expert support team for fast answers. We’re here to help with product selection, installation tips, and troubleshooting. Contact Us
