ACSI 1550K-MDS Electric Motor ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$770.00
$532.32

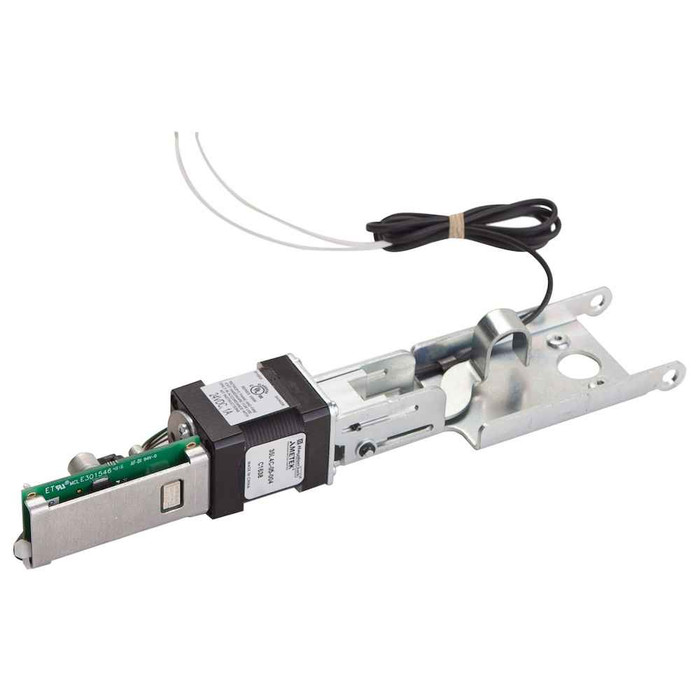

ACSI 1550K-MDS Electric Motor Latch Retraction Kit for Sargent 80, Arrow 1000, 3000, 4000 - motor, circuit board, mounting bracket, and lead wires shown

ACSI 1550K-MDS Electric Motor Latch Retraction Kit for Sargent 80, Arrow 1000, 3000, 4000

(No reviews yet) Write a Review

Model: 1550K-MDS
From the 1500 Series Collection

In Stock (leaves warehouse same day if ordered before 3pm ET)

$770.00
$532.32
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

ACSI 1550K-MDS Electric Motor Latch Retraction Kit

For Sargent 80; Arrow 1000, 3000, 4000

The ACSI 1550K-MDS is part of the widely trusted 1550K Series of motorized electric latch retraction kits, engineered specifically for Sargent 80 and Arrow 1000, 3000, and 4000 series exit devices. This modification provides simultaneous latch retraction and dogging in one integrated system.

Built to UL standards, the 1550K-MDS supports secure, electrified egress across commercial, institutional, and high-traffic facilities. Whether field- or factory-installed, this solution brings low power consumption and consistent operation to your access control strategy.

Key Product Features

  • Simultaneous electric latch retraction and dogging (push bar depressed)
  • UL Listed for panic and fire exit applications
  • Compatible with mortise, rim, concealed, and surface vertical rod configurations
  • Field or factory installation options
  • Quiet operation, continuous duty rated
  • Low power consumption - 24VDC operation
  • On-board diagnostic LEDs, automatic retry
  • Non-polarized leads
  • Interfaces with life-safety and alarm systems
  • Recommended with ACSI Series 1400 power supplies

ACSI 1550K Electric Latch Retraction Series Compatibility

  • 1550K-MDV / MDV22 - Von Duprin 33A/35A, 98/99, 22
  • 1550K-MDC - Corbin Russwin ED4000, ED5000; Yale 7000
  • 1550K-MDS - Sargent 80; Arrow 1000, 3000, 4000
  • 1550K-MDP / MDF / MDD / MDO / MDX / MDT / MDH - Precision, Falcon, Dorma, Dorex, Hager, and more
  • 1550K-VD - Electric Solenoid Latch Kit for Von Duprin

The 1550K Series continues to set the industry standard for reliable retrofit and factory-installed electric latch retraction modifications.

Product Specs

Subcategory:
Electric Motor Latch Retraction
Series:
1500 Series
Collection:
1500 Series
Product Type:
Electric Motor Latch Retraction Kits
Compatibility:
Sargent 80; Arrow 1000, 3000, 4000
Warranty:
1 Year
Product Group:
Electronic Access Controls
Product Subgroup:
Parts and Accessories
Electronic:
Yes
Commercial/Residential:
Commercial
Lock Function:
Part/Component
Parts and Accessories Type:
Replacement Parts
Product Attribute:
Parts and Accessories
Tags:
1550k
Product Function:
Part/Component
Electrical Configuration:
Motorized Latch Retraction
Product Category:
Electronic Access Controls
Department:
Door Hardware

ACSI 1550K-MDS – Frequently Asked Questions

1) Will the ACSI 1550K-MDS electric latch retraction kit fit my Sargent 80 series exit device?
Yes. The 1550K-MDS is the version of ACSI's motorized latch retraction kit built for Sargent 80 series devices, and the same kit covers Arrow 1000, 3000 and 4000 series exit devices. Within those families it works across device configurations, so a rim device, a mortise exit device, a surface vertical rod or a concealed vertical rod can all be modified with it. What it will not do is cross brands. If the opening has a Von Duprin, Corbin Russwin, Yale, Precision, Falcon, Dorma, Dorex or Hager device on it, you need a different suffix in the 1550K family, not the MDS.
2) I have Von Duprin 99 exit devices. Can I use the 1550K-MDS on them?
No, and this is the most common mis-order in the 1550K line. The MDS suffix is cut for Sargent 80 and Arrow 1000, 3000 and 4000 devices only. For Von Duprin 33A/35A, 98/99 or 22 devices, the motorized kit is the 1550K-MDV, with the MDV22 covering the 22 series. ACSI also builds a solenoid latch retraction kit for Von Duprin, the 1550K-VD, if a solenoid is what the job calls for. Match the suffix to the device brand before you order.
3) Does the ACSI 1550K-MDS replace my exit device, or does it go inside the one I already have?
It modifies the device you already have. The 1550K-MDS is a motor, control board, mounting bracket and lead wires that install into an existing Sargent 80 or Arrow 1000/3000/4000 exit device to add electric latch retraction. You keep the device, the trim and the door prep. It can be done in the field on hardware that is already hung, or ordered factory-installed if you would rather the modification arrive done. Nothing about the mechanical panic function of the device changes; you are adding an electrified way to pull the latch back.
4) Can electric latch retraction be used on a fire rated exit device instead of dogging it?
That is exactly what it is for. Fire exit hardware cannot be mechanically dogged, so if you need a fire rated opening to sit in a push-pull state during business hours, electric latch retraction is the method. The ACSI 1550K-MDS is UL Listed for panic and fire exit applications and holds the latch retracted with the push bar depressed, giving you retraction and dogging at the same time under electrical control. Release the power and the device relatches and behaves as normal panic hardware.
5) What power supply do I need to run an ACSI 1550K-MDS latch retraction kit?
The 1550K-MDS runs on 24VDC and draws low current, since the motor only pulls hard during the retraction stroke and then holds. ACSI recommends pairing it with their Series 1400 power supplies. The leads are non-polarized, so you are not chasing polarity in the raceway during hookup, and the kit is rated for continuous duty, meaning it can stay retracted through a full unlock schedule rather than a short cycle. Size the supply for every device on the circuit, not just one leaf.
6) Will an electric latch retraction kit work on a pair of doors with vertical rods?
Yes. The ACSI 1550K-MDS covers surface vertical rod and concealed vertical rod configurations as well as rim and mortise exit devices, within the Sargent 80 and Arrow 1000/3000/4000 families. On a vertical rod pair, each leaf gets its own kit and its own power feed, because each device has to retract its own top and bottom latches. Plan the wiring for both leaves and size the power supply for the pair.
7) Can the 1550K-MDS be tied into a card reader and the fire alarm so the doors relock on alarm?
It is built to sit in that chain. The ACSI 1550K-MDS interfaces with life-safety and alarm systems, so a fire alarm relay or an access control output can drop power and put the device back into latched panic operation. Typical wiring runs the access control relay or the timer in the 24VDC feed to the kit, with the fire alarm interposing relay ahead of it so an alarm condition always wins. Since the leads are non-polarized, the hookup is straightforward at the device end.
8) Motorized or solenoid latch retraction, which one should I put on an exit device?
Motorized is the quieter, lower-draw choice, and it is what the ACSI 1550K-MDS uses. A motor pulls the latch back and holds it with far less current than a solenoid, runs quietly, and is rated for continuous duty, so it suits a lobby door that stays unlocked all day and an office corridor where a solenoid buzz would be noticed. Solenoid kits still have a place on retrofits already wired for one; ACSI's solenoid option in this family is the 1550K-VD for Von Duprin. For Sargent 80 and Arrow 1000/3000/4000, the motorized MDS is the kit.
9) Can a locksmith install the ACSI 1550K-MDS on devices that are already on the building, or does the hardware have to go back to the factory?
Both routes are open. The 1550K-MDS is offered as a field-installed modification to exit devices already hanging on the opening, or as a factory installation if the devices are being ordered new. Field work means pulling the cover off the Sargent 80 or Arrow device, fitting the motor and board with the supplied bracket, and running the 24VDC leads through an electric hinge or power transfer to the frame. On an occupied building, the field kit avoids taking the opening out of service while hardware travels.
10) My electric latch retraction is not pulling the latch back. Is there any way to tell what is wrong at the door?
The ACSI 1550K-MDS carries on-board diagnostic LEDs on its control board, so a tech at the door can see whether the board is powered and what state it is in rather than guessing between a supply problem and a motor problem. It also has automatic retry, so a stroke that fails once, usually from a binding door or a latch under pressure, is attempted again instead of leaving the device stuck. Most call-backs on these come down to voltage drop on a long 24VDC run or a door that is not closing square.
11) Is the ACSI 1550K a commercial grade kit for a high traffic building, or a light duty product?
Commercial. The 1550K-MDS is specified for commercial and institutional buildings and high-traffic openings, and it is rated for continuous duty rather than intermittent cycling, which is what a school entrance or a hospital corridor on an all-day unlock schedule needs. Quiet operation matters in the same buildings, since a device retracting hundreds of times a day next to a reception desk gets noticed. It is UL Listed for panic and fire exit applications.
