ACSI M1520MLR LMR L9070B Motor...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$2,150.00
$1,361.76

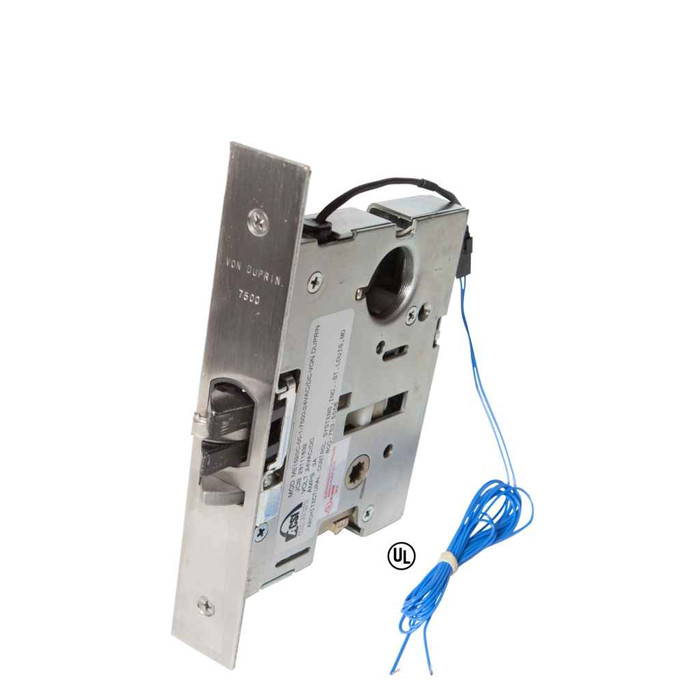

ACSI M1520MLR LMR L9070B Motorized Latch Retraction for Schlage L9070 Mortise Lock, Fail Secure, 12/24VAC/DC, Latchbolt Monitor Retracted

ACSI M1520MLR LMR L9070B Motorized Latch Retraction for Schlage L9070 Mortise Lock, Fail Secure, 12/24VAC/DC, Latchbolt Monitor Retracted

(No reviews yet) Write a Review

Model: M1510MLR-LMR-L9070B-24V
From the 1500 Series Collection

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,150.00
$1,361.76
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

ACSI M1520MLR LMR L9070B Motorized Latch Retraction for Schlage L9070 Mortise Lock, Fail Secure, 12/24VAC/DC, Latchbolt Monitor Retracted

M1520M-AE-1-8205-LW1-H Sargent 8200 Series Office, Entry Mortise Lever Lock Fail Secure LW1 Escutcheon Design Authorized Egress, Handed. Sargent 8200 Series Office or Entry Mortise Lever Lock Modified with Fail Secure Operation (Power Unlock), Standard Control Locks Outside (Secure Side) Trim, Motor Controlled, Less Cylinder.

ACSI Series 1500 Electric Mortise Locks provide safety and security for stairtower doors or controlled areas where both locking and latching are required. The locks are available in motor-controlled or solenoid-controlled to allow remote electric locking or unlocking while conforming to life-safety codes.

Features

Fail Safe (Power Lock)

  • Outside trim is locked when power is applied and unlocked when power is removed. Lockset will unlock in the event of a power failure.

Fail Secure (Power Unlock)

  • Outside trim is unlocked when power is applied and locked when power is removed. Lockset will lock in the event of a power failure.

Continuous duty rated

  • Low power consumption
  • 24VDC, 24VAC, 12VDC, or 12VAC operation
  • Interface with life-safety systems

ACSI Series 1510/1520 Electric Mortise Exit Control modification provides a remote means of locking or unlocking mortise exit devices.



Manufacturer Resources

Product Specs

Series:
1500 Series
Collection:
1500 Series
Product Type:
Electronic Mortise Locks
Features:
Simple User Selectable Fail Safe/Fail Secure Operation in Motor Controlled Locks, Continuous Duty Rated, Low Power Consumption, Interface With Life Safety Systems
Subcategory:
Electrified Mortise Locks
Commercial/Residential:
Commercial
Electronic:
Yes
Lock Type:
Mortise
Handle Type:
Lever
Fail-safe / Fail-secure:
Field Selectable
Product Group:
Mechanical Locks
Product Subgroup:
Mortise Locks and Trim
Product Voltage:
12/24 VDC/VAC
Electrical Configuration:
Latchbolt Monitor
Product Category:
Mechanical Locks
Department:
Door Hardware

ACSI M1510MLR-LMR-L9070B-24V – Frequently Asked Questions

1) Will the ACSI M1520MLR work on a Schlage L9070 mortise lock?
That is exactly what it is built for. The M1520MLR LMR L9070B is a motorized latch retraction modification applied to a Schlage L9070 mortise lock, so the lock body itself is the L9070 and ACSI adds the motor and wiring to it. If your opening uses a different Schlage L-Series function, this is not the part, since the modification is tied to the L9070.
2) Does the ACSI 1500 Series electric mortise lock come fail safe or fail secure, and can I change it in the field?
Both, and you pick it on site. Fail safe and fail secure are field selectable on the motor controlled locks, so one unit covers either behavior. Fail safe means outside trim locks when power is applied and unlocks when power is removed, so the door unlocks on a power failure. Fail secure is the reverse: powered to unlock, locked when power drops. Stairtowers and egress paths usually drive that choice, so confirm which way your life safety plan calls for before you set it.
3) What voltage does the ACSI M1520 motorized mortise lock run on?
12 or 24 volts, AC or DC. The unit is ordered on a voltage option, either 12VAC/VDC or 24VAC/VDC, and each voltage is available in both the fail safe and fail secure configuration. It is continuous duty rated with low power consumption, so it can sit energized on an access control circuit all day without a duty cycle limit.
4) Does this ACSI electrified mortise lock report latch status back to the access control panel?
It does. The electrical configuration includes a latchbolt monitor, so the lock provides a signal on latchbolt position back to your panel or head end. That is what you want when the system has to prove a stairtower or controlled door actually relatched rather than just assuming the strike released. You will need to pull the monitor conductors along with the power pair when you spec the door cord or hinge transfer.
5) What do I have to specify when ordering the ACSI M1520MLR electric mortise lock?
Two things drive the order: the fail safe or fail secure configuration and the voltage, 12VAC/VDC or 24VAC/VDC. Those are the only two option axes, and all four combinations are offered. The lock is a lever trim mortise lockset, so the lever design and finish are part of the Schlage L9070 lock it is built on, and the cylinder is a separate line item on jobs like this.
6) Can this ACSI lock be tied into the fire alarm so the doors release on alarm?
Yes, the 1500 Series is built to interface with life safety systems, and that is the point of the field selectable fail safe setting. Set fail safe and dropping power on alarm unlocks the outside trim. Wire the lock power through a relay the alarm panel drops, and remember the choice of fail safe or fail secure has to match what the life safety drawings call for on that opening, not just what the access control integrator prefers.
7) Is the ACSI 1500 Series lock rated for commercial traffic or is it a residential product?
Commercial. The 1500 Series is a commercial electrified mortise lockset with lever trim, built on a mortise lock body rather than a cylindrical or tubular lock, and it is continuous duty rated for circuits that stay energized. Mortise construction is what institutional and multi-family facilities standardize on for stair and corridor doors that see constant use.
