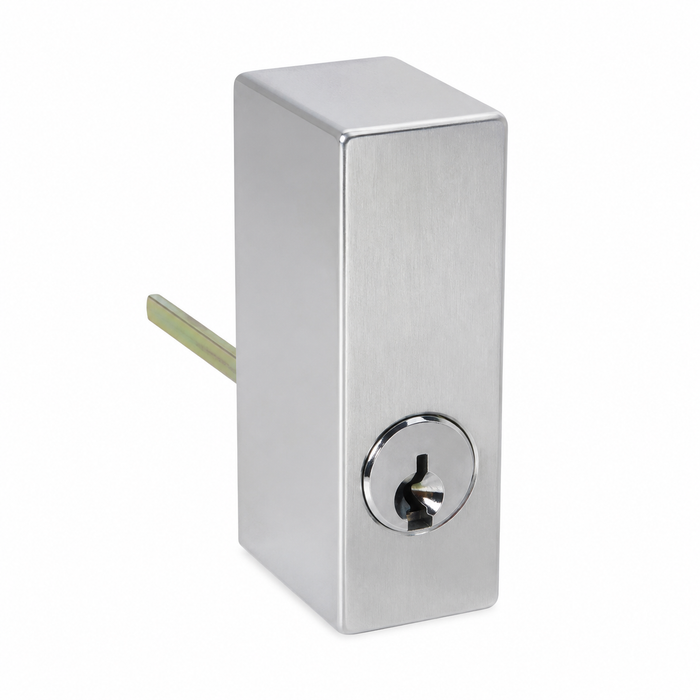

Adams Rite 4024 Cylinder Pull with Trim Plate Mounting for MS1847 Deadlock Systems

Professional Cylinder Pull for Commercial Sliding Door Applications

The Adams Rite 4024 Cylinder Pull is a five pin tumbler cylinder designed specifically for operation with Adams Rite MS1847 Deadlock/Deadlatch and 5017 Wood Door Deadlock/Deadlatch systems. This symmetrical cylinder pull features a compact design smaller than the 4025 model, making it ideal for trim plate mounting applications. The zinc alloy housing with brass cylinders provides durable construction for commercial sliding door installations where keyed access coordination is required.

Professional Features & Benefits

  • Standard, low-profile, Centro, Aventura, and Curve designer handle styles
  • For Adams Rite deadlocks, deadlatches, and exit devices
  • Narrow stile aluminum door applications
  • Electrified trim options for 2190 Dual Force with 12/24 VDC
  • Paddle operator (4591) for ADA hands-free compliance
  • Multiple lever styles and finishes
  • Thumbturn options

Technical Specifications

  • Application: Narrow stile aluminum doors
  • Electrified option: 12/24 VDC (2190 Dual Force)
  • ADA: Paddle operator 4591 available
  • Finishes: US3, US4, US10B, US32, US32D

Installation & Operation

This cylinder pull accessory is designed for use with compatible Adams Rite MS1847 Deadlock/Deadlatch and 5017 Wood Door Deadlock/Deadlatch systems. Refer to the parent device installation instructions and manufacturer documentation for proper integration. Ensure compatibility with existing hardware before installation.

Professional Applications

  • Commercial Sliding Door Systems
  • Storefront Access Control
  • Office Building Interior Doors
  • Retail Security Applications
  • Educational Facility Access Points
  • Healthcare Institution Door Hardware
  • Multi-Tenant Building Access

Why Choose Adams Rite Quality?

Adams Rite cylinder pulls deliver professional-grade reliability with zinc alloy housing and brass cylinder construction engineered for demanding commercial applications. The 4024 model’s compact symmetrical design and MS1847 system compatibility ensure dependable keyed access control for sliding door installations where coordinated security is essential.

Product Specs

Product Group:
Parts and Accessories
Subcategory:
Cylinder and Accessories
Product Subgroup:
Parts and Accessories
Commercial/Residential:
Commercial
Product Model:
4024
Product Function:
Designed for use with Adams Rite MS1847 Deadlock/Deadlatch
Product Category:
Parts and Accessories
Product Substrate:
Zinc Alloy Housing. Brass Cylinders.
Department:
Door Hardware
Product Type:
Cylinders

Adams Rite 4024-00-01-130 – Frequently Asked Questions

1) Can I get the Adams Rite 4024 cylinder pull keyed to my Schlage master key system?
Yes. The 4024 is offered with a Schlage C keyway, which is the standard Schlage classic keyway, so it can be brought into an existing Schlage C system. A Weiser keyway version is the other choice. Both are available keyed alike or keyed different, so a run of storefront doors can be put on one key.
2) What do I have to specify when ordering an Adams Rite 4024 cylinder pull?
Three things: keyway, finish, and keying. Keyway is Schlage C or Weiser. Finish is 335 Black Anodized, 313 Dark Bronze Anodized, or 628 Clear Anodized. Keying is keyed alike or keyed different. Every one of those six keyway and finish combinations is offered both ways, so nothing on the order form limits the others.
3) Is a cylinder pull the same thing as a mortise or rim cylinder, or do I need one of those instead?
Not the same. The 4024 is a pull handle with the cylinder built into it, so one part gives you the grip and the keyed access on a narrow stile aluminum door. If what you need is only the keyed plug going into a lock body you already have, you want a mortise or rim cylinder instead, for example a Schlage 20-021 rim cylinder with vertical tailpiece cam or a Corbin Russwin 1000 Grade 1 mortise cylinder in 1-1/2 inch length with an A02 straight cam. Those drop into an existing lock; they do not give you anything to pull on.
4) Can I put an interchangeable core in the Adams Rite 4024 so my maintenance staff can rekey it?
No. The 4024 is a five pin tumbler cylinder pull in a fixed Schlage C or Weiser keyway, not an IC housing, so there is no core to pull and swap. If your facility standardizes on interchangeable core, that decision is made at the lock, not at this pull: BEST 1C Series standard 5-pin cores and the Schlage 20-057 6-pin FSIC rim cylinder with convertible tailpiece cam are the parts that give you core swapping.
5) What should I order if the opening needs a cylinder for a Schlage L9000 mortise lock rather than an Adams Rite deadlock?
Use the Corbin Russwin 1080, a Grade 1 Series 1-1/2 inch LFIC mortise cylinder with 6 pins and an A01 Schlage L cam, which is built for Schlage L9000 mortise locks. The Adams Rite 4024 cylinder pull is a five pin tumbler unit made to operate the Adams Rite MS1847 Deadlock/Deadlatch and 5017 Wood Door Deadlock/Deadlatch, so it belongs on the narrow stile aluminum openings running those locks.
6) What is the difference between the Adams Rite 4024 cylinder pull and a Schlage 20-021 rim cylinder?
They are different classes of part. The Adams Rite 4024 is a cylinder pull for narrow stile aluminum sliding doors, combining a five pin tumbler cylinder with a pull housing in zinc alloy with brass cylinders, and it is built to operate the Adams Rite MS1847 Deadlock/Deadlatch. The Schlage Commercial 20-021 is a rim cylinder with a 6-pin plug and a vertical tailpiece cam supplied with 2 keys, meant to be mounted behind a rim device and driven by that tailpiece. If the opening needs a pull the operator grips as well as a keyed cylinder, the 20-021 will not do that job.
7) I need a Schlage C keyway cylinder for a narrow stile door - is the Detex MC65 an alternative to the Adams Rite 4024?
Both are offered in Schlage C keyway, but they mount differently. The Adams Rite 4024 comes in a Schlage C keyway version and is a cylinder pull for MS1847 Deadlock/Deadlatch and 5017 Wood Door Deadlock/Deadlatch systems. The Detex MC65 is a 1-1/8 inch 6-pin mortise cylinder in Schlage C keyway, which threads into a mortise lock body rather than mounting as a pull. Choose the MC65 when the door already carries a mortise lock case, and the 4024 when the opening needs a keyed pull working an Adams Rite deadlock.
8) We key our buildings on BEST interchangeable cores - what is the closest option to the Adams Rite 4024?
The 4024 is a five pin tumbler cylinder pull supplied in Schlage C or Weiser keyway, so it does not accept an interchangeable core. For a facility standardized on small format interchangeable core, the BEST 1C Series standard 5-pin cylinder core and the BEST Peaks 1CB 150 Series interchangeable core cylinder are the parts that carry that keying system, and the BEST 1CDF is the drill resistant patented 7-pin brass version in the 150 Series. Those go into housings prepped for a BEST core, not into an Adams Rite cylinder pull.
9) Will the 4024 cylinder pull match my existing aluminum storefront doors?
The three finishes are all anodized aluminum finishes chosen to match storefront: 628 Clear Anodized for mill or silver frames, 313 Dark Bronze Anodized for bronze frames, and 335 Black Anodized for black frames. Those are the three colors most aluminum entrances are already in, so a property manager replacing one pull across a building can usually match without repainting anything.
10) I need hands free ADA operation on this door, does the 4024 cylinder pull do that?
No. A cylinder pull is a keyed pull, it does not give you a push or paddle action. Adams Rite covers that with the 4591 paddle operator for hands free ADA compliance, which is a separate device from the 4024. If the opening has to be operable without grasping, order the paddle, not the pull.
11) Can I use a Corbin Russwin 1000 mortise cylinder in place of the Adams Rite 4024?
No. The Corbin Russwin 1000 Grade 1 mortise cylinder is a 1-1/2 inch length cylinder with an A02 straight cam, and it screws into a mortise lock case that is threaded for it. The Adams Rite 4024 is a cylinder pull with trim plate mounting whose housing forms the door pull and which is made to operate the MS1847 Deadlock/Deadlatch. Nothing on a narrow stile aluminum door prepped for a 4024 will accept a threaded mortise cylinder body.
12) Is the Adams Rite 4024 the right part to rekey a knob or lever lock?
No. The 4024 is a cylinder pull for narrow stile aluminum doors running Adams Rite deadlocks and deadlatches. For knob and lever locks the replacement cylinders are the Kaba Ilco 1539 Series key-in-knob and lever universal cylinder, the Kaba Ilco 1599 key-in-knob replacement cylinder, the Kaba Ilco 1579 knob and lever cylinder for Sargent, and the Falcon A23161-05 G key in lever cylinder in the RU/T Series 6-pin G keyway, keyed different with 2 cut keys. For key-in-deadbolt work the Kaba Ilco 1549 Series covers that.
13) Our facility wants everything on one key system - how does the Adams Rite 4024 compare with a full size interchangeable core setup?
The 4024 is keyed at the cylinder: it is a five pin tumbler pull offered in Schlage C or Weiser keyway and in keyed alike or keyed different, so a set of them can be brought onto one key at the time of order. A full size interchangeable core program instead uses parts like the Schlage 20-057 6-pin FSIC rim cylinder with convertible tailpiece cam and 2 keys, or the 20-057-C full size interchangeable core cylinder in C keyway and 643E aged bronze, where the core itself is pulled and swapped with a control key. Both approaches key a building; they differ in whether rekeying means changing the core or repinning the cylinder.
14) I need a five pin retrofit cylinder for a residential handleset, not a storefront door - what takes the place of the Adams Rite 4024?
The 4024 is a commercial part for narrow stile aluminum doors. For handleset and deadbolt retrofits the Medeco 5-pin cylinders cover that work: the 1065140 is a 5-pin retrofit cylinder for the Arrow JL interconnected lock and the Emtek handleset and deadbolt outside cylinder, the 1065244 is a 5-pin rim lazy motion rim type cylinder with an Emtek tailpiece, and the 1075127 is a 5-pin rim type lazy motion single cylinder for handlesets and deadbolts. For Kwikset single cylinder deadbolts the Medeco 1012040 is a 6-pin lazy motion rim cylinder.
15) The inactive leaf does not need to be keyed - can I use a dummy cylinder instead of the Adams Rite 4024?
Where an opening needs the look of a cylinder without keyed operation, the BEST 12E Series dummy rim cylinder with a 1-5/32 inch diameter fills the prep without operating anything. The Adams Rite 4024 is the opposite case: a working five pin tumbler cylinder pull that operates the MS1847 Deadlock/Deadlatch, so it is the part to order on any leaf that actually has to lock and unlock.
16) Is the Adams Rite 4024 cylinder pull rated for commercial use or is it a residential part?
Commercial. It is specified for narrow stile aluminum door openings, the storefront and entrance doors found in retail, offices, schools, healthcare buildings and multi tenant properties, not for residential swing doors.
17) Where can I get install dimensions and the prep for the Adams Rite 4024?
Adams Rite publishes both the installation instruction sheet and the full product directory for the 4024, and ZenSupply carries both alongside the part. Pull the installation sheet for the trim plate prep and hole pattern before you cut the door, since the 4024 mounts through a trim plate rather than directly onto the stile face.
18) Does the Adams Rite 4024 finish range match a Corbin Russwin or Schlage cylinder on the same building?
The 4024 cylinder pull is supplied in anodized architectural finishes that suit aluminum storefront: 335 black anodized, 313 dark bronze anodized, and 628 clear anodized. Among the comparable cylinders, the Schlage 20-057-C is listed in 643E aged bronze. Anodized finishes are matched to the aluminum door and frame rather than to a lock trim finish, so on a storefront run the 4024 finish is chosen off the framing, not off the cylinders elsewhere in the building.
