Adams Rite 4591 Deadlatch Paddle for MS+1890, 2190 Deadlocks

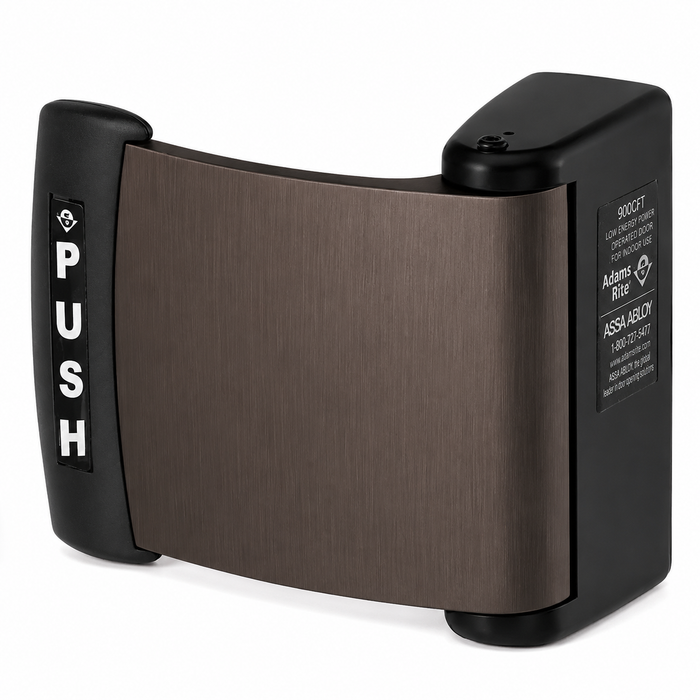

4591 DEADLATCH PADDLE

The 4591 Deadlatch Paddle is an ergonomicallyfriendly alternative to a knob or lever handle.
Operate with a simple push or pull.

FUNCTIONS

An alternative to knob or lever handles. Makes opening a latched
door as natural as opening an unlatched one – just push or pull in
the direction in which the door swings. Compatible with any Adams
Rite 4300, 4500 or 4900 Series Deadlatch, MS+1890 Deadlock/
Deadlatch, or 2190/2290 Interconnected Deadbolt/ Deadlatch.

OPERATIONS

• Available in four configurations: push left, push right, pull left, and pull right.

FEATURES

Paddle - Extruded aluminum.
Escutcheons - Zinc alloy with black finish. Secured to door stile with special binder posts that extend into the escutcheon to rigidly resist torque loads in any direction.
Cam Plug -  Furnished for use with 4300, 4500 and 4900 Series Deadlatches. Cam plug not for use with MS+1890 Deadlock/Deadlatch or 2190/2290 Interconnected Deadbolt/ Deadlatch. Secured in latch body by cylinder set screw, plug is also rigidly tied to escutcheon by hardened steel pins.
Monitor Switches
4591M: Paddle without latch drive mechanism but with switch that can be wired to make or break a low voltage circuit.
4591MA: Paddle with latch drive mechanism, complete active paddle with switch.
91-0914 Monitor Switch Kit: Adds monitor switch function to 4591 Paddle for "push" version only. Paddle Dogging “PUSH” version only: Turning hex key in escutcheon holds the paddle down, leaving door freeswinging. Dogging key provided.
Standard Package
Individually boxed with mounting hardware. Units for 4300, 4500 or 4900 Series
Deadlatches include cam plug.
Shipping weight
1-1/2 lb [0.68 kg].
Options

• First dash number specifies
operation, handing and compatible
latch. If required, use second
dash number to specify nonstandard units for doors thicker
than 1-3/4" [44.5 mm]. Please see
configuration table or contact
factory for more information.
• 4591M Paddle switch to actuate
magnetic lock, alarm, etc. No
latch retracting mechanism.
• 4591MA Active paddle with switch
and latch retracting mechanism.
• 4781 Two-Point Deadlatch
uses a modified, but matching
version of the 4591 Paddle.
• Available in choice of 313 Dark
bronze anodized, 335 Black
anodized, 628 Clear anodized.
US3 (605) Bright brass, and
US26D (626) Satin chrome special
finishes are also available
