Adams Rite
5500 DEADLOCK

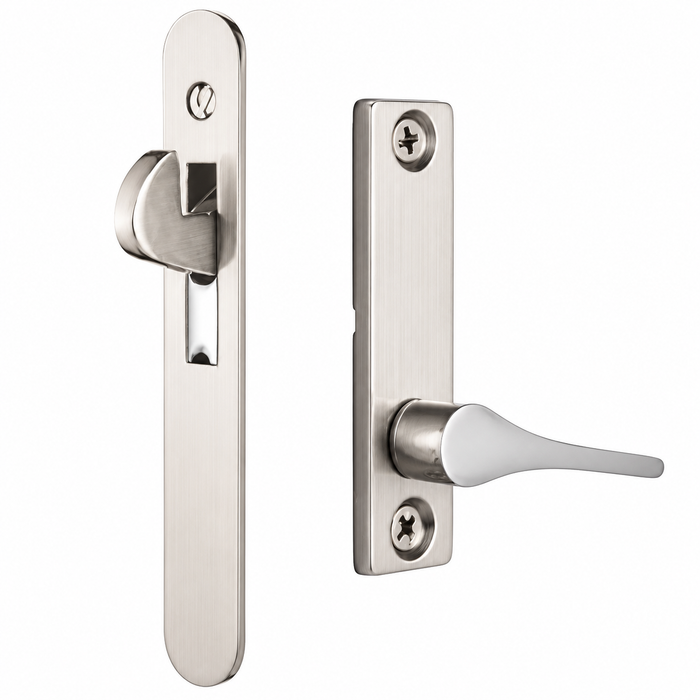

5500 Deadlock for sliding wood doors is a hardware set that includes the lockset, strike, and operators. The package features the 5017 Deadlock/Deadlatch with adjustable hookbolt and uses an over-sized thumbturn operator on the interior, coupled with an emergency override access location on the exterior escutcheon.
FUNCTION
For wood framed sliding doors, the 5500 Deadlock features the 5017 Deadlock/Latch which provides the same 1000 lbs strength that the MS1847 Deadlock/Latch provides for metal stiles. The bolt throw is easily adjusted by means of a screw in the faceplate. Mounting is by through-bolts, which also secure the inside 1004 Turn Lever and outside 1016 Blank Plate escutcheon. The package incorporates the 1004 Turn Lever an oversized thumbturn operator on the interior, coupled with the 1016 Blank plate escutcheon with an emergency override access location on the exterior.
OPERATION
45° rotation of 1004 Turn Lever projects or retracts bolt. Bolt is self-protecting: if door is shut while bolt is extended, it will retract, preventing damage or accidental lock-out.
FEATURES & BENEFITS
Cylinder Backset
- 1-3/16" [30.2 mm]
- 1-1/4" [31.8 mm] including faceplate
Case: Measures 1/2" x 4" x 1-19/32" deep [12.7 mm x 101.6 mm x 40.5 mm deep]. Stainless steel.
Bolt: Three-ply laminated stainless steel.
Door Thickness: 1" to 1-1/4" [25.4 mm to 31.8 mm] thick doors.
Faceplate: Measures 5/8" x 4-1/2" [15.9 mm x 114.3 mm] with radiused ends. Stainless steel.
Strike: 4810 Box Strike for wood.
Operators
- Inside: 1004 Turn lever is zinc alloy with stainless steel escutcheon for interior activation of lock. Spindle is hardened steel, plated for corrosion resistance.
- Outside: 1016 Blank plate escutcheon with emergency override access location on exterior of door.
OPTIONS
Available in choice of finish US26D (626) Satin chrome, or powder coat 119 Black to match 335 Black anodized.
DOCUMENTS
Manufacturer Resources
Product Specs
- Product Group:
- Sliding Door and Barn Door Hardware
- Series:
- 5500 Series
- Grade:
- Grade 1
- Warranty:
- 5 Year
- Product Subgroup:
- Deadlocks
- Subcategory:
- Deadlocks
- Commercial/Residential:
- Commercial
- Product Type:
- Deadlocks
- Product Model:
- 5500
- Door Thickness Range:
- 1" to 1-1/4"
- Product Dimension:
- 1/2" x 4" x 1-19/32"
- Face Plate:
- 5/8"
- Door Strike:
- 4810 Box Strike
- Product Category:
- Sliding Door and Barn Door Hardware
- Backset (Distance):
- 1-1/4"
