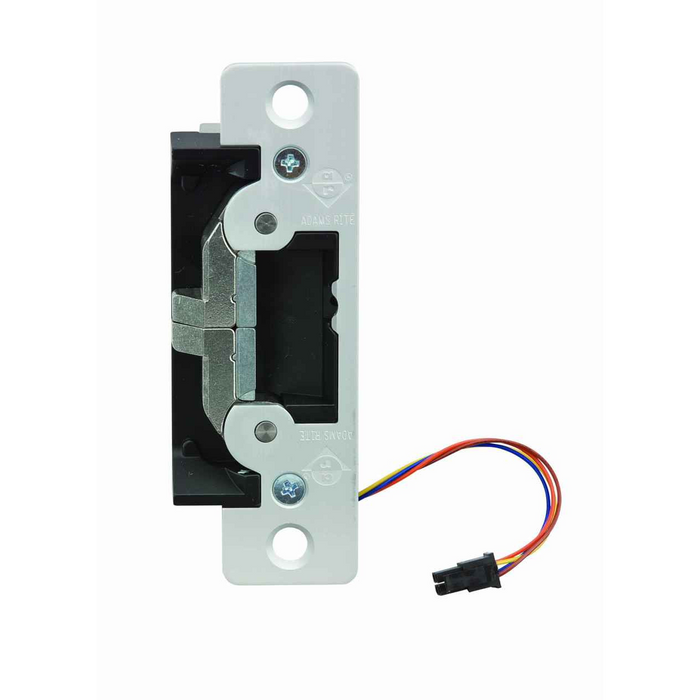

Adams Rite 7430 Series Ultraline Electric Strike for Aluminum Jambs with Field Selectable Fail-Safe/Fail-Secure Operation

Adams Rite 7430 Series Ultraline Electric Strike for Aluminum Jambs with Field Selectable Fail-Safe/Fail-Secure Operation

Professional Electric Strike Solution for Narrow Stile Aluminum Doors

The Adams Rite 7430 Series Ultraline Electric Strike delivers reliable electronic access control for aluminum, hollow metal, and wood door applications. Designed with an ultra-compact case measuring 1-13/32" x 3-3/8" x 1-1/16" deep and featuring a large 1-1/4" x 6-7/8" flat faceplate with radius corners, this strike provides over 1,500 lbs of holding force in fail-secure mode. The unit operates on field-selectable 12/16/24 VDC power with current draw ranging from .23A at 24 VDC to .44A at 12 VDC, and opens electrically under 25 lbs of preload to overcome door pressure from air conditioning systems or misaligned hardware.

Professional Features & Benefits

• Opens electrically under 25 lbs [11.3 kg] of preload — industry leading
• Field-selectable 12/24 VDC with quick connect plug-in connector
• Adjustable jaw inserts compensate for preload and security problems
• Latch projection: 1/2" to 5/8"
• Fail-safe / fail-secure field selectable
• Optional 2× Form C monitoring switches (latchbolt status + solenoid status)
• Lip extension kits for various door centerline-to-jamb dimensions
• Modular packaging
• 7430/7431: 6-7/8" faceplate covers MS® Deadlock strike prep conversion
• ELX-ElectroLynx® accessories available

Technical Specifications

• Latch Projection: 1/2" to 5/8" [12.7–15.9 mm]
• Preload: Opens under 25 lbs [11.3 kg]
• Voltage: Field-selectable 12/24 VDC
• Current Draw: 0.44A @ 12 VDC; 0.46A @ 16 VDC; 0.23A @ 24 VDC
• Fail Safe / Fail Secure: Field selectable
• Monitor Switch: Optional 2× Form C (latchbolt + solenoid status)
• Connector: Quick connect plug-in

Installation & Operation

1. Verify electrical requirements match available power supply. Confirm voltage (12/16/24 VDC field selectable) and current capacity (.23A to .44A depending on voltage) before proceeding.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the unit in the specified jamb location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application with quick connect plug-in type connector.
5. Configure operational settings including fail-secure/fail-safe operation per application requirements using field-selectable options.
6. Restore power and test all functions including normal operation, latchbolt engagement with 1/2" to 5/8" projection, and preload resistance up to 25 lbs.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Commercial Building Security Systems
• Narrow Stile Aluminum Door Access Control
• Educational Institution Safety Systems
• Healthcare Facility Access Control
• Retail Loss Prevention
• Industrial Facility Monitoring
• Government and Municipal Buildings

Why Choose Adams Rite Quality?

Adams Rite 7430 Series electric strikes deliver professional-grade reliability with stainless steel keepers and over 1,500 lbs holding force rated for demanding commercial applications. UL 1034, UL 294, and ANSI/BHMA A156.31 Grade 1 certifications ensure compliance with industry standards. Engineered for demanding commercial applications where dependable electronic access control and preload resistance are essential for consistent operation.
