74R2 ELECTRIC STRIKE

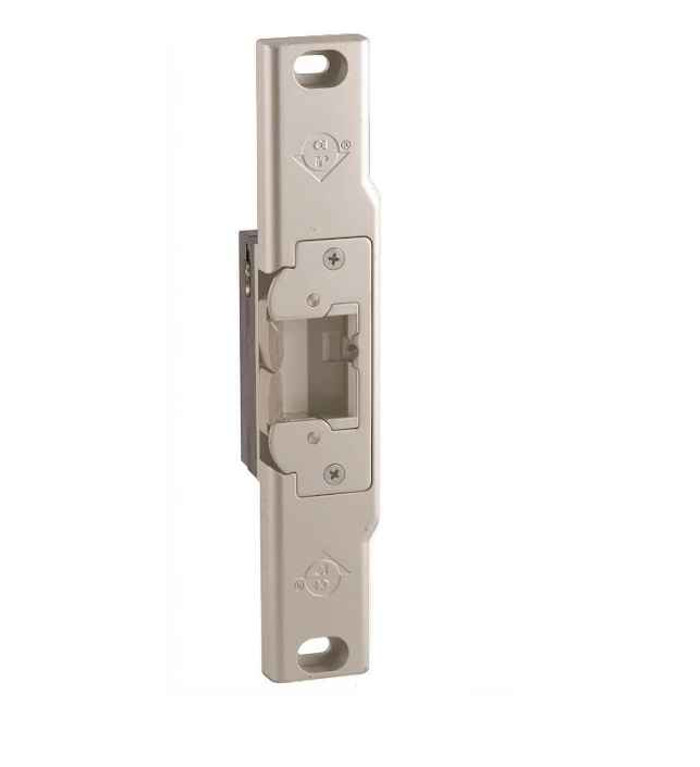

74R2 Electric Strike is designed for narrow stile rim exit devices with 1/2" [12.7 mm] Pullman latchbolts. Designed for use in aluminum applications.
Open electrically under 25 lbs [11.3 kg] of preload. Preload is pressure exerted on doors by air conditioning systems, warping or misaligned hardware which can disable common electric strikes.
FUNCTION
These non-handed strikes feature an ultra-compact design and adjustable stainless steel keepers with over 1,500 lbs [680.4 kg] of holding force in fail secure mode. The strikes release electrically with up to 25 lbs of door preload. Single solenoid operates on 12/16/24 VDC power. Provides electrical remote control, allowing door to open without actuation of the exit device.
CERTIFICATION
- UL 1034
- UL 294
- ULC-S319
- ANSI/BHMA A156.18
- ANSI/BHMA A156.31 Electric Strikes and Frame Mounted Actuators, Grade 1
FEATURES and BENEFITS
Case: 74R2 - 1-13/32" x 3-3/8" x 1-1/8" deep [35.7 mm x 85.7 mm x 28.6 mm deep].
Strike Opening: Bolt retaining keeper is stainless steel.
- 74R2:5/8" x 1-7/16" x 1/2" deep [15.9 mm x 36.5 mm x 12.7 mm deep]
Faceplate: Not separate.
- 74R1: 1-3/4" x 9 x 11/16" [44.5 mm x 228.6 mm x 17.5 mm]
Latchbolt Projection: 74R2:1/2" [12.7 mm]
Standard Package: Individually boxed with mounting plate shims, mounting screws, and installation instructions.
Shipping Weight: 2 lbs [0.91 kg].
ELECTRICAL
Voltage: Field selectable to match power source of 12/24 VDC. VA7400-16 VDC voltage adapter required when using 16 VDC power, available separately. Equipped with a quick connect plug-in type connector.
Current Draw
- .44A at 12 VDC
- .46A at 16 VDC
- .23A at 24 VDC
Fail Safe | Fail Secure: Field selectable fail safe/fail secure.
OPTION
- Available with two Form 'C' monitoring switches to indicate when the latchbolt is engaged in the strike jaws and a locked/unlocked solenoid status.
- ELX-ElectroLynx® Adapter: Connects Adams Rite electrified products to ElectroLynx system
- 16 VDC Adapter: VA7400-16VDC required when using 16 VDC power
