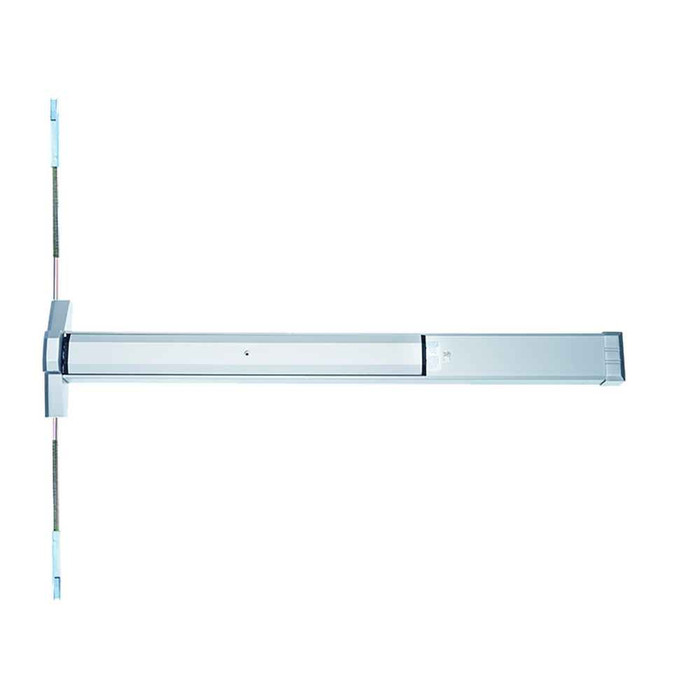

Adams Rite 8200 Series 30" Life-Safety Narrow Stile Surface Vertical Rod Exit Device

Adams Rite 8200 Series 30" Life-Safety Narrow Stile Surface Vertical Rod Exit Device

(No reviews yet) Write a Review

Model: 8211-30
$1,130.00
$672.20
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,130.00
$672.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Adams Rite 8200 Series 30" Life-Safety Narrow Stile Surface Vertical Rod Exit Device

Professional Life-Safety Exit Solution for Narrow Stile Aluminum Applications

The Adams Rite 8200 Series 30" Life-Safety Narrow Stile Surface Vertical Rod Exit Device delivers reliable two-point locking for narrow stile aluminum doors requiring life-safety compliance. Designed for 30" openings with minimum 2" stile width, this Grade 1 exit device accommodates door thicknesses from 1-3/4" to 2-1/4" and features extruded aluminum construction with adjustable bar height from 30" to 44". The patented top latching mechanism with rotating bolt provides secure interlocking with the door frame.

Professional Features & Benefits

  • ANSI/BHMA Grade 1 certified
  • Narrow stile aluminum door construction
  • Rim (8300/8400) and top-of-door mounted (8800/8700/EX88) configurations
  • Stainless steel touchbar / crossbar
  • UL 10C fire door listed
  • Panic-proof single-motion egress
  • Available with electric latch retraction
  • Compatible with 7800 electric strike
  • Multiple trim options and levers
  • Field-reversible handing

Technical Specifications

  • Door Application: Narrow stile aluminum doors
  • Configuration: Rim, mortise, top-of-door mounted
  • Egress: Single-motion panic proof
  • Compatible Strike: 7800 Series electric strike
  • Fire Rating: UL 10C listed
  • ANSI/BHMA: Grade 1
  • Handing: Field reversible

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness from 1-3/4" to 2-1/4", minimum 2" stile width, and door height up to 8' with standard configuration.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces for proper alignment.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions for machine screw fasteners.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications, ensuring proper rod adjustment and strike alignment.
  5. Adjust bar height between 30" and 44" for proper positioning and configure dogging mechanism with hex key or optional cylinder dogging as required.
  6. Test device operation to verify proper two-point locking function, top bolt rotation, and smooth operation throughout the full range of motion. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings with Aluminum Storefronts
  • Educational Facilities with Narrow Stile Doors
  • Healthcare Institutions Requiring Life-Safety Compliance
  • Retail Establishments with Aluminum Entry Systems
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Adams Rite Quality?

Adams Rite 8200 Series exit devices deliver professional-grade reliability with extruded aluminum construction and patented top latching mechanism engineered for demanding commercial applications. Grade 1 performance standards ensure dependable life-safety compliance with 5 Year warranty coverage. Designed specifically for narrow stile aluminum applications where secure two-point locking and reliable operation are essential.

Product Specs

Product Group:
Exit Devices and Trim
Series:
8200 Series
Grade:
Grade 1
Stile Width:
3-3/4"
Warranty:
5 Year
Product Subgroup:
Exit Devices - Vertical Rod
Subcategory:
Surface Vertical Rod
Fasteners:
Machine Screws
Commercial/Residential:
Commercial
Stile Type:
Narrow Stile
Product Model:
82 Life- Safety
Product Length:
30"
Fire Rating:
No
Product Substrate:
Aluminum
Product Category:
Exit Devices and Trim
Department:
Door Hardware
Product Type:
Exit Devices - Surface Vertical Rod

Adams Rite 8211-30 – Frequently Asked Questions

1) Does the 8200 Series exit device secure a pair of aluminum doors without a mullion?
It does. A surface vertical rod device latches at the head and at the threshold rather than into the jamb, so a pair of the 8200s handles a double opening with no center mullion in the way. That's the main reason to pick vertical rod over a rim device, which needs something at the center of the opening to strike into. The 8200 gives two point locking on each leaf, with a rotating top bolt that interlocks into the frame.
2) What do I need to specify when ordering an Adams Rite 8200 exit device?
Four decisions on the order. Finish: 313 dark bronze anodized, 335 black anodized, 605 bright brass, 606 satin brass, 628 clear anodized, 629 bright stainless, or 630 satin stainless. Electrified option: none, Alarm, LR electric latch retraction (solenoid), or MLR motorized latch retraction. Monitoring switch: none, single, or dual. Then the two add-ons, cylinder dogging yes or no, and less bottom rod yes or no. Size is 30 inches. If you're matching existing storefront, 628 clear anodized and 313 dark bronze are the two that usually line up with aluminum entrances.
3) Can the Adams Rite 8200 be tied into an access control system?
Yes, and there are two ways to do it. Electric latch retraction pulls the latches back on a signal from the access control, available as LR with a solenoid or MLR motorized. For monitoring, a single or dual switch reports device or latch status back to the panel. The 8200 also works with the Adams Rite 7800 electric strike if you'd rather control a rim configuration at the frame. Security integrators should pick MLR where the door sees heavy scheduled unlock time, since motorized retraction draws less current on a continuous hold than a solenoid.
4) The 8200 is a 30 inch device. Will it work on a 36 inch door?
The 30 inch 8200 is sized for a 30 inch opening, and the touchbar has to span most of the door leaf width to meet panic egress requirements, so a 30 inch device is not the part for a 36 inch leaf. For a 3 foot narrow stile door, the Corbin Russwin ED4400, the Falcon 19-V-EO, the Von Duprin 3327A or the Von Duprin 7527 are all 36 inch narrow stile vertical rod devices. Bar height on the 8200 adjusts from 30 to 44 inches, but that's the height off the floor, not the width.
5) The Adams Rite 8200 is narrow stile - what vertical rod device fits a wide stile aluminum or hollow metal door?
For a wide stile opening, the Von Duprin 2227 is a Grade 1 non-handed surface vertical rod device for 36 inch doors at 1-3/4 inch thickness, and the Falcon 20 Series is a Grade 1 wide stile surface vertical rod device at 36 inches, exit only. The Corbin Russwin ED5400 is the wide stile Grade 1 counterpart in the ED5000 Series and accepts trim. The Adams Rite 8200 Series is specified for narrow stile aluminum doors with a 2 inch minimum stile, so it does not carry over to a wide stile opening.
6) Which narrow stile vertical rod exit device should be used on a fire rated opening instead of the Adams Rite 8200?
The Arrow S1150 is a fire rated 30 inch surface vertical rod exit device listed for narrow or wide stile doors, supplied as device only, less trim, for 1-3/4 inch doors. The TownSteel EF9727 is a fire rated Grade 1 heavy duty surface vertical rod device at 36 by 84 inches, though it is a wide stile design. The Adams Rite 8200 Series carries a Fire Rating value of No, so on a labeled opening the Arrow S1150 is the narrow stile route at the same 30 inch length.
7) What is the alternative to the Adams Rite 8200 for a wood door opening?
The TownSteel ED3727 is a Grade 1 narrow stile surface vertical rod device at 36 by 84 inches listed as wood door compatible, and the ED8927 is the wide stile Grade 1 equivalent, also wood door compatible. By contrast the Von Duprin 7527 and 7827 are both listed as not wood door compatible. The Adams Rite 8200 Series is built for narrow stile aluminum doors, so for a wood leaf the TownSteel ED3727 is the narrow stile route.
8) What is the closest narrow stile surface vertical rod alternative to the Adams Rite 8200 Series?
The Von Duprin 3327A is a Grade 1 narrow stile surface vertical rod exit device with a grooved case, built for 36 inch doors and 1-3/4 inch door thickness. The Adams Rite 8200 Series is also narrow stile and Grade 1, in a 30 inch length, and takes a wider door thickness range of 1-3/4 to 2-1/4 inches. If the opening is a standard 1-3/4 inch aluminum door at 36 inches, the 3327A covers it; if the door is thicker than 1-3/4 inches, stay with the 8200.
9) What looks like a substitute for the Adams Rite 8200 exit device but will not actually latch the door?
The Sargent 12-8710 is a surface vertical rod device in a wide stile design with a Dummy function, meaning it is a matching pushbar without the latching mechanism, typically used on the inactive leaf of a pair. The Adams Rite 8200 Series provides two-point locking with a patented rotating top bolt and single-motion panic proof egress. If the opening needs to secure and provide egress, the 12-8710 is not the equivalent part despite reading as the same device type.
10) Do I have to order the Adams Rite 8200 handed?
No handing to specify. The 8200 is field reversible, so one device covers left and right hand openings and a property manager can stock a single part number across a building. Set the handing during install.
11) Should I order the Adams Rite 8200 with less bottom rod?
Less bottom rod is worth taking on openings where the floor is the problem: carpet transitions, uneven or sloped slabs, exterior thresholds that ice up, or anywhere a bottom rod and strike collect dirt and get kicked. Dropping it removes the bottom latch point and the floor strike, so you latch at the head only. Keep the bottom rod where you want the full two point lock the 8200 is built around. It's a yes or no selection when you order.
12) What is cylinder dogging on the 8200, and do I need it?
Dogging holds the touchbar depressed so the latches stay retracted and the door pushes free during business hours. The 8200 dogs with a hex key as standard; cylinder dogging is the option that swaps that for a keyed cylinder, so the same key ring that runs the building controls it instead of a loose Allen wrench. Retail and office tenants who unlock at open and lock at close generally want the cylinder. Note that dogging is not permitted on fire rated openings, which is moot here since the 8200 is not rated.
13) How high off the floor does the 8200 touchbar sit, and can I match it to the other doors in my building?
Bar height on the 8200 adjusts anywhere from 30 to 44 inches, so you can line a new device up with whatever the rest of the openings are already running. That range is why it works for standardizing across a mixed building, one part number set to match the existing height rather than a new sightline on every door you replace.
14) Is the Adams Rite 8200 Grade 1, and what does that mean for a high traffic entrance?
Grade 1 is the top ANSI/BHMA commercial tier, the cycle and strength level specified for high use entrances in schools, hospitals, and office towers. The 8200 is Grade 1 with extruded aluminum construction and a stainless steel touchbar, which is what holds up on an entrance getting hit all day. If a specification on the drawing calls for Grade 1 panic hardware on a narrow stile aluminum door, this meets it.
15) What is the closest alternative to the Adams Rite 8200 if I need trim and a lever on the outside?
The 8200 takes multiple trim options and levers, so outside access is available on the device itself. If you want to cross shop, the Corbin Russwin ED4400 is a Grade 1 narrow stile surface vertical rod device that accepts trim, and the ED7400 is the crossbar version that accepts operator trim. Both are 36 inch, 1-3/4 inch door thickness, so they suit a wider leaf and a single thickness door rather than the 8200's 1-3/4 to 2-1/4 inch range.
16) Does the 8200 exit device meet single motion egress for a life safety opening?
Single motion, panic proof egress is how the 8200 operates: one push on the touchbar retracts both latch points and the door opens, no second action, no knowledge of the hardware required. That's the behavior an occupied commercial building needs on an exit, and it's why the device carries the life safety designation in the 82 model line.
17) Is there a lower grade or standard duty vertical rod exit device instead of the Grade 1 Adams Rite 8200?
The Dexter ED2000 Series is a Grade 2 surface vertical rod panic device, and the TownSteel TS5100 Series is a Grade 2 heavy duty surface vertical rod device at 36 by 84 inches in a wide stile design. Design Hardware also splits its line by duty: the 2000V is the standard duty 33 inch surface vertical rod device and the 1000V is the heavy duty one. The Adams Rite 8200 Series is ANSI/BHMA Grade 1, so a Grade 2 device is a different certification level and will not satisfy a Grade 1 spec on a drawing.
18) What non-handed vertical rod exit device can replace the Adams Rite 8200 when handing is unknown at order time?
The Von Duprin 2227 is non-handed for 36 inch wide stile doors, the BEST Precision 5201 Series is a reversible 36 inch surface vertical rod device, the Sargent 2727 is reversible and fire rated, and the Orca Hardware OED56 is non-handed and supplied less bottom rod. The Adams Rite 8200 Series is field-reversible handing as well, so it can be ordered before the handing is confirmed and set at install.
19) Which vertical rod exit devices come standard less bottom rod, the way the Adams Rite 8200 can be ordered?
The Orca Hardware OED56 Series is a 36 inch standard duty vertical rod exit device supplied less bottom rod, non-handed, in an aluminum finish. The Adams Rite 8200 Series offers Less Bottom Rod as a build option rather than a fixed configuration, so the same opening can be specified either way. Less bottom rod removes the floor strike and the sweep clearance issue that comes with it.
20) Do any comparable surface vertical rod exit devices offer electric latch retraction and monitoring like the Adams Rite 8200?
The Adams Rite 8200 Series can be built with LR solenoid electric latch retraction or MLR motorized latch retraction, an alarm option, and single or dual monitoring switches, and it pairs with the 7800 Series electric strike. Among the mechanical peers, devices such as the Falcon 24-V-EO and Corbin Russwin ED4400 are catalogued as exit only mechanical configurations. For an access control opening that needs the latch pulled back on a card read, the 8200 carries that on the device itself.
21) Which surface vertical rod exit devices come in a 30 inch length rather than 36 inch?
The Arrow 3700 Series exit bar and the Arrow S1150 are both 30 inch surface vertical rod devices, and the Design Hardware 1000V and 2000V are 33 inch. Most of the field runs 36 inch, including the Corbin Russwin ED4400, Falcon 19-V-EO, Von Duprin 3327A and TownSteel ED3727. The Adams Rite 8200 Series covered here is the 30 inch device length, which matters when the leaf is narrower than a standard 3 foot opening.
22) What fasteners and door prep does the 8200 exit device need?
Machine screws fasten the 8200, so the door and frame get drilled and routed to the manufacturer templates rather than screwed into sheet metal. Prep the leaf for 1-3/4 to 2-1/4 inch thickness, minimum 2 inch stile, and door height up to 8 feet on the standard configuration. Mark hole locations from the templates before you cut, then set rod adjustment and strike alignment once the device is mounted.
23) Which vertical rod alternatives are pushpad versus crossbar, compared to the Adams Rite 8200 touchbar?
The Arrow 3700 Series is a Grade 1 30 inch surface vertical rod exit bar with a wide stile pushpad, the Sargent 3727 is a Grade 1 device with a standard push bar, and the Corbin Russwin ED7400 is a narrow stile crossbar device. The Adams Rite 8200 Series uses a stainless steel touchbar or crossbar with bar height adjustable from 30 to 44 inches. Matching the actuator style matters when a facility is standardizing the look across a run of doors.
