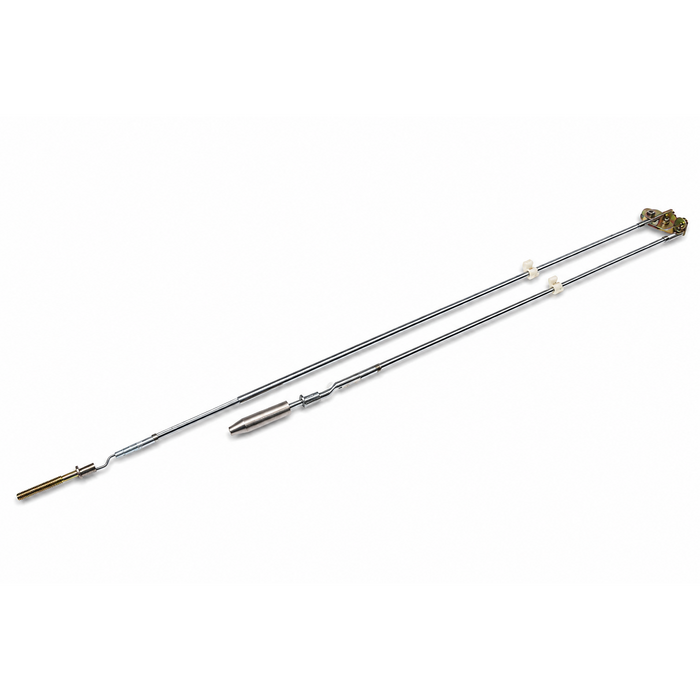

Adams Rite ADR41-0935 Concealed Vertical Rod Assembly for 8500/8600 Exit Devices

Adams Rite ADR41-0935 Concealed Vertical Rod Assembly for 8500/8600 Exit Devices

(No reviews yet) Write a Review

Model: 41-0935

In Stock (leaves warehouse same day if ordered before 3pm ET)

$137.31
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Adams Rite ADR41-0935 Concealed Vertical Rod Assembly for 8500/8600 Exit Devices

Professional Two-Point Locking Component for Commercial Exit Systems

The Adams Rite ADR41-0935 Concealed Vertical Rod (CVR) Assembly provides secure two-point locking for 8500 and 8600 Series Exit Devices and 4781 2-Point Deadlatch Paddle Systems. This final rod and bolt assembly integrates concealed vertical rods within the door structure for unobtrusive and reliable locking in glass aluminum storefronts and commercial doors. The assembly ensures coordinated actuation of top and bottom bolts when the pushbar or paddle is engaged, maintaining smooth operation and secure egress compliance.

Professional Features & Benefits

  • ANSI/BHMA Grade 1 certified
  • Narrow stile aluminum door construction
  • Rim (8300/8400) and top-of-door mounted (8800/8700/EX88) configurations
  • Stainless steel touchbar / crossbar
  • UL 10C fire door listed
  • Panic-proof single-motion egress
  • Available with electric latch retraction
  • Compatible with 7800 electric strike
  • Multiple trim options and levers
  • Field-reversible handing

Technical Specifications

  • Door Application: Narrow stile aluminum doors
  • Configuration: Rim, mortise, top-of-door mounted
  • Egress: Single-motion panic proof
  • Compatible Strike: 7800 Series electric strike
  • Fire Rating: UL 10C listed
  • ANSI/BHMA: Grade 1
  • Handing: Field reversible

Installation & Operation

This concealed vertical rod assembly is designed for use with compatible Adams Rite 8500/8600 Series Exit Devices and 4781 2-Point Deadlatch systems. Refer to the parent device installation instructions and manufacturer documentation for proper integration. Ensure compatibility with existing hardware before installation.

Professional Applications

  • Glass Aluminum Storefront Systems
  • Commercial Office Building Entrances
  • Retail Establishment Exit Points
  • Educational Facility Egress Doors
  • Healthcare Institution Security Doors
  • Multi-Tenant Commercial Properties
  • Government and Municipal Buildings

Why Choose Adams Rite Quality?

Adams Rite concealed vertical rod assemblies deliver professional-grade reliability as critical components of complete exit device systems. Engineered for durability and compatibility with Adams Rite systems, this assembly ensures coordinated two-point locking performance. Direct-fit replacement design provides seamless integration for demanding commercial applications where dependable egress control is essential.

Manufacturer Resources

Adams Rite Product Catalog

Product Specs

Subcategory:
Rod & Bolt Assemblies
Product Group:
Parts and Accessories
Product Category:
Exit Device Components
Department:
Door Hardware
Commercial/Residential:
Commercial
Product Subgroup:
Parts and Accessories
Product Type:
Concealed Vertical Rod (CVR) Assembly

Adams Rite 41-0935 – Frequently Asked Questions

1) What does the Adams Rite ADR41-0935 rod assembly actually do, and which exit devices does it go with?
The ADR41-0935 is the final rod and bolt assembly for a concealed vertical rod setup, not a complete exit device. It carries the top and bottom bolts inside the door leaf and ties them to the pushbar or paddle so both throw and retract together in one motion. It fits Adams Rite 8500 and 8600 Series exit devices and 4781 2-Point Deadlatch Paddle Systems. If you have a bare door and no device yet, you need the exit device or paddle system as well; this part alone will not latch anything.
2) Will Adams Rite concealed vertical rods work in a narrow stile aluminum storefront door?
That is exactly the door they are built for. The concealed vertical rod assembly is intended for narrow stile aluminum door construction, with the rods running inside the door so nothing is visible on the face. That suits glass aluminum storefronts, retail entrances, and commercial office entries. On a hollow metal or wood door you would be looking at a different device family.
3) Is the Adams Rite 8500/8600 concealed vertical rod system fire rated?
UL 10C fire door listed, and certified to ANSI/BHMA Grade 1. That is the combination an institutional or MRO buyer generally needs for a rated egress opening. Note that on a fire rated opening the device must be installed without dogging active, per the door assembly listing.
4) My storefront exit door is not latching at the top and bottom any more. Is the ADR41-0935 the part I need?
If the pushbar strokes normally but the bolts are not throwing or not moving together, the rod and bolt assembly is the usual culprit and this is the direct-fit replacement part for 8500 and 8600 Series devices and 4781 paddle systems. Confirm the existing device is one of those families before ordering, since the assembly is matched to them and not a universal rod kit. If the pushbar itself is dead, the problem is upstream in the device, not in the rods.
5) Should I use concealed vertical rods or a rim exit device on a pair of aluminum doors?
Concealed vertical rods latch at the head and the threshold, so a pair of doors is secured without a center mullion and the hardware stays hidden inside the leaf. A rim device (the Adams Rite 8300 and 8400 configurations) latches into a strike on the frame or a mullion, which is simpler to install and service but leaves a visible case and, on a pair, usually means adding a mullion. There is also a top-of-door mounted configuration in the 8800, 8700, and EX88 range. Pick concealed rods when appearance and a clear opening matter; pick rim when you want the easiest install and maintenance.
6) Do I have to order a left hand or right hand version of the Adams Rite concealed vertical rod hardware?
No handing to specify. The 8500/8600 exit device platform is field reversible, so the same part covers either swing and you set it during install. That is useful if you are stocking spares for a building with doors swinging both ways.
7) Can Adams Rite 8500/8600 exit devices be set up for access control with an electric strike or electric latch retraction?
Both paths are supported. The device family is available with electric latch retraction, which pulls the latches back so the door is free to push during unlocked hours, and it is compatible with the Adams Rite 7800 Series electric strike. Electric latch retraction is the option to specify on the device itself; the 7800 strike is a separate frame-mounted item you order alongside. Trim options and levers are also available for the outside pull.
8) Does the Adams Rite 8500/8600 device meet egress code for a single motion to exit?
Single-motion panic proof egress: one push on the bar or paddle retracts both the top and bottom bolts at once, with no second operation to unlock. That is the behavior code officials look for on a required egress door in schools, healthcare, and government buildings.
9) Which model do I select when ordering the Adams Rite ADR41-0935 rod assembly?
It is offered in a single configuration, the MS4804. There is no finish, length, or handing selection to make, so the ordering decision is just confirming the device it is going into is an 8500 or 8600 Series exit device or a 4781 2-Point Deadlatch Paddle System.
10) Is this Adams Rite rod assembly suitable for a residential door?
It is a commercial-duty part, built around narrow stile aluminum storefront and commercial entrance doors. A house or apartment entry with a wood or steel door is the wrong application; you would want residential-rated locking hardware instead.
