Model: 8611-36

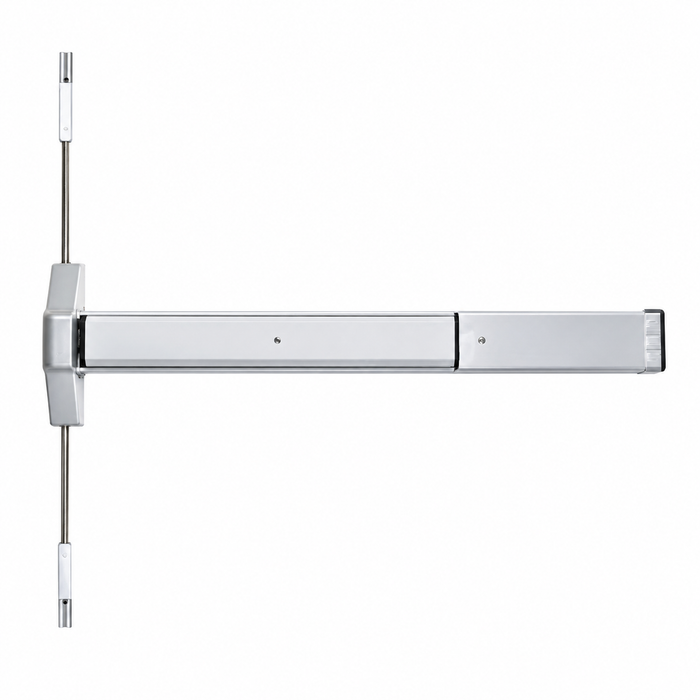

Adams Rite 8600 Narrow Stile Concealed Vertical Rod Exit Devices for Aluminum Doors

Write a Review
$776.00
$438.81
Selected Finish is
Adding to cart… The item has been added
FREE SHIPPING for orders over $149
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
Shipping:
Calculated at Checkout
Brand:
Adams Rite
Category:
Exit Devices
Subcategory:
Egress Bars and Handles
Product Group:
Push Bar
Series:
8600 Series
Model(s):
86
Grade:
Grade 1
Materials:
Aluminum
Screw Type(s):
Machine Screws
Stile Width:
3-3/4"
Length(s):
30"
Package:
Individually Boxed
Warranty:
5 Year Warranty

8600 SERIES NARROW STILE CONCEALED VERTICAL ROD

The 8600 Series Narrow Stile Concealed Vertical Rod Exit Device is designed for narrow stile aluminum applications that require a life-safety exit device with concealed vertical rods for two-point locking.
Designed for use in applications with single doors or pairs of doors.

FEATURES

Materials

Push bar made of extruded aluminum, available in a variety of finishes.

Handing

Device is non-handed.

Push bar Length

Standard sizes: dimensioned for 30" [762mm], 36" [914.4 mm], 42" [1066.8 mm], and 48" [1219.2 mm] openings. Standard width bars can be field cut to the next smallest opening width.

Bar Height

Standard model adjusts from 30" [762 mm] to 44" [1117.6 mm].

Fasteners

Standard machine screws.

Projection

2-15/16" [74.6 mm] when fully projected,1-15/16" [49.2 mm] when dogged.

Door Height

Standard configuration suitable for doors up to 66" [1,676.4 mm] above the selected bar height. For doors over 66" [1,676.4 mm] above bar height, up to 10' [3.05 m] use 8655 Tall Door Kit available separately.

Door Thickness

Suits 1-3/4" [44.5 mm] standard, up to 2-1/4"[57.2 mm]. Device requires modification when used with cylinder in doors over 1-3/4" [44.5mm]. Please contact factory for more details.

Stile Width

Minimum 2" [50.8 mm] stile. Fits narrow, medium, and wide stile aluminum doors.

Stile Wall

Doors with stile walls other than1/8" [3.2 mm] require modification.

Dogging

Standard dogging with hex key or optional cylinder dogging. Electric dogging option also available.

Cylinders

Accepts any standard 1" [25.4 mm] length,1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder. Accommodates cylinder lengths from 1" [25.4 mm] to1-1/4" [31.8 mm]. Available separately.

Cylinder x Fixed Pull Functions

For entry trim function 03 (Night latch - key releases latch) select any standard 1" [25.4mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder. Accepts any standard mortise cylinder with MS® cam. If key entry operation is required, any standard mortise cylinder with MS® cam can be installed through an 8650 Cylinder Escutcheon. 8650 Cylinder Escutcheon Kit available separately.

Entry Trim Functions

For entry trim function 08 (key locks/unlocks lever) or function 09 (key releases lever) select any standard 1" [25.4 mm] length, 1-5/32"[29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder. Accommodates cylinder lengths from 1" [25.4mm] to 1-1/4" [31.8 mm]. Available separately.

Bolts and Strikes

The patented top latching mechanism utilizes a rotating top bolt which deadlatches around the header strike, interlocking the door to the frame. Supplied with standard header strike. Adjustable protected steel rods. The hexagonal, hardened steel bottom bolt is shielded in a cast housing for strength and stability.

DOCUMENTS

8600 Catalog Page

8000 Series Overview Brochure

Installation Instructions & Templates
