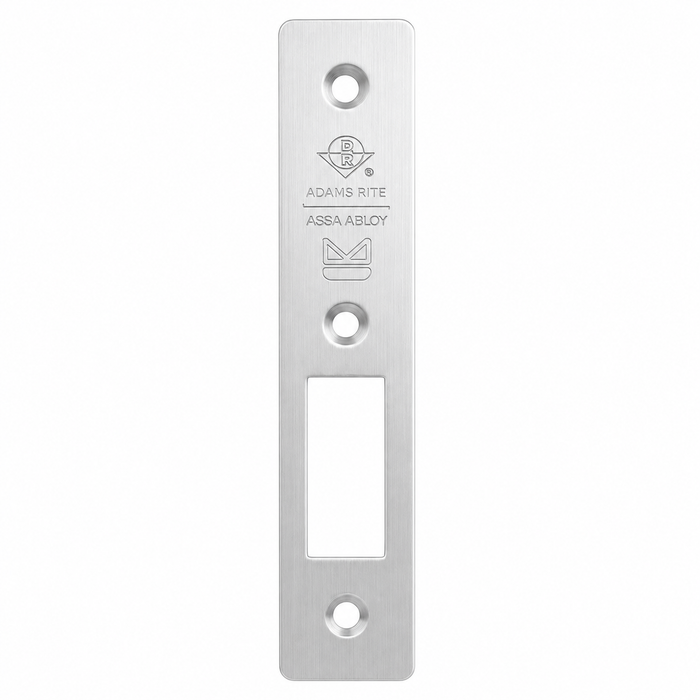

Adams Rite MS1850S MS1950 Deadlock Faceplate - Flat Standard Bolt Configuration

Adams Rite MS1850S MS1950 Deadlock Faceplate - Flat Standard Bolt Configuration

(No reviews yet) Write a Review

Model: 24-0384-010 628
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$14.41
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Adams Rite MS1850S MS1950 Deadlock Faceplate - Flat Standard Bolt Configuration

Professional Deadlock Faceplate Component

The Adams Rite MS1850S MS1950 Deadlock Faceplate provides essential mounting and finishing for Adams Rite MS1850S and MS1950P deadlock systems with standard bolt configuration. This flat faceplate design ensures proper installation alignment and professional appearance for commercial door hardware applications. Engineered specifically for compatibility with Adams Rite MS1850S and MS1950 series deadlocks to maintain system integrity and performance.

Professional Features & Benefits

  • Pivoting deadbolt — positive dead-locking action
  • For narrow stile aluminum doors
  • Accepts any standard Adams Rite MS® cam mortise cylinder
  • Backset: 1-1/8" or 1-1/2"
  • Stainless steel or solid brass deadbolt
  • Adaptable faceplate for flat, radius, or beveled door edge
  • Field-reversible

Technical Specifications

  • Door Application: Narrow stile aluminum doors
  • Backset: 1-1/8" [28.6 mm] or 1-1/2" [38.1 mm]
  • Cylinder: Standard 1" length, 1-5/32" diameter mortise with MS® cam
  • Handing: Field reversible
  • Faceplate: Flat, radius, or beveled adaptable
  • Finishes: US3 (605) Bright Brass, US4 (606) Satin Brass, US10B (613) Dark Bronze, US32 (629) Bright Stainless, US32D (630) Satin Stainless

Installation & Operation

This faceplate component is designed for use with compatible Adams Rite MS1850S and MS1950P deadlock systems. Refer to the parent device installation instructions and manufacturer documentation for proper integration. Ensure compatibility with existing hardware before installation.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Adams Rite Quality?

Adams Rite faceplate components deliver professional-grade reliability with precision manufacturing designed for demanding commercial applications. Engineered to maintain the security and performance characteristics of complete deadlock systems. Each component meets Adams Rite’s stringent quality standards for dependable long-term performance in commercial door hardware installations.

Manufacturer Resources

Adams Rite Product Catalog

Product Specs

Product Group:
Parts and Accessories
Product Subgroup:
Faceplates
Subcategory:
Faceplates
Product Category:
Parts and Accessories
Department:
Door Hardware
Commercial/Residential:
Commercial
Product Type:
Faceplates

Adams Rite 24-0384-010 628 – Frequently Asked Questions

1) What does the Adams Rite 24-0384-010 faceplate actually fit?
It's the flat faceplate for Adams Rite MS1850S and MS1950 series deadlocks in the standard bolt configuration. Not a lock, not a strike, just the plate that finishes the lock edge of the stile and holds the case alignment. If your deadlock is a different Adams Rite family, or the door edge is radius or beveled rather than flat, this flat plate is the wrong part.
2) Will this Adams Rite deadlock faceplate work on a beveled or radius aluminum door edge?
No. This is the flat version. The MS deadlock line adapts to flat, radius, or beveled door edges, but the edge profile is set by which faceplate you order, so a beveled stile needs the beveled plate and a radius stile the radius plate. Check the existing plate against the door edge before you order the flat one.
3) Do I need to know my backset before ordering an MS1850S faceplate?
The MS deadlocks run either a 1-1/8 inch (28.6 mm) or 1-1/2 inch (38.1 mm) backset, and that's a property of the lock case in the stile, not of the faceplate. What decides the plate is the bolt configuration and the door edge profile: this one is flat with the standard bolt. Measure from the door edge to the cylinder center to confirm which lock you have, then match the plate to the bolt and edge.
4) What finishes does the Adams Rite MS1850S flat faceplate come in?
Three anodized finishes: 628 clear anodized, 313 dark bronze anodized, and 335 black anodized. Those are the standard aluminum storefront finishes, so on a typical clear-anodized entrance the 628 plate disappears into the stile. If the rest of your MS trim is a plated finish like US32D satin stainless, the anodized plate won't match it exactly.
5) I have a whole storefront of Adams Rite deadlocks. Can I stock one faceplate for all of them?
Not reliably. Across a building you'll find flat, radius, and beveled stile edges, and the MS faceplate is specific to the edge profile, so one plate won't cover the fleet. What you can standardize is finish: order the same anodized color (628 clear, 313 dark bronze, or 335 black) across whichever profiles you carry, and walk the doors once to record the edge profile per opening.
6) Do I need a new cylinder when I replace an Adams Rite MS deadlock faceplate?
No, the faceplate has nothing to do with the cylinder. The MS deadlocks take any standard Adams Rite MS cam mortise cylinder, 1 inch length and 1-5/32 inch diameter. Keep the cylinder you have keyed to the building; just swap the plate.
7) Does replacing the faceplate on an MS1850S change the handing?
No. The MS1850S and MS1950 deadlocks are field reversible, and handing is set in the lock case, not the plate. A pivoting deadbolt deadlock has no handed latch to worry about, so swapping a damaged flat faceplate is a straight cosmetic and mounting repair.
8) Is this Adams Rite faceplate suitable for a commercial storefront entrance?
Yes. It's a commercial door hardware component built for narrow stile aluminum doors, the standard glass front storefront entrance. Offices, schools, healthcare, retail, and multi-tenant buildings all run the MS deadlock on aluminum entrances, and this is the flat-edge plate for that lock.
