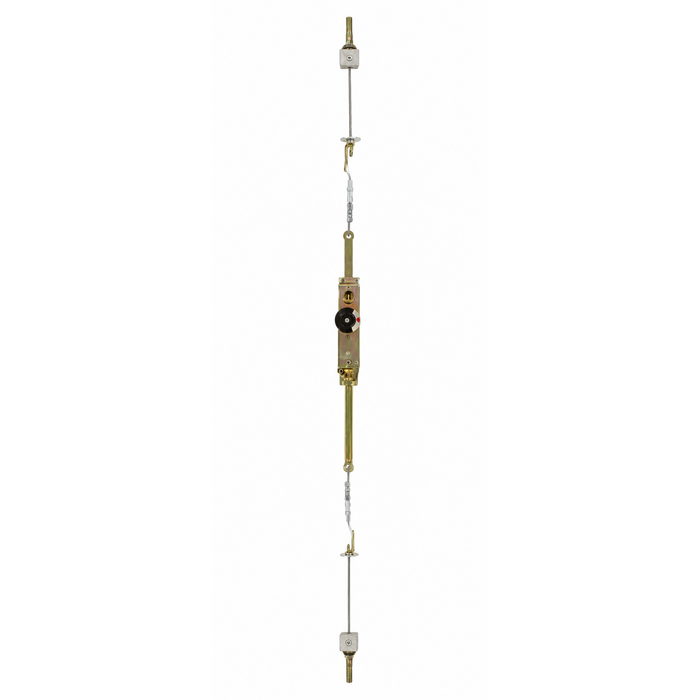

MS1880 TWO-POINT FLUSHBOLTS
The MS2180 Auto-Release Two-Point Flushbolts work in conjunction with any MS® pivoting deadlock to provide maximum security for paired narrow stile aluminum doors.
FUNCTION
Used instead of flip-lever flushbolts in the inactive leaf of paired doors. One turn pins the inactive leaf in position. The pivoting MS® deadlock in the active leaf secures the entire opening. The action of securing the MS® deadlock trips an internal mechanism in the MS2180 so that when the MS® deadlock is retracted, the entire opening releases with only one operation. This auto-release two-point flushbolt must be installed witha pivoted bolt MS® deadlock. Not to be used as a standalone locking mechanism.
OPERATION
Turn knob or lever 120° counterclockwise to throw stainless steel bolts into header and threshold and clear strike opening so pivoted MS® bolt can enter from active door. Clockwise turn retracts vertical bolts and blocks entry of pivoted bolt. Operates in conjunction with any MS® pivoting deadlock.
FEATURES & BENEFITS
Header | Threshold Bolt: Hexagonal 3/8" [9.5 mm] flat to flat. Stainless steel. Guides furnished. Bolt throw is 23/32" [18.3 mm]. Strike required in metal headers and thresholds is 1/2" [12.7 mm] diameter hole. For wood installation, two 4005 Strikes are required, available separately.
Smartlock: Mechanism includes device to prevent entry of pivoted bolt until vertical bolts are locked and conversely, to prevent unlocking of vertical bolts when pivoted bolt is locked.
Monitoring: Monitoring Kit available as add-on switch kit that signals when the top and bottom bolts are fully projected and the MS® deadlock is in the extended and locked position. More than an easily defeated door position switch, the MK-2180 Monitoring Kit uses a form “C”switch to provide a tamper-proof indication of the door position and locked condition.
Turn Lever | Indicator
- MS2180 has an hourglass-shaped turn fora firm finger grip. Red lettered indicator shows “LOCKED” when secure
- MMS2181 has a teardrop-shaped turn with red letters on clear decal indicating unlock direction only.
- MS2182 is a limited-access flush turn to comply with IBC requirements for “no door knob” actuation.
- MS2182 is supplied with an activation tool. Red lettered indicator shows “LOCKED” when secure.
Turn Height: Matches cylinder height of MS® deadlock in active door, adjustable from 34" [863.6 mm] to 48" [1,219.2 mm].
Standard Package: Individually boxed with bolt guides and screws.
Shipping Weight: 2 lbs [0.91 kg]
OPTIONS
- For wood header or threshold, 4005 Strike available separately.
- Available in choice of powder coat 119 to match 335 Black anodized, 121 to match 313 Dark bronze anodized, and US26D (682) Satin chrome.
DOCUMENTS
Manufacturer Resources
Product Specs
- Category:
- Door Trim and Accessories
- Product Group:
- Door Trim and Accessories
- Series:
- MS2180 Series
- Warranty:
- 5 Year
- Model:
- MS2180
- Product Subgroup:
- Flush Bolts
- Product Type:
- Flush Bolts
- Subcategory:
- Flushlocks
- Strike:
- 1/2"
- Commercial/Residential:
- Commercial
- Dimensions:
- 1 1/2" x 6 7/8" x 1 1/4"
