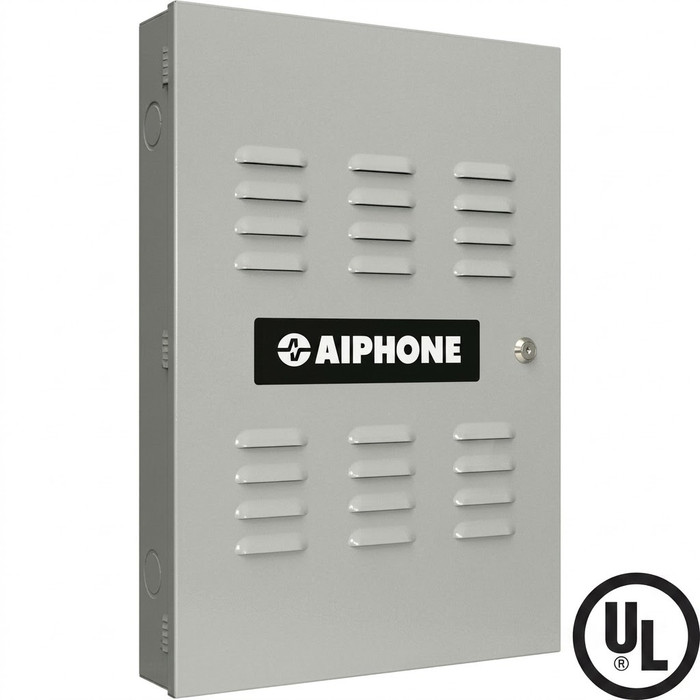

AC Series Vented/Lockable Wall Mount Steel Enclosure
The AC-C is a steel enclosure designed to hold a master controller board, an AC-PS1250 power supply, and up to four expansion boards. It is lockable, vented, and includes nine conduit knockouts on the sides and the back of the enclosure.
The AC-C enclosure is included in the ACS‑2DR-C, ACS-IO, and ACS-ELV kits.
SPECIFICATIONS
- Material: Steel
- UL Listing: UL 294/ULC S319-05
- Dimensions:
- Enclosure: 19-3/8" H x 13-5/8" W x 3" D
- Knockouts: 1-1/10" and 2" diameter
Manufacturer Resources
General Line Catalog (Full Catalog)
Product Specs
- Product Type:
- Mounting Enclosure
- Product Group:
- Electronic Access Controls
- Product Subgroup:
- Readers, Keypads and Credentials
- Subcategory:
- Accessories
- Commercial/Residential:
- Commercial
- Electronic:
- Yes
- Series:
- AC Series
- Product Category:
- Electronic Access Controls
- Department:
- Door Hardware
Aiphone AC-C – Frequently Asked Questions
1) What fits inside the Aiphone AC-C enclosure?
The AC-C steel enclosure is sized to hold an AC Series master controller board, an AC-PS1250 power supply, and up to four expansion boards. That means one cabinet can carry a full head-end for a multi-door access control install rather than splitting the power supply into a separate can.
2) Does the AC-C enclosure have conduit knockouts, and what size?
Nine knockouts are provided on the sides and the back of the cabinet, in 1-1/10 inch and 2 inch diameters. Back knockouts let you bring reader and lock wiring in from behind the wall; the side knockouts handle surface conduit runs. Pick the 2 inch openings for bundled multi-door runs.
3) Is the Aiphone AC-C UL listed for access control use?
The AC-C carries UL 294 and ULC S319-05 listings, the access control system unit standards. That matters if your spec or AHJ requires listed enclosures for the access control head-end, and the ULC line covers Canadian installs.
4) Do I need to buy the AC-C separately if I already ordered an Aiphone access control kit?
No, if the kit is an ACS-2DR-C, ACS-IO, or ACS-ELV. The AC-C enclosure ships as part of each of those kits. Order the AC-C on its own only when you are expanding an existing system, replacing a damaged cabinet, or building a head-end from individual boards.
5) Can the AC-C be locked so tenants or staff cannot get at the controller?
Yes. The cabinet is lockable, which is what you want for a head-end mounted in a shared back-of-house area of a multi-family or commercial building. It is also vented, so the power supply and boards can shed heat with the door closed.
6) Is the AC-C enclosure steel or plastic, and is it rated for outdoor mounting?
Construction is steel. It is a vented wall mount cabinet, so the venting means it belongs in a protected interior location such as an electrical room, riser closet, or IT space. Vented cabinets are not weather resistant, so use a weatherproof enclosure for any exterior wall.
7) Is the AC-C meant for commercial jobs or residential?
It is a commercial-duty item, catalogued for commercial access control installations, and the electronics it houses are AC Series access control boards. Typical use is a multi-tenant, institutional, or office building where several card readers or keypads report back to one controller.
How fast can I get the Aiphone AC-C delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the
continental
U.S.
Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit,
reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Aiphone AC-C come with a warranty?
Absolutely. The Aiphone AC-C is backed by a manufacturer’s warranty.
For full warranty terms, check the product documentation or Contact Us.
