Aiphone Aiphone AC-HOST - AC Series Embedded Server AC-HOST

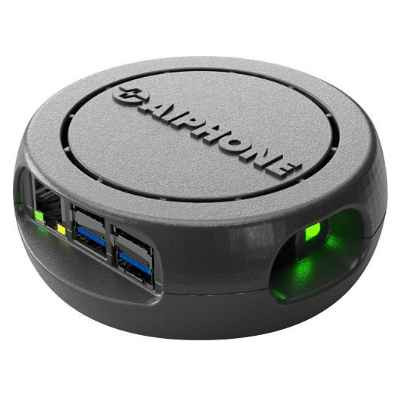

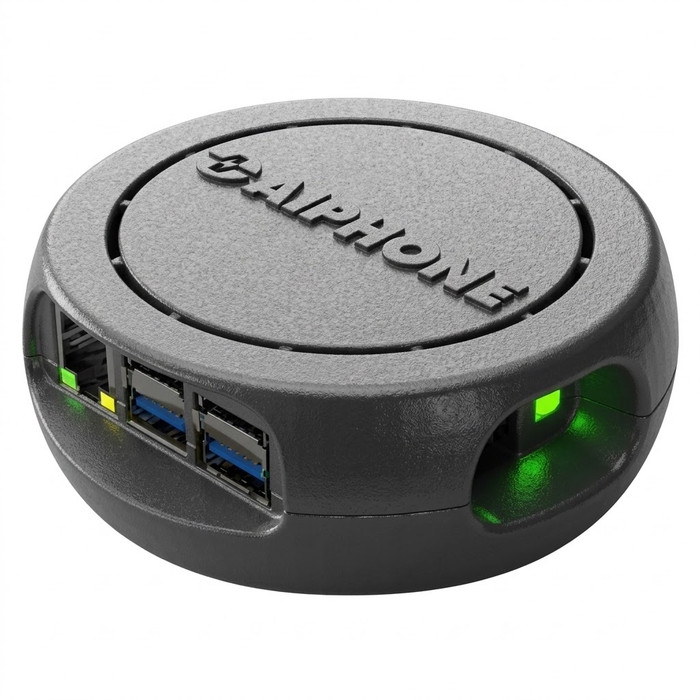

Aiphone AC-HOST - AC Series Embedded Server

(No reviews yet) Write a Review

Model: AC-HOST

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,027.30
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

AC Series Embedded Server

The AC-HOST is a Linux-based embedded server that is used as a host for the Essential License of the AC Nio management software.

Learn more about AC Nio License

FEATURES

  • Remote web-based management
  • Compact form factor
  • Supports applications of up to 40 doors

SPECIFICATIONS

  • CPU: Broadcom BCM2711BO quad-core A72 @ 1.5 gHz
  • RAM: 2 GB LPDDR4 SDRAM
  • Storage: 16 GB microSD, A1 rated
  • Ports: 2 USB 3.0, 2 USB 2.0
  • Network: Gigabit Ethernet
  • Protocols: IPv4, IPv6, TCP, UDP, HTTPS
  • Dimensions: 4-1/2" H x 4-1/2" W x 1-1/2" D

Product Specs

Product Type:
Embedded Server
Product Group:
Electronic Access Controls
Product Subgroup:
Readers, Keypads and Credentials
Subcategory:
Accessories
Commercial/Residential:
Commercial
Electronic:
Yes
Series:
AC Series
Product Category:
Electronic Access Controls
Department:
Door Hardware

Aiphone AC-HOST – Frequently Asked Questions

1) How many doors can the Aiphone AC-HOST embedded server handle?
The AC-HOST supports access control applications of up to 40 doors. If your site is larger than that, the AC-HOST is the wrong host, because it is built specifically around the Essential License tier of AC Nio.
2) Do I still need to buy an AC Nio license with the AC-HOST?
Yes. The AC-HOST is the hardware host only, a Linux-based embedded server that runs the Essential License of Aiphone's AC Nio management software. The license itself is a separate line item, so order both to get a working system.
3) Is the AC-HOST a card reader or keypad?
No. The AC-HOST is not a door-mounted device at all and reads no credentials. It is the server that runs the AC Nio management software behind the system; readers, keypads and door controllers are separate hardware. Buyers replacing a reader at the door need a different part.
4) Can I manage the AC-HOST remotely, or do I have to be on site at the server?
Management is remote and web-based, so an integrator or property manager can administer doors, users and credentials from a browser rather than standing at the unit. It talks HTTPS over IPv4 or IPv6, with TCP and UDP support.
5) What size is the AC-HOST and will it fit inside my access control enclosure?
It measures 4-1/2 inches by 4-1/2 inches by 1-1/2 inches (H x W x D), so it drops into most equipment cabinets or sits on a shelf in the IDF next to the door controllers. Leave clearance for the Ethernet drop and the USB ports on the sides.
6) What network connection does the AC-HOST need?
A single Gigabit Ethernet drop. There is no wireless claim here, so plan a hard-wired run to the unit. Addressing works on IPv4 or IPv6 and the web interface uses HTTPS, so the IT group will want a static address and a firewall rule for it.
7) What are the processor, memory and storage specs on the Aiphone AC-HOST?
A Broadcom BCM2711BO quad-core A72 running at 1.5 GHz, 2 GB of LPDDR4 SDRAM, and 16 GB of A1-rated microSD storage. That storage is the thing to note on a commissioning plan: event history lives on a microSD card, so an institutional buyer keeping long audit trails should budget for regular exports or backups.
8) Is the AC-HOST meant for commercial buildings or homes?
It is classified for commercial use, which matches how it is applied: a head-end server for a multi-door access control system of up to 40 doors in an office, school, healthcare or multi-family building.
9) How many USB ports does the AC-HOST have for peripherals like an enrollment reader?
Four in total: two USB 3.0 and two USB 2.0. That covers an enrollment reader plus a keyboard or backup drive during commissioning without needing a hub.
