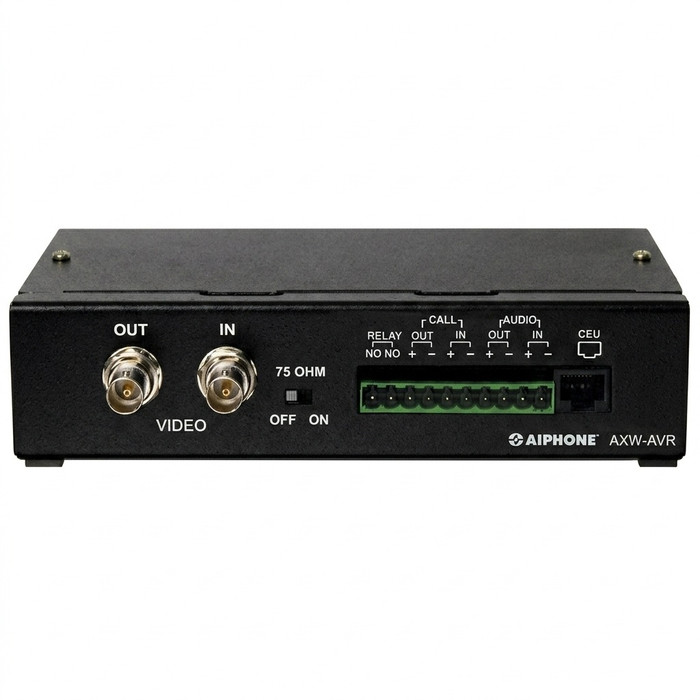

Aiphone Aiphone AXW-AVR - Audio Video Adaptor for 3rd Party Transmission Equipment (Receiver) AXW-AVR

Aiphone AXW-AVR Audio Video Adaptor Receiver for AX Series Fiber Transmission

(No reviews yet) Write a Review

Model: AXW-AVR

In Stock (leaves warehouse same day if ordered before 3pm ET)

$700.00
$487.28
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Aiphone AXW-AVR Audio Video Adaptor Receiver for AX Series Fiber Transmission

The Aiphone AXW-AVR is a receiver module designed to interface AX Series video door stations with third-party alternate transmission equipment, enabling reliable audio-video transmission over extended distances. Built for Cat-5e wiring with a cumulative distance rating of 980', this receiver supports composite 1Vpp NTSC video via BNC connectors, making it an essential accessory for commercial installations that require signal extension beyond standard AX Series limitations. As part of the AX Series lineup, this adaptor is engineered for dependable performance in electronic access control applications.

Key Features

  • Extended Distance Transmission: Supports up to 980' cumulative distance using Cat-5e wire type, allowing AX video door stations to be installed far from the monitoring location.
  • Fiber Connection Ready: Functions as a receiver module for fiber connection, interfacing AX video door stations with third-party alternate transmission methods.
  • Video Input & Output: Composite 1Vpp, NTSC video signal with BNC video connectors for reliable, standardized video transmission.
  • Monitoring Output: N/O contact output rated 30V DC, 1A for integration with monitoring or alarm systems.
  • Sensor Input: N/C contact input allows connection of supervisory sensors for expanded system functionality.
  • Wiring Compatibility: Utilizes Cat-5e wire type, simplifying installation in commercial structured cabling environments.
  • AX Series Integration: Purpose-built to interface with AX Series video door stations for extended-distance transmission applications.

Technical Specifications

  • Product Type: Adaptors
  • Series: AX Series
  • Product Group: Electronic Access Controls
  • Product Subgroup: Parts and Accessories
  • Subcategory: Accessories
  • Commercial/Residential: Commercial
  • Electronic: Yes
  • Product Category: Electronic Access Controls
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Aiphone AXW-AVR?

Aiphone AX Series accessories like the AXW-AVR deliver dependable signal transmission engineered for demanding commercial access control applications. With standardized composite video support, structured Cat-5e wiring compatibility, and integrated monitoring and sensor contacts, this receiver module extends the practical reach of AX video door stations without compromising signal integrity. Aiphone's commitment to interoperability with third-party transmission equipment makes the AXW-AVR a reliable choice for facilities requiring long-distance video door station deployment.

Product Specs

Product Type:
Adaptors
Series:
AX Series
Product Group:
Electronic Access Controls
Product Subgroup:
Parts and Accessories
Subcategory:
Accessories
Commercial/Residential:
Commercial
Electronic:
Yes
Product Category:
Electronic Access Controls
Department:
Door Hardware

Aiphone AXW-AVR – Frequently Asked Questions

1) What does the Aiphone AXW-AVR actually do in an AX Series intercom system?
The AXW-AVR is the receiver half of an audio/video adaptor pair that lets an AX Series video door station run through third-party alternate transmission equipment, such as a fiber link. It takes the extended-distance signal at the head end and hands off composite video and audio so the door station can sit much farther from the monitoring point than a direct AX run allows. It is a receiver module only, not a door station and not a master station.
2) How far can I run an AX video door station using the AXW-AVR?
Up to 980 feet cumulative distance on Cat-5e wire. That is the rating on the AXW-AVR path, so add up every leg of the run, not just the longest one, when you lay the job out.
3) Is the AXW-AVR a complete kit, or do I need something else to extend the run?
It is the receiver side only. A working extended-distance link also needs the matching transmitter adaptor at the door station end and the third-party transmission equipment (fiber gear or similar) in between. Order accordingly so you are not left with half a path on install day.
4) What cable do I need to pull for an Aiphone AXW-AVR install?
Cat-5e. The adaptor is built around structured cabling, which is usually already in the building on a commercial job, so the low-voltage contractor can pull it with the rest of the data. Video in and out is on BNC connectors, so you will also need coax jumpers at the equipment end.
5) What video format and connector does the AXW-AVR use?
Composite 1Vpp NTSC over BNC. That is the standard analog CCTV format, so the output drops straight into most third-party transmitters, fiber modems, or video distribution gear without a converter.
6) Can I tie the AXW-AVR into an alarm or monitoring system?
There's a normally open contact output rated 30V DC, 1A for handing a signal to a monitoring or alarm panel, plus a normally closed contact input for a supervisory sensor. Stay inside the 30V DC / 1A rating, and use a relay if the device you are switching draws more than that.
7) Will the AXW-AVR work with Aiphone systems other than the AX Series?
It is built specifically to interface AX Series video door stations. Treat it as an AX Series accessory; for a different Aiphone platform, match the adaptor to that platform rather than assuming this one carries over.
8) Is the Aiphone AXW-AVR meant for commercial buildings or homes?
Commercial. It is specified for office buildings, schools, healthcare, retail, industrial and warehouse sites, multi-tenant residential, and government facilities, which are the jobs where the door station ends up hundreds of feet from the desk watching it.
9) Does the AXW-AVR pass audio as well as video?
Yes, it is an audio/video adaptor, so the talk path travels with the picture over the same extended link. Video rides as composite 1Vpp NTSC on BNC.
