Aiphone JOW-2D - Adaptor for J...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$186.00
$154.04
Aiphone Aiphone JOW-2D - Adaptor for JO Series Video Intercom System JOW-2D

Aiphone JOW-2D - Adaptor for JO Series Video Intercom System

(No reviews yet) Write a Review

Model: JOW-2D

In Stock (leaves warehouse same day if ordered before 3pm ET)

$186.00
$154.04
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

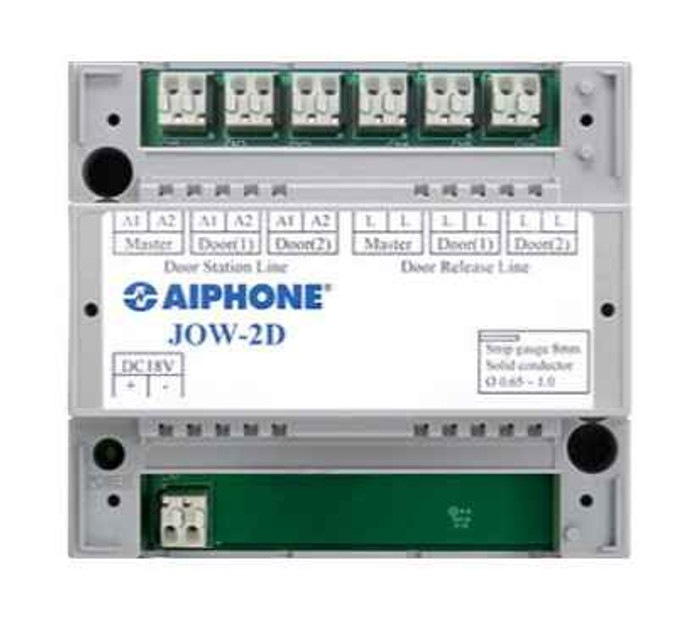

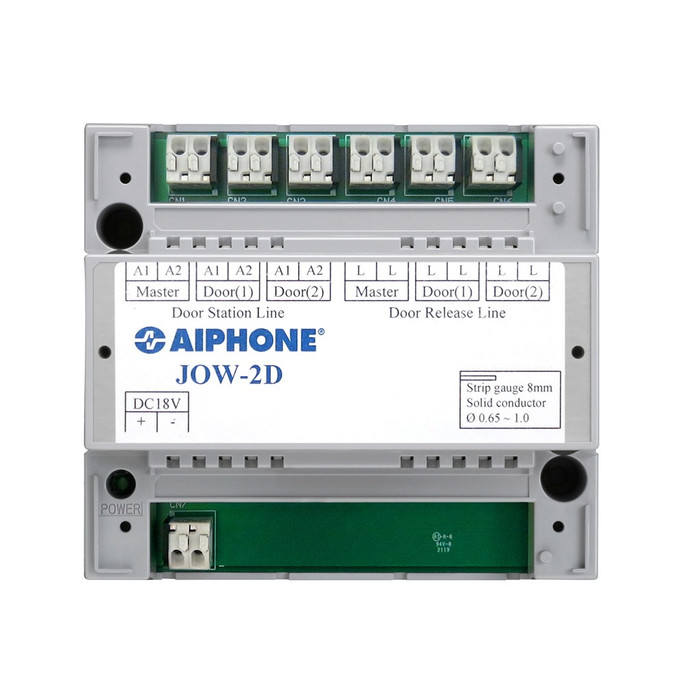

The JOW-2D is an adaptor for the JO Series video intercom system. It allows two video door stations to be used in a standard or app-enabled system. The adaptor has inputs for two JO Series video door stations and outputs to control door release for each of those door stations. When a visitor calls at the door station, his image will be displayed on the inside station(s). The person at the JO-1MDW, JO-1MD, or JO-1FD, answers the call, and if they decide to grant the visitor entry, pushes the door release button to activate the electric lock only at the associated door. If one door station is in use, the call button on the other door station will not activate a call-in.

Use the JOW-2D with JO Series systems that include the JO-1MDW app-compatible master station or the JO-1MD standard master station.

FEATURES

  • Allows a second door station to be connected to any JO Series system
  • Can be added to existing systems for expansion
  • Includes normally open contacts to activate a strike for unlocking the door

SPECIFICATIONS

  • Power: 18V DC (supplied by JO Series master station)
  • Consumption: 100mA (max), 18mA (standby)
  • Relay Outputs: 24V DC, 1A (JO-1MDW)
  • 24V DC, 500mA (JO-1MD, JO-1FD)
  • Operating Temperature: 32° ~ 104° F (0° ~ 40°C)
  • Dimensions: 4-¼" H x 4-13⁄16" W x 2-⅜" D

Product Specs

Product Type:
Adaptors
Series:
JO Series
Product Group:
Electronic Access Controls
Product Subgroup:
Parts and Accessories
Subcategory:
Accessories
Commercial/Residential:
Commercial
Electronic:
Yes
Product Category:
Electronic Access Controls
Department:
Door Hardware

Aiphone JOW-2D – Frequently Asked Questions

1) What does the Aiphone JOW-2D adaptor actually do in a JO Series intercom system?
The JOW-2D lets a JO Series video intercom run two video door stations instead of one. It takes inputs from two JO Series video door stations and provides a separate door release output for each. When someone calls in, their image shows on the inside station, and the door release button only unlocks the strike at the door that called. While one door station is in a call, the button on the other station will not ring in.
2) Which JO Series master stations does the JOW-2D work with?
Use the JOW-2D with JO Series systems built around the JO-1MDW app-compatible master station or the JO-1MD standard master station. The JO-1FD sub master can also answer the call and release the door. It works in both standard and app-enabled JO Series systems.
3) Can I add a second door station to a JO Series intercom that is already installed?
Yes. The JOW-2D is designed to be added to existing JO Series systems for expansion, so an installed single-door system can be brought up to two door stations without replacing the master station.
4) Will the JOW-2D drive my electric strike, and what are the relay ratings?
The adaptor carries normally open dry contacts to trigger a strike. Rated 24V DC at 1A when used with the JO-1MDW, and 24V DC at 500mA with the JO-1MD or JO-1FD. Size the strike and its own power source to those limits; higher-draw locks need an interposing relay.
5) Does the JOW-2D need its own power supply or transformer?
No separate supply is needed. The adaptor runs on 18V DC fed from the JO Series master station. Draw is 100mA maximum and 18mA in standby, so it loads the existing system rather than requiring a new transformer at the panel.
6) Can two visitors call in at the same time on a two-door JOW-2D setup?
No. Calls are handled one at a time. If one door station is already in use, the call button at the other door station will not ring through until the first call ends. For a building where simultaneous entries at two entrances matter, that behavior is worth knowing before you commit to this arrangement.
7) Does the JOW-2D unlock both doors at once when I press release?
No. Each door station has its own output. Pressing release at the inside station only energizes the strike at the door where the call originated, so a visitor at the back entrance never gets the front door opened.
8) Is the JOW-2D suitable for a commercial building or just a house?
Aiphone classes the JOW-2D as commercial-grade door hardware, and it is an electronic device. It is commonly used where a property has a front entrance and a secondary or service entrance that both need video call-in and independent door release from the same interior master station.
