Included: 4 Frame-mounting screws and 4 Wall-mounting screws; Tenant station (IXG-2C7 & IXG-2C7-L) sold separately
FEATURES
- Flush wall-mounted
- Panel is made of self-extinguishing resin
- Frame & Back Box is made of Self-extinguishing plastic
GENERAL INFORMATION

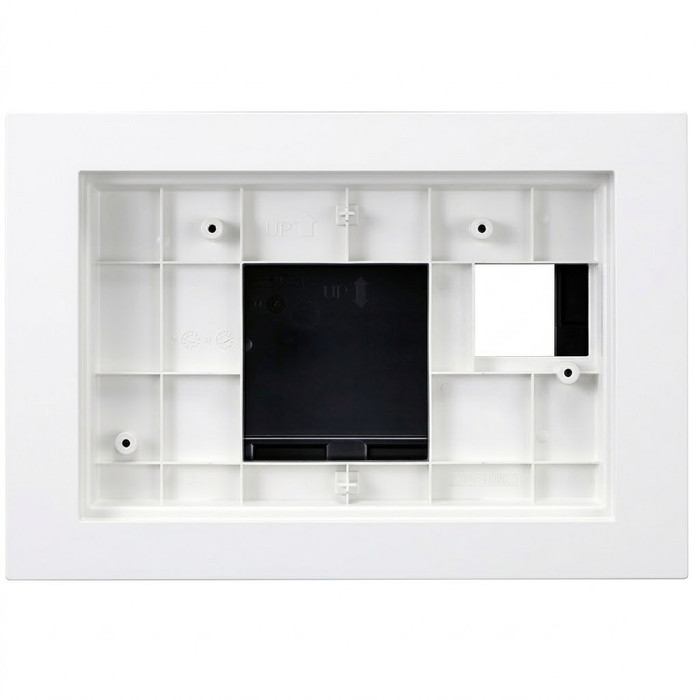

- Name: Aiphone IXG-FMK-2C7 Flush Mount Kit for Tenant Station, Aiphone Co., Ltd, Aiphone
- Country of Origin: Thailand. Country of origin is subject to change.
Manufacturer Resources
IXG SYSTEM Brochure
Product Specs
- Product Type:
- Flush Mount Kit
- Series:
- IXG Series
- Product Group:
- Electronic Access Controls
- Product Subgroup:
- Parts and Accessories
- Subcategory:
- Accessories
- Commercial/Residential:
- Commercial
- Electronic:
- Yes
- Product Category:
- Electronic Access Controls
- Department:
- Door Hardware
Aiphone IXG-FMK-2C7 – Frequently Asked Questions
1) Does the Aiphone IXG-FMK-2C7 flush mount kit include the tenant station?
No. The IXG-FMK-2C7 is the mounting hardware only: the panel, frame and back box, plus 4 frame-mounting screws and 4 wall-mounting screws. The tenant station itself, either the IXG-2C7 or the IXG-2C7-L, is a separate order. Budget for both lines when you spec an opening.
2) Which Aiphone tenant stations does the IXG-FMK-2C7 mount?
It is built for the IXG-2C7 and IXG-2C7-L tenant stations in the Aiphone IXG Series. It is a model-specific kit, so it is not a general-purpose intercom back box, and other station sizes in the line need their own kit.
3) Can I recess an Aiphone IXG tenant station into the wall instead of surface mounting it?
That's exactly what the IXG-FMK-2C7 kit does. It's a flush wall-mounted kit, so the station sits recessed in the wall with the back box buried in the cavity and only the panel and frame proud of the finished surface. If you want the station on the wall face instead, you need a surface mount enclosure rather than this kit.
4) Is the Aiphone IXG-FMK-2C7 mount kit suitable for a commercial multi-family building?
Yes, it's classified as commercial hardware and it's the flush mount kit for the IXG Series tenant stations, which is the resident-side station in Aiphone's IXG multi-tenant intercom system. Property managers standardizing entry stations across a building can spec the same kit at every unit that gets an IXG-2C7 or IXG-2C7-L.
5) Do I need to buy separate mounting screws for the Aiphone IXG-FMK-2C7?
No, the fasteners come in the box: 4 screws to attach the station to the frame and 4 to secure the assembly to the wall. What isn't in the box is any wall anchor or blocking for your specific substrate, and the station itself.
6) What is the difference between the IXG-FMK-2C7 and a surface mount box for an Aiphone tenant station?
The FMK-2C7 is the flush option: a back box that goes into the wall cavity with a frame and panel that trim it out, giving a near-flat finish in a corridor or lobby where a protruding box would get hit. A surface mount enclosure instead hangs the station on the face of the wall, which is what you use on masonry or any wall you can't cut into. Both hold the same IXG-2C7 or IXG-2C7-L station.
7) What is the Aiphone IXG-FMK-2C7 flush mount kit made of?
The visible panel is self-extinguishing resin, and the frame and back box are self-extinguishing plastic. Self-extinguishing means the material stops burning once the flame source is removed. Note that is a material property, not a fire rating on the assembly.
