Aiphone KB-3HRD - Sub Monitor ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,724.00
$1,199.46
Aiphone Aiphone KB-3HRD - Sub Monitor with Handset KB-3HRD

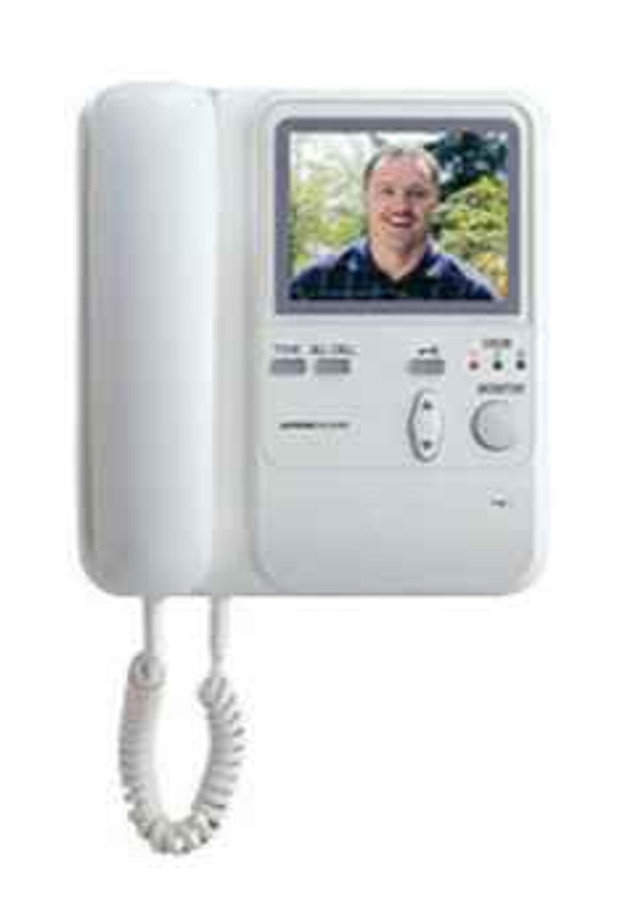

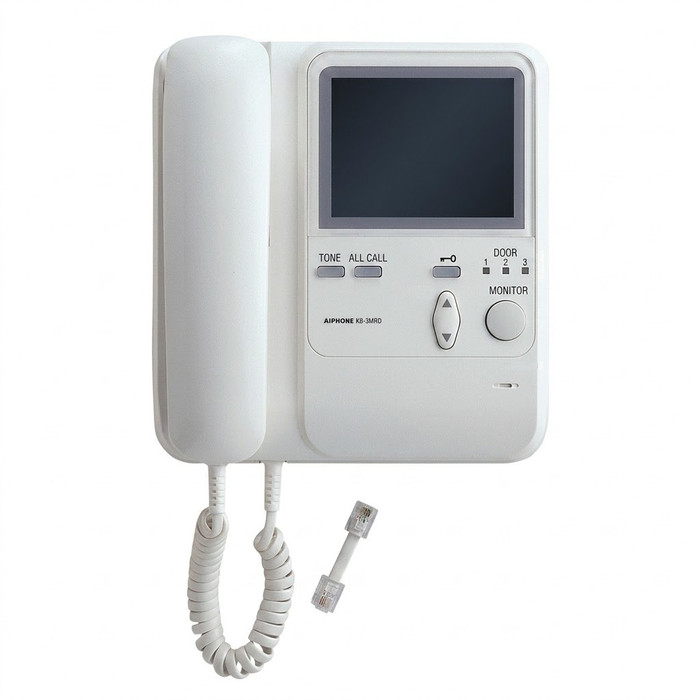

Aiphone KB-3HRD - Sub Monitor with Handset

(No reviews yet) Write a Review

Model: KB-3HRD

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,724.00
$1,199.46
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

The KB-3HRD is a sub monitor for KB-3MRD master monitor. It allows up to a maximum of 4 sub monitors per system. The KB-3HRD sub-monitor allows for the same functionality as the master.

FEATURES

  • Internal All Call
  • Chime and receiver volume control
  • Optional selective door release with RY-3DL
  • Two-way communication between inside stations
  • Video identification and monitoring with 4″ screen
  • Instant voice call-in with image
  • Built-in illumination for low light conditions
  • Selective Call
SPECS
  • Communication: Handset (full-duplex)
  • Video Display: 4" LDC screen
  • Mounting: Surface mount directly to wall or desk mount using MCW-S/A
  • Wire Type: 2-cond., mid cap, solid, non-shielded - use Aiphone #871802

Product Specs

Product Type:
Sub Master Stations
Series:
KB Series
Product Group:
Electronic Access Controls
Product Subgroup:
Intercoms
Subcategory:
Video Intercoms
Commercial/Residential:
Commercial
Electronic:
Yes
Product Category:
Electronic Access Controls
Department:
Door Hardware

Aiphone KB-3HRD – Frequently Asked Questions

1) Can the Aiphone KB-3HRD be used on its own, or does it need a master station?
The KB-3HRD is a sub monitor and won't run a system by itself. It has to be paired with a KB-3MRD master monitor. Once it's on the system it does everything the master does, including video monitoring, call-in with image, and two-way talk.
2) How many Aiphone KB-3HRD sub monitors can I add to one KB-3MRD system?
Up to four sub monitors per system. If a building needs more answering points than that, the KB system tops out and you'd need to look at a larger Aiphone platform.
3) Can the KB-3HRD sub monitor sit on a desk instead of being mounted to the wall?
Both work. It surface mounts directly to the wall out of the box, and for a desk setup you add the MCW-S/A desk mount stand, which is a separate order.
4) Can a tenant release the door from the KB-3HRD sub station?
Door release from the sub monitor is an option, not standard. Selective door release requires the RY-3DL relay module, ordered separately. Without it the sub monitor handles audio, video, and internal calling only.
5) Is the KB-3HRD a handset station or hands-free?
It's a handset station, and the handset gives full-duplex talk so both parties can speak at once without cutting each other off. Good pick where privacy at the answering point matters, such as a leasing office or a front desk.
6) How big is the screen on the Aiphone KB-3HRD, and can it see a visitor at night?
Four inch LCD display. The system includes built-in illumination for low light conditions, so a visitor at the entrance is still identifiable after dark.
7) Can staff talk between inside stations on the KB system without going through the entrance panel?
Yes. The KB-3HRD supports two-way communication between inside stations, plus Selective Call to reach one specific station and Internal All Call to page every inside station at once. Useful in a small office or a clinic where the intercom doubles as staff paging.
8) Is the Aiphone KB-3HRD rated for commercial use?
It's classed as a commercial device. Typical fits are small multi-tenant offices, clinics, and front-desk applications where a handset station is wanted at a second answering point.
9) Can I adjust how loud the KB-3HRD chime rings in a quiet office?
Yes. Both chime volume and receiver volume are adjustable at the station, so a unit in a quiet reception area can be turned down without affecting the rest of the system.
