FEATURES
- Internal All Call
- Chime and receiver volume control
- Optional selective door release with RY-3DL
- Two-way communication between inside stations
- Max. 2 per system
SPECIFICATIONS
- Communication: Handset (full-duplex)
- Mounting: Surface mount directly to wall or desk mount using MCW-S/A
- Wire Type: 2-cond., mid cap, solid, non-shielded - use Aiphone #871802
Manufacturer Resources
General Line Catalog (Full Catalog)
Product Specs
- Product Type:
- Sub Master Stations
- Series:
- KB Series
- Product Group:
- Electronic Access Controls
- Product Subgroup:
- Intercoms
- Subcategory:
- Video Intercoms
- Commercial/Residential:
- Commercial
- Electronic:
- Yes
- Product Category:
- Electronic Access Controls
- Department:
- Door Hardware
Aiphone KB-3SD – Frequently Asked Questions

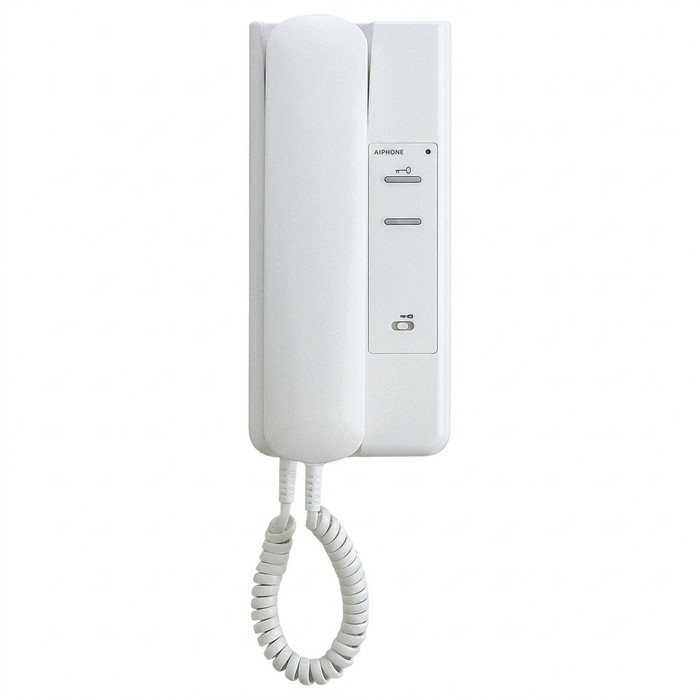

1) What does the Aiphone KB-3SD do in a KB Series intercom system?
The KB-3SD is an audio-only sub handset for the Aiphone KB Series. It gives two-way, full-duplex handset communication with the other inside stations on the system and includes an internal all call function. No video, audio only.
2) How many KB-3SD handsets can I put on one KB system?
Two. The KB-3SD is limited to a maximum of 2 per system, so if you need more inside answering points than that, plan the system around a different station mix before you order.
3) Can the KB-3SD release a door, or do I need something else?
Door release is not built in as standard. Selective door release is an option on the KB-3SD and requires the Aiphone RY-3DL relay module, which you order separately.
4) What wire do I need to run to an Aiphone KB-3SD handset?
Two conductor, mid capacitance, solid, non-shielded cable. Aiphone specifies its own #871802 wire for this station. Do not substitute shielded or stranded cable on the run.
5) Can the KB-3SD sit on a desk, or does it have to be wall mounted?
Both work. It surface mounts directly to the wall as supplied, and for a desk setup you add an Aiphone MCW-S/A desk mount. There is no flush back box option stated for this station.
6) Is the KB-3SD a master station or a sub station?
Sub station. The KB-3SD is a sub master handset that works alongside a KB Series master, not in place of it. If you need the primary answering point for the system, you need a KB master station instead.
7) Is the Aiphone KB-3SD suitable for a commercial building or is it a residential unit?
It is a commercial-rated station. Aiphone classes the KB-3SD as commercial, which is the typical fit for small office suites, back-of-house rooms, and multi-tenant service areas where staff need a handset rather than an open-voice speaker.
8) Can residents adjust how loud the KB-3SD rings?
Yes. The KB-3SD has both chime volume and receiver volume control at the station, so a noisy shop floor and a quiet office can each be set at the handset without touching the master.
