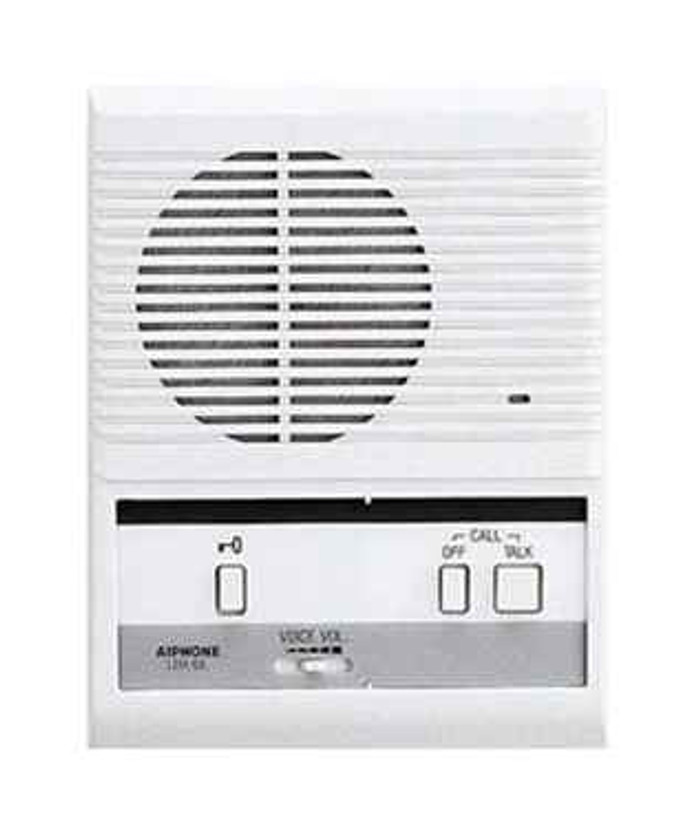

The LEM-1DLC is a compact master station able to answer a door station and activate a door strike. Up to six master stations can be used to answer the same door. The master has a TALK, OFF and door release button, as well as volume controls for voice communication and incoming call tone.
Communication is push-to-talk, release-to-listen at the master, and hands free at the door station. Any remote station compatible with the LEM or LEF series can be used. There is no master-tomaster communication. The unit can be mounted on a wall or placed on a desk or counter.
FEATURES
- Equipped to connect up to 4 master stations to answer one door station
- Provides communication to LE series door stations
- Voice volume control
- Push-to-talk communication
- Privacy LED to indicate that another master station answered the door
SPECIFICATIONS
- Power Consumption: 4W (16V AC) max., 200mA (24V DC) max.
- Output: 100mW
- Type of communication: Push-to-talk (simplex)
- Door Release Contact: N/O dry contact, 30V AC/DC 1A
- Mounting: Wall or desk mount
- Wire Type
- Door Station to Master Station: 2-cond., overall shield - use Aiphone #822202(22AWG) or #821802(18AWG)
- Between LEM-1DLC: 3-cond., overall shield - use Aiphone #822203(22AWG) or #821803(18AWG)
- Wire Distance: Door Station to Master Station: 650'(22AWG) 1,600(18AWG)
Manufacturer Resources
Product Specs
- Category:
- Electronic Access Controls
- Product Type:
- Master Stations
- Series:
- LEM-1DL Series
- Product Group:
- Electronic Access Controls
- Product Subgroup:
- Intercoms
- Subcategory:
- Audio Intercoms
- Commercial/Residential:
- Commercial
- Electronic:
- Yes
