Aiphone LEF-10S - 10-Call Mast...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$620.00
$431.06
Aiphone Aiphone LEF-10S - 10-Call Master Station with Provision for All Call LEF-10S

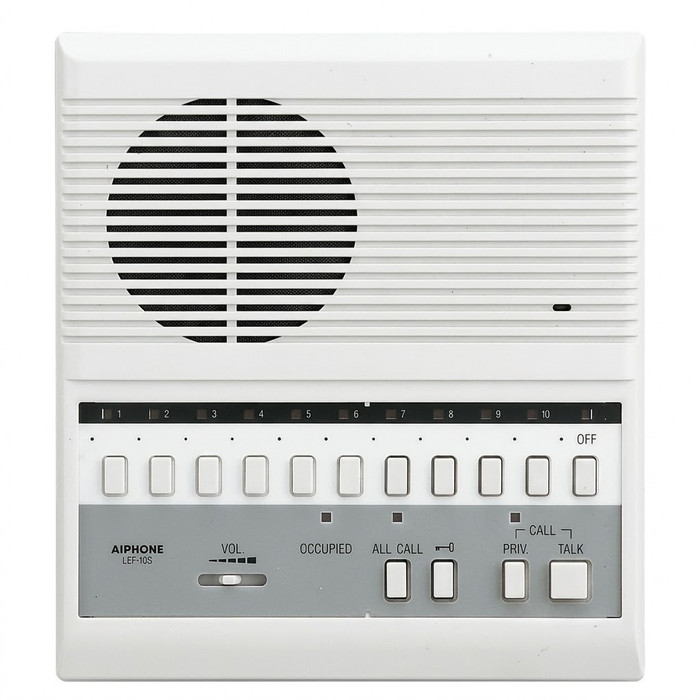

Aiphone LEF-10S - 10-Call Master Station with Provision for All Call

(No reviews yet) Write a Review

Model: LEF-10S

In Stock (leaves warehouse same day if ordered before 3pm ET)

$620.00
$431.06
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

The LEF-10S is a selective calling open voice style master station with the capacity of up to 11 total stations. The system can be designed to meet a wide variety of needs, including any combination of master and sub stations up to its maximum capacity.

Incoming calls from a sub or door station sound an electronic mono-tone and light an LED, remaining lit for approximately 20 seconds. Communication at the calling master is press-to-talk, release-to-listen. Person at the receiving station speaks hands free. The person at the master station can selectively call and talk with a person at any other sub or master station in the system. An All Call announcement can be made from the master station, heard through all stations in the system. All Call requires additional equipment. The privacy feature on the master and selected subs prevents a master from hearing sounds from a station in the privacy mode.

FEATURES
  • Provides internal communication to LEF master stations or LE door stations
  • ABS plastic housing
  • Selective door release
  • LED and call-tone indicator
SPECIFICATIONS
  • Power Consumption: 300mA
  • Type of communication: Push-to-talk (simplex)
  • Mounting: Wall or desk mount
  • Wire Type: Variable wire types
  • Wire Distance
    • Sub Station to farthest
    • Master Station: 650'(22AWG) 1,600(18AWG)
  • Dimensions: 8-1/8" H x 7-1/2" W x 2-3/16" D

Product Specs

Product Type:
Master Stations
Series:
LEF Series
Product Group:
Electronic Access Controls
Product Subgroup:
Intercoms
Subcategory:
Audio Intercoms
Commercial/Residential:
Commercial
Electronic:
Yes
Product Category:
Electronic Access Controls
Department:
Door Hardware

Aiphone LEF-10S – Frequently Asked Questions

1) How many stations can an Aiphone LEF-10S intercom system handle?
The LEF-10S master station supports up to 11 total stations in the system, which means the master plus up to 10 called stations. Those 10 can be any mix of LEF master stations and LE door stations, so a building with, say, four entry doors and six interior offices fits on one system without a second master.
2) Will the Aiphone LEF-10S work with my existing door stations?
The LEF-10S talks to Aiphone LEF series master stations and LE series door stations. If the entry units already on the building are LE door stations, the LEF-10S drops into that system. Anything outside the LEF/LE family is a different system and the data here does not cover it.
3) Can you release the door from the Aiphone LEF-10S master station?
Yes, and selectively. The LEF-10S has selective door release, so on a system with more than one LE door station the person at the master picks which door opens rather than triggering them all. That is the feature that makes it workable for a building with a front entry and a service door on the same intercom.
4) Do I need anything else to make an All Call announcement on the LEF-10S?
Yes. The LEF-10S is built with provision for All Call, an announcement from the master heard through every station in the system, but All Call requires additional equipment beyond the master itself. Budget for that on the order if building-wide paging is part of the job.
5) Does the Aiphone LEF-10S fit in the space I have on the wall or on a desk?
Measures 8-1/8 x 7-1/2 x 2-3/16 inches (H x W x D) and mounts either on the wall or sits on a desk, so the same unit works at a reception counter or surface mounted in a back office. Housing is ABS plastic.
6) Is the Aiphone LEF-10S hands free or do you have to hold a talk button?
Push-to-talk, simplex, at the master. The person at the LEF-10S presses to talk and releases to listen. Whoever is at the receiving sub or door station speaks hands free, so a visitor at the entry does not have to find a button to answer. If you need hands-free at the desk too, this is not the unit.
7) How much current does the LEF-10S draw for power supply sizing?
Power consumption is 300mA at the master. Size the system supply to cover that plus whatever the sub and door stations on the run pull, since all of them sit on the same supply.
8) Can staff stop the front desk from listening in on their office on an Aiphone LEF system?
That is what the privacy feature does. On the LEF-10S master and on selected sub stations, privacy mode blocks a master from hearing sounds at that station. Useful in tenant offices, exam rooms, or any room where an open-voice intercom would otherwise be a live microphone.
9) Should I use one LEF-10S or several masters on the same intercom system?
The LEF-10S is a selective-calling master, so it can call and talk with any other sub or master on the system one at a time. You can put more than one master on the system as long as total stations stay within 11. Two masters make sense where a lobby desk and a back office both need to answer the door; a single master with subs is the simpler build if only one point answers calls.
10) How does someone at a door station get the front desk's attention on the LEF-10S?
An incoming call from a sub or door station sounds an electronic mono-tone at the LEF-10S and lights an LED that stays lit about 20 seconds. So a missed call leaves a visible indicator for a short window, not just a tone that vanishes. There is no call log or extended hold beyond that.
11) Is the Aiphone LEF-10S rated for commercial use?
The LEF-10S is a commercial-grade master station, in an ABS plastic housing, intended for building intercom work rather than residential door answering. It is an electronic access product, so plan for a power supply and a wiring run rather than a plug-in device.
