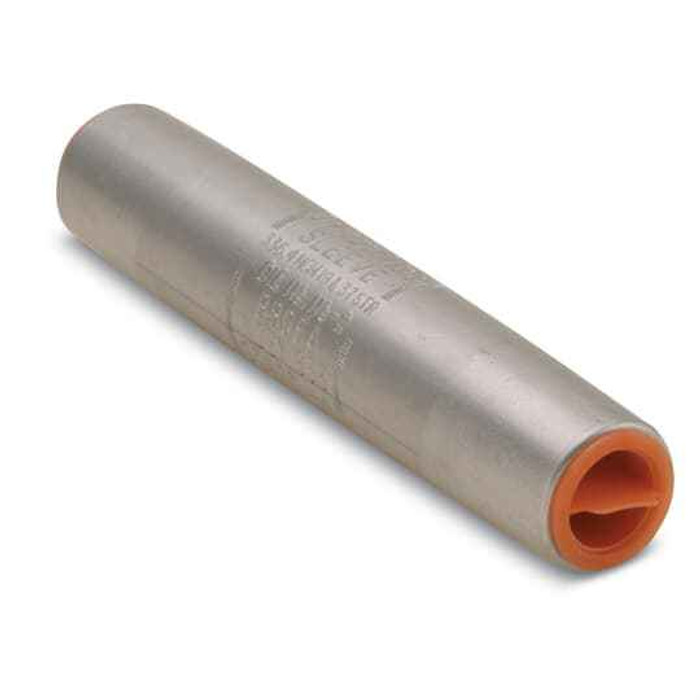

AL 4-3/4IN TENSION COMP SPLICE 2/0
Manufacturer Resources
Product Specs
- Connection Type:
- Compression
- Country Of Origin:
- Mexico (MX)
- Insulation Material:
- None
- Number Of Conductors:
- 2
- Product Group:
- Wire & Cable Management
- Product Type:
- Compression Splice
- Selling Unit Of Measure:
- each
- Standards:
- ANSI C119.4
- Type2:
- Wire or cable compression splice
- Department:
- Electrical
- Product Subgroup:
- Splices
- Product Size:
- 4-3/4 inch
- Installation Category:
- None
Blackburn ACJ205 – Frequently Asked Questions
1) What conductor size does the Blackburn ACJ205 compression splice take?
The ACJ205 is sized for 2/0 aluminum conductor, joining two conductor ends in one barrel. It is a full tension compression splice, meaning it is rated to carry the mechanical load of the conductor run, not just make an electrical connection.
2) Is the ACJ205 splice bolted or does it need a crimp tool?
It's a compression splice, so it is installed with a hydraulic or battery crimp tool and the correct die for the barrel, not with bolts or setscrews. Plan on having the press and die on the truck before the pull.
3) Does the Blackburn ACJ205 meet a connector standard for utility work?
It is built to ANSI C119.4, the standard covering electric connectors for use between aluminum or copper conductors. That is the spec typically called out on utility and distribution drawings for compression splices.
4) How long is the Blackburn ACJ205 splice barrel?
4-3/4 inches overall. That length matters when you are splicing in a limited space such as a handhole or a tight pole window, and it also tells you how much conductor insulation has to come off at each end for full insertion.
5) Is the ACJ205 splice insulated, or do I need to cover it after crimping?
Bare metal, no insulation on the splice itself. Any covering, tape, heat shrink, or cover required for the application has to be supplied separately.
6) Can I use an aluminum compression splice like the ACJ205 on copper conductor?
The ACJ205 is an aluminum-bodied splice specified for 2/0 aluminum. For a copper run, or for joining copper to aluminum, use a splice rated for that combination rather than this one.
7) Is the Blackburn ACJ205 sold individually or in a bag?
Sold each, one splice per unit, so you can order the exact count for the number of joints in the run.
8) What is the part number and country of origin on the Blackburn 2/0 tension splice?
Manufacturer part number ACJ205 from Blackburn, made in Mexico. That MPN is what to quote on a submittal or a reorder.
