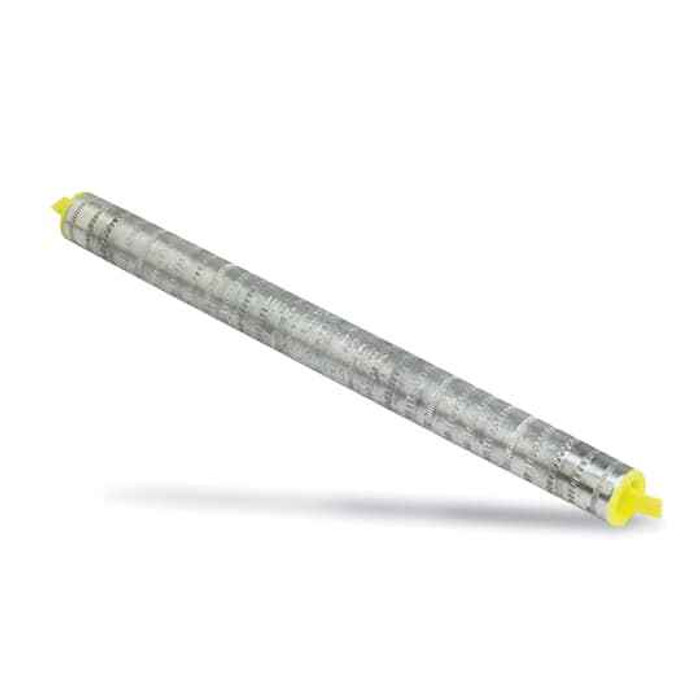

AL 9-1/4IN TENSION COMP SPLICE 2/0
Manufacturer Resources
Product Specs
- Connection Type:
- Compression
- Country Of Origin:
- Mexico (MX)
- Insulation Material:
- None
- Number Of Conductors:
- 2
- Product Group:
- Wire & Cable Management
- Product Type:
- Compression Splice
- Selling Unit Of Measure:
- each
- Standards:
- ANSI C119.4
- Type2:
- Wire or cable compression splice
- Department:
- Electrical
- Product Subgroup:
- Splices
- Product Size:
- 9-1/4 inch
- Installation Category:
- None
Blackburn AC205 – Frequently Asked Questions
1) Is the AC205 a full tension splice suitable for overhead line spans?
Yes. It's a full tension compression splice, meaning it's built to carry the mechanical pull of the conductor as well as the current, which is what an overhead span between poles requires. A non-tension or dead-end style connector is the wrong choice where the splice has to hold line tension.
2) Can I install the Blackburn AC205 with a wrench, or do I need a hydraulic crimper?
It's a compression connector, so it's installed with a hydraulic or battery compression tool and the correct die, not tightened with a wrench. If you want a bolted mechanical splice you can torque with hand tools, the AC205 is not it.
3) Will the Blackburn AC205 splice copper conductor?
The AC205 is an aluminum-bodied splice made for aluminum conductor. It's listed to ANSI C119.4, which is the aluminum and copper connector standard, but the sizing here is 2/0 aluminum. For a copper-to-copper or copper-to-aluminum joint, order a connector rated for that combination rather than assuming this one covers it.
4) Does the Blackburn AC205 splice meet ANSI C119.4?
Yes, the AC205 is built to ANSI C119.4, the standard covering connectors for use between aluminum and copper conductors in underground and overhead distribution. That's the spec most utility and commercial drawings call out for a splice like this.
5) How long is the AC205 splice body, and how much room do I need on the conductor?
The barrel measures 9-1/4 inches, so plan for at least that much clear length on the run plus room to bring the compression tool head onto each crimp position. Tight vault or box work is where that length usually causes trouble.
6) Is the Blackburn AC205 insulated, and does it need taping or a cover after crimping?
It's a bare aluminum splice with no insulation on the body, so any insulating or covering is done in the field with tape, a shrink sleeve, or a cover kit depending on your spec. Nothing insulating comes on the connector itself.
7) How is the AC205 sold, individually or in a box?
Each. One splice per unit ordered, so count your joints and order that quantity.
8) What is the exact part number and country of origin on the AC205?
Blackburn part number AC205, manufactured in Mexico. That's the number to quote on a submittal or a reorder.
