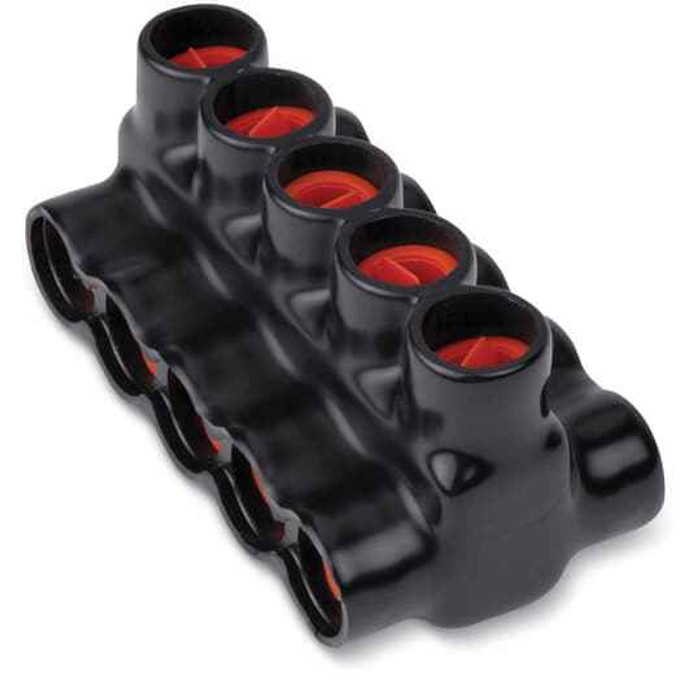

AL MULTI BOTHSIDE CONN 5PORT 350-10
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Product Group:
- Wire & Cable Management
- Product Type:
- Multi-Tap/Port Connector
- Selling Unit Of Measure:
- each
- Standards:
- UL E9809, CSA 6591
- Type2:
- Electrical taps
- Voltage Rating:
- 600 V
- Department:
- Electrical
- Product Subgroup:
- Connectors
- Product Color:
- Black
- Product Material:
- Aluminum
Blackburn AMTD350105 – Frequently Asked Questions
1) What conductor range does the Blackburn AMTD350105 multi-tap connector accept?
The AMTD350105 is a 5-port, both-side aluminum multi-tap connector covering a 350 kcmil to #10 range per its model designation (350-10). Ports are on both sides of the body, so you can land runs entering from either direction rather than looping conductors around to a single face.
2) Can I use this Blackburn multi-tap connector on copper conductors, or aluminum only?
The AMTD350105 body is aluminum, and Blackburn AMT-style aluminum multi-tap connectors are the dual-rated AL9CU type used for both aluminum and copper conductors. If your installation requires a copper-only listed connector, specify a tin-plated copper body block instead.
3) Is the Blackburn AMTD350105 rated for 600 volt service work?
Yes. It carries a 600 V rating, which covers standard commercial and industrial feeder and branch-circuit work up to 600 volts. For medium-voltage taps you need a different class of connector entirely.
4) Is this Blackburn 5-port tap connector UL listed for inspection sign-off?
It is covered under UL file E9809 and CSA 6591, so it satisfies the listed-connector requirement inspectors look for on tap and splice blocks in panels, gutters, and junction boxes.
5) Does the AMTD350105 come insulated, or do I need to cover it after landing conductors?
The AMTD350105 is a bare mechanical tap block. Blackburn's AMT series ships with a snap-on insulating cover as the separate D-series accessory, so in a gutter or enclosure where energized parts must be guarded, plan on a cover or taping/boot per your spec.
6) Should I use a multi-tap block like this or separate split-bolt connectors for a feeder tap?
A 5-port both-side block like the AMTD350105 is the right call when you are breaking one large feeder out to several smaller circuits in a gutter or panel: one block handles all five conductors, and both-side entry keeps the wire bends manageable. Split bolts are one-to-one and force a separate taped splice per tap, which eats gutter space fast. For a single splice on one run, the split bolt is simpler.
7) How is the AMTD350105 sold, and do I get more than one block?
Sold as each, so one order line is one 5-port connector body. Count your tap points per phase, plus neutral and any grounded conductor block, and order accordingly.
8) Where is the Blackburn AMTD350105 made?
Country of origin is the United States, which matters if your job carries a domestic-content or Buy American requirement on electrical materials.
