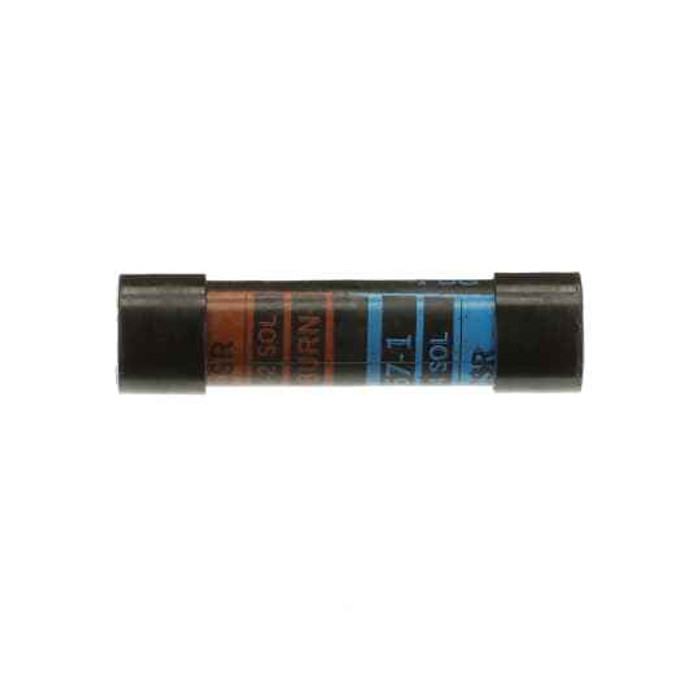

AL SERV ENTR SPLICE A:2SLD B:4SLD
Manufacturer Resources
Product Specs
- Connection Type:
- Compression
- Country Of Origin:
- Mexico (MX)
- Insulation Material:
- Yes
- Number Of Conductors:
- 2
- Product Group:
- Wire & Cable Management
- Product Type:
- Compression Splice Service Entrance
- Selling Unit Of Measure:
- each
- Standards:
- RUS Accepted. Complies with ANSI C119.4 when properly installed on Aluminum-to-Aluminum or Aluminum-to-Copper Conductors.
- Type2:
- Wire or cable compression splice
- Department:
- Electrical
- Product Subgroup:
- Splices
- Product Size:
- 2-25/32 inch
- Installation Category:
- None
Blackburn ICS67-1 – Frequently Asked Questions
1) What wire sizes does the Blackburn ICS67-1 service entrance splice take on each end?
The ICS67-1 is a two-conductor insulated compression splice with different sizes on each side: side A takes 2 solid, side B takes 4 solid. It joins two runs, one per port, so both legs of a service entrance drop are spliced with two of them.
2) Can I use this Blackburn splice to connect aluminum service entrance wire to copper?
Yes. The ICS67-1 complies with ANSI C119.4 when properly installed on aluminum-to-aluminum or aluminum-to-copper conductors, so a dissimilar-metal splice is within its listed use. It is also RUS accepted for utility work.
3) Will the ICS67-1 work on stranded service entrance cable?
The port sizing on this one is called out for solid conductor, 2 solid on side A and 4 solid on side B. For stranded runs, look to a Blackburn insulated compression splice rated for the stranded size you have rather than forcing this barrel onto it.
4) Is the ICS67-1 insulated, or do I have to tape the splice afterward?
It comes insulated, so no separate cover or tape wrap is needed over the barrel once it is crimped. That is what makes it suited to overhead service entrance and drop splices where the connection sits exposed.
5) Does this splice crimp or does it use setscrews?
Crimp. The ICS67-1 is a compression connector, so you need the matching die and a hydraulic or battery crimper rather than a hex key. There is no mechanical setscrew option on this part.
6) How long is the Blackburn ICS67-1 splice body?
Product size is 2-25/32 inch. Worth knowing before you commit, because a compression splice needs straight, unstressed conductor either side of the barrel plus clearance for the crimp tool head.
7) Is the ICS67-1 sold individually or in a bag?
Sold each. Since a single-phase service drop splice needs one per conductor, order by the number of conductors you are splicing, not by the number of services.
8) Where is the Blackburn ICS67-1 made, and what is the part number I should order by?
Order by manufacturer part number ICS67-1, Blackburn brand. Country of origin is Mexico.
