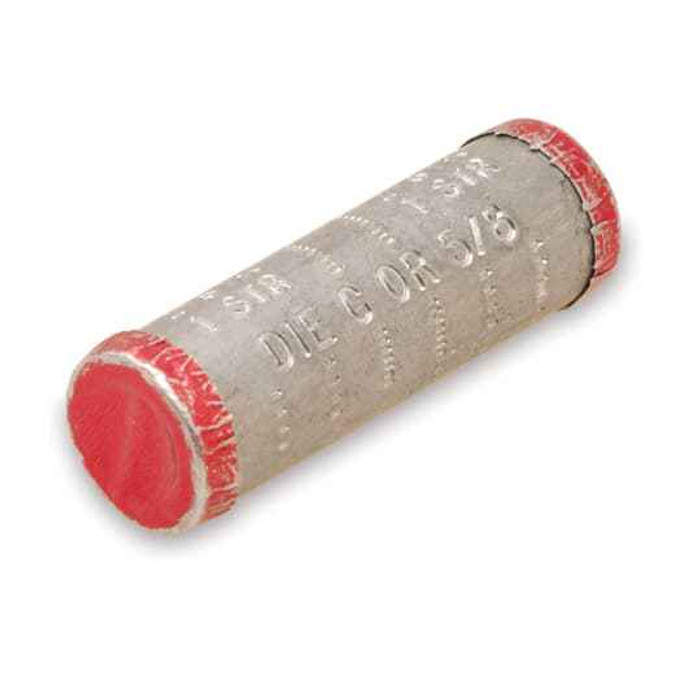

AL SERVENTR COMP SPLICE A:6 B:8
Manufacturer Resources
Product Specs
- Connection Type:
- Compression
- Country Of Origin:
- Mexico (MX)
- Insulation Material:
- None
- Number Of Conductors:
- 2
- Product Group:
- Wire & Cable Management
- Product Type:
- Compression Splice Service Entrance
- Selling Unit Of Measure:
- each
- Standards:
- RUS Accepted. Complies with ANSI C119.4 when properly installed on Aluminum-to-Aluminum or Aluminum-to-Copper Conductors.
- Type2:
- Wire or cable compression splice
- Department:
- Electrical
- Product Subgroup:
- Splices
- Product Size:
- 2 Inch
- Installation Category:
- None
Blackburn CS63 – Frequently Asked Questions
1) Can the Blackburn CS63 splice be used to join aluminum to copper conductors?
Yes. The CS63 compression splice complies with ANSI C119.4 when properly installed on aluminum-to-aluminum or aluminum-to-copper conductors, so it handles both same-metal and dissimilar-metal service entrance joints. It is also RUS accepted, which matters on rural utility funded work.
2) What conductor sizes does the Blackburn CS63 service entrance splice take?
The CS63 is a two-conductor splice sized A:6 and B:8, meaning one barrel takes 6 AWG and the other takes 8 AWG. It is a reducing splice, so do not order it if both runs are the same gauge.
3) Does the Blackburn CS63 splice come insulated, or do I need to cover it after crimping?
It ships bare. The insulation material on the CS63 is listed as none, so the joint has to be insulated in the field with tape or a suitable cover, or installed inside an enclosure where an uninsulated connection is acceptable.
4) Is the CS63 a crimp connector or a set screw connector?
Crimp. The CS63 is a compression splice, so it needs a hydraulic or battery compression tool with the correct die for the barrel, not a screwdriver or hex key. If you want a tool-light install, a mechanical set screw splice is the alternative type to look at.
5) Is the Blackburn CS63 sold individually or in a bag?
Individually. The CS63 splice is sold each, so order one per joint you are making.
6) Where is the Blackburn CS63 splice made?
Mexico. Country of origin on the CS63 is listed as Mexico, which is the detail procurement groups usually want for supplier documentation.
