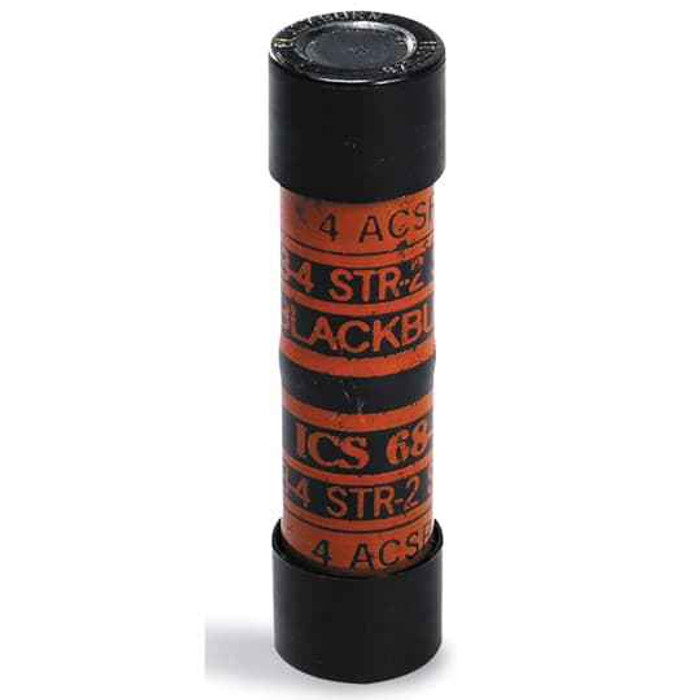

AL SERVENTR SPLICE A:1-2STRN B:6SLD
Manufacturer Resources
Product Specs
- Connection Type:
- Compression
- Country Of Origin:
- Mexico (MX)
- Insulation Material:
- Yes
- Number Of Conductors:
- 2
- Product Group:
- Wire & Cable Management
- Product Type:
- Compression Splice Service Entrance
- Selling Unit Of Measure:
- each
- Standards:
- RUS Accepted. Complies with ANSI C119.4 when properly installed on Aluminum-to-Aluminum or Aluminum-to-Copper Conductors.
- Type2:
- Wire or cable compression splice
- Department:
- Electrical
- Product Subgroup:
- Splices
- Product Size:
- 2-25/32 inch
- Installation Category:
- None
Blackburn ICS70-1 – Frequently Asked Questions
1) What wire sizes does the Blackburn ICS70-1 service entrance splice take?
The ICS70-1 is a two-conductor splice with an A side sized for 1 through 2 AWG stranded conductor and a B side sized for 6 AWG solid. It joins one run to the other in a single compression body, so the two ends are not interchangeable: put the larger stranded conductor in the A port and the 6 solid in the B port.
2) Can I use an aluminum service entrance splice on a copper conductor?
Yes. The ICS70-1 complies with ANSI C119.4 when properly installed on aluminum-to-aluminum or aluminum-to-copper conductors, so it is rated for a mixed AL/CU splice as well as all-aluminum. It is also RUS accepted, which matters on utility and rural electrification work.
3) Does the Blackburn ICS70-1 need a special tool to install?
It is a compression connector, so it has to be crimped with a compression tool and the correct die, not tightened with a wrench. Nothing threads or bolts on. Plan the die and tool into the job, since they do not come with the splice.
4) Is the ICS70-1 splice insulated, or do I have to tape it up?
The ICS70-1 comes insulated, so a separate sleeve or tape wrap is not part of the connector itself. Confirm it suits the enclosure or environment you are terminating in before you close the can.
5) How long is the Blackburn ICS70-1 splice body, and will it fit in a meter socket?
The splice measures 2-25/32 inches, so allow roughly that much straight length plus conductor bend radius in the gutter or meter socket. On tight service entrance boxes that dimension is the one to check before you cut the wire.
6) Is the ICS70-1 sold individually or in a bag?
It is sold each, one splice per unit, under manufacturer part number ICS70-1. Order by the count of service splices you actually need on the job.
