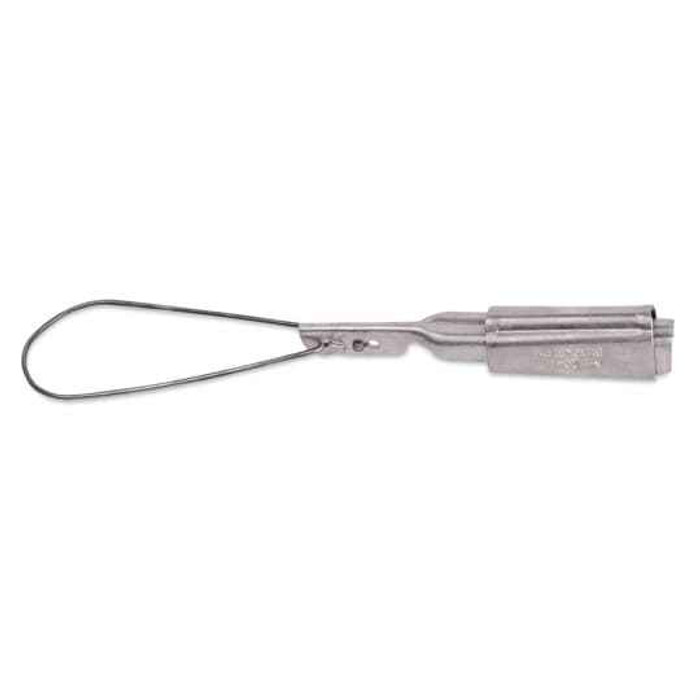

AL SERVENTR WDGE CLAMP/SLDR 6-2 F
Manufacturer Resources
Product Specs
- Connection Type:
- Tension
- Country Of Origin:
- Mexico (MX)
- Insulation Material:
- None
- Number Of Conductors:
- 1
- Product Group:
- Wire & Cable Management
- Product Type:
- Aluminum Service Wedge Clamp
- Selling Unit Of Measure:
- each
- Surface Finishing:
- Bare
- Type2:
- Cable gland connector
- Voltage Rating:
- 35 kV
- Department:
- Electrical
- Product Subgroup:
- Connectors
- Product Size:
- Length 12-1/2 in X Depth Flexible
- Installation Category:
- Yes
- Product Material:
- Aluminum
Blackburn W62-1FC – Frequently Asked Questions
1) What conductor sizes does the Blackburn W62-1FC wedge clamp take?
The W62-1FC is the 6-2 range service entrance wedge connector, meaning it handles a run/main and tap in the 6 AWG through 2 AWG range as called out in the product name. It is a single-conductor tap connector, so one tap per clamp.
2) What voltage is the Blackburn W62-1FC wedge connector rated for?
Rated to 35 kV, so it covers residential and commercial service entrance work as well as medium voltage distribution taps. It ships bare with no insulation on the connector itself, so any required insulating or covering is done in the field.
3) Can I use an aluminum wedge clamp on copper service entrance conductors?
The W62-1FC body is aluminum with a bare finish, which is the standard construction for AL/CU service entrance wedge connectors on overhead drops and services. Aluminum-bodied wedge connectors used on copper require the oxide-inhibiting compound the clamp is supplied with, and the wedge must be driven fully to seat both conductors.
4) How does a wedge clamp connector hold the conductors, and is it reusable?
It is a tension connection: the C-shaped body and driven wedge squeeze the run and tap together mechanically, no bolt or torque wrench. Wedge connectors are driven with a powder or hydraulic tool and are generally treated as a permanent, one-shot connection rather than a re-openable clamp.
5) How long is the W62-1FC clamp, and will it fit a tight drip loop?
Overall length runs 12-1/2 inches with a flexible depth, so it takes up a fair span along the conductor. On a short drip loop or a crowded weatherhead, lay it out before driving the wedge, because once seated you are not repositioning it.
6) Is the Blackburn W62-1FC sold individually or in a box?
Sold each, so order one per tap you are making. For a three-phase service drop plus neutral, count your taps accordingly.
7) What is the exact manufacturer part number for this Blackburn service entrance wedge clamp?
Blackburn part number W62-1FC. It is the aluminum service entrance wedge clamp covering 6 through 2 AWG, made in Mexico.
