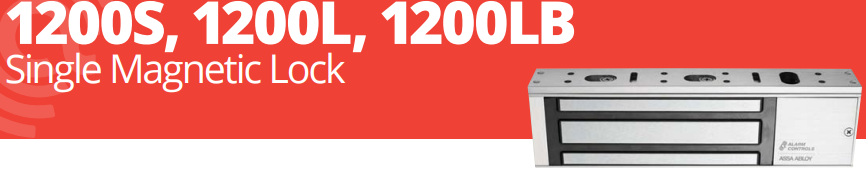

Alarm Controls 1200 Series Magnetic Locks
Features
Standard Features
• 1200S Standard magnetic lock
• 1200L Magnetic lock with indicating LED
• 1200LB Magnetic lock with indicating LED, bond sensor and door status sensor
• Built-in arc suppression
• Instant release, no hysteresis
• Self-drilling TEC screws
• Non-aluminum parts are plated to resist corrosion
• E-Z mount header bracket and template provided for easy installation
• Can be used with any access control system
• Clear anodized (US28) finish standard
• Limited lifetime warranty
Options
• DURO Duranodic finish(US 40) available, specify when ordering.
Holding Force
• 1200 lbs
Dimensions
• Magnet size: 10-1/2" L x 2-7/8" H x 1-1/2" W
• Armature size: 7-1/4" L x 2-3/8" H x 5/8" W
Electrical
• 12 or 24 VDC, field selectable
• Current draw: 505 mA at 12 VDC, 260 mA at 24 VDC
• 1200LB bond sensor has
SPDT 3A relay contacts
Operating Temperature
• +14 to +131F [-10 to +55C]
