Alarm Controls Desktop Consoles

Alarm Controls Desktop Consoles

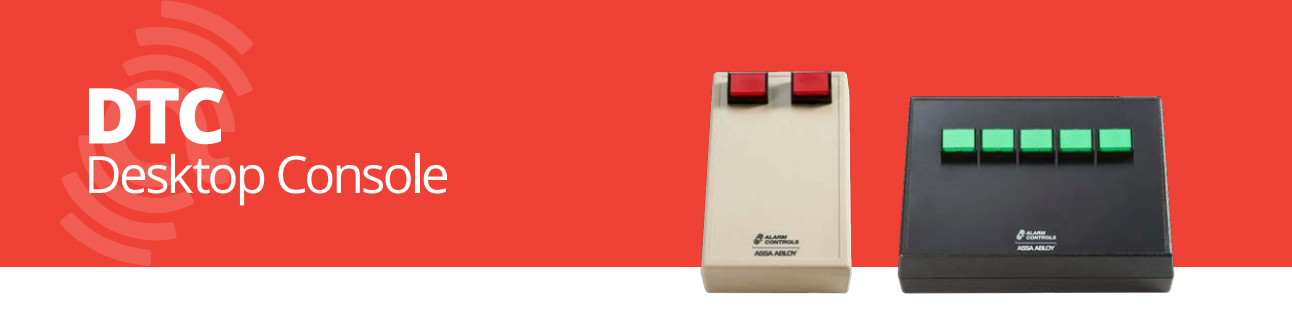

Desktop Console with single or multiple switch configurations. Choose between momentary action switches that remain active as long as they’re depressed or alternate action switches that alternate between open (disconnected) and closed (connected) each time they’re pressed. Designed to work with door status or lock status sensors in order to supervise and control several entry points from one main location.

Features

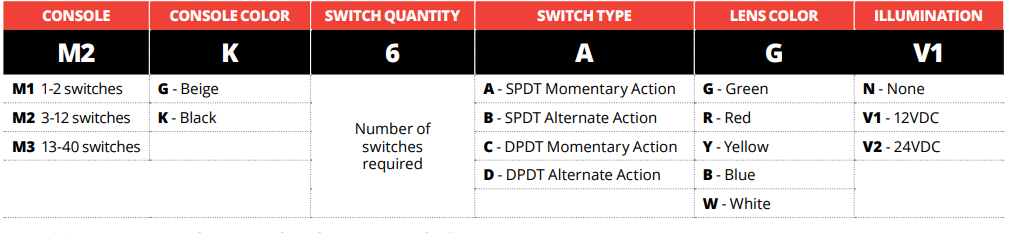

Configurable Options
• M1 with 1-2 switches, specify number of switches when ordering
• M2 with 3-12 switches, specify number of switches when ordering
• M3 with 13-40 switches, specify number of switches when ordering
• Console: specify G (beige) or K (black)
• Switch type, specify: SPDT/DPDT, momentary/ alternate
• Lens color: green, red, yellow, blue, white

• Illumination: None, 12 VDC, 24 VDC
• Button labels available as a custom part

Console Dimensions
• M1: 3-3/10"W x 5-7/10"L x 1-1/2"H
• M2: 6-9/10"W x 9-2/5”L x 2-1/2"H
• M3: 14"W x 8-3/10" x 3” (rear)/1-1/2” (front) Switch Dimensions
• 5/8" x 7/8"

Electrical
• LED current draw: 9mA nominal
• Contact rated 3A at 24 VDC
• Switches terminated in 22AWG colored 12" leads
− Common: white
− N/C: red
− N/O: blue
− LED+: Yellow
− LED-: Black

Resources:

• Alarm Controls DTC Desk Top Console Catalog Page
